ID
1393770
$ 17.13
1-2 weeks delivery time
Item:
- 1 pcs
- 10 pcs
SeaSure 00.03 is a compact 25 mm single Mini block built with marine-grade stainless steel side plates and rivets and a hard-wearing black plastic sheave. It uses a simple plain bearing, accepts ropes up to 8 mm in diameter and has 5 mm fixing holes. The block provides a 500 kg breaking load (MBS) and a 250 kg SWL, making it suitable for compact marine and general pulley applications.
- Description
- Ask a Question
-

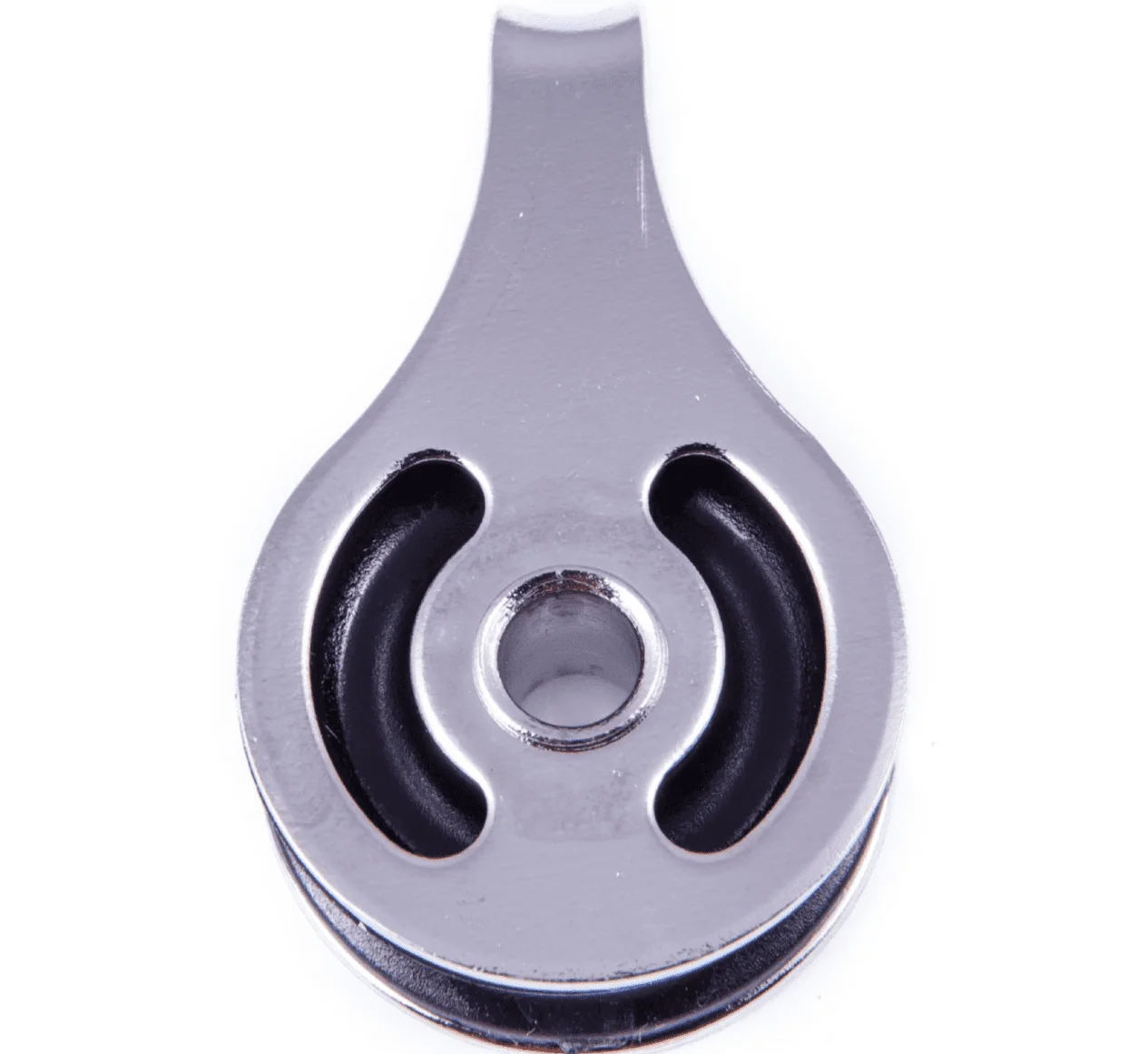

SeaSure 00.03 25 mm Plain Bearing Single Mini Block
SeaSure 00.03 is a compact 25 mm single block from the SeaSure Mini range. It is manufactured with marine-grade stainless steel side plates and rivets and uses a hard-wearing black plastic sheave.
The block features a simple plain bearing and is suitable for ropes up to 8 mm in diameter. The fixing holes are 5 mm in diameter.
The SeaSure 00.03 has a maximum breaking strength (MBS) of 500 kg and a safe working load (SWL) of 250 kg. The 25 mm plain bearing block range can be used in pulley systems for lifting, garage door mechanisms and storage solutions.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.03
- Product type: Single mini block
- Series: Mini
- Block type: Fixed
- Sheave size: 25 mm
- Sheave material: Black plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Simple / plain bearing
- Maximum rope diameter: 8 mm
- Fixing hole diameter: 5 mm
- Number of sheaves: 1
- MBS / breaking load: 500 kg
- SWL: 250 kg
- Swivel: No
- Ratchet: No
- Colour: Stainless steel
Typical Applications
- Marine pulley systems
- Lifting systems
- Garage door mechanisms
- Storage solutions
Technical Specifications
Parameter Specification Manufacturer Article 00.03 Series Mini Block Type Fixed Size 25 mm Maximum Rope Diameter 8 mm Fixing Hole Diameter 5 mm Number of Sheaves 1 Bearing Simple / plain bearing MBS / Breaking Load 500 kg SWL 250 kg Swivel No Ratchet No Colour Stainless steel -
