SeaSure 00.01 is a 25 mm bolt-down mini block with marine-grade stainless steel side plates and rivets and a hard-wearing plastic sheave. The block uses a simple plain bearing and is suitable for ropes up to 8 mm in diameter. It has 5 mm diameter fixing holes, an MBS / breaking load of 500 kg and an SWL of 250 kg. The compact fixed-mount design is part of SeaSure’s Mini series and can be used in pulley systems for lifting, garage door mechanisms and storage solutions.
- Description
- Ask a Question
-

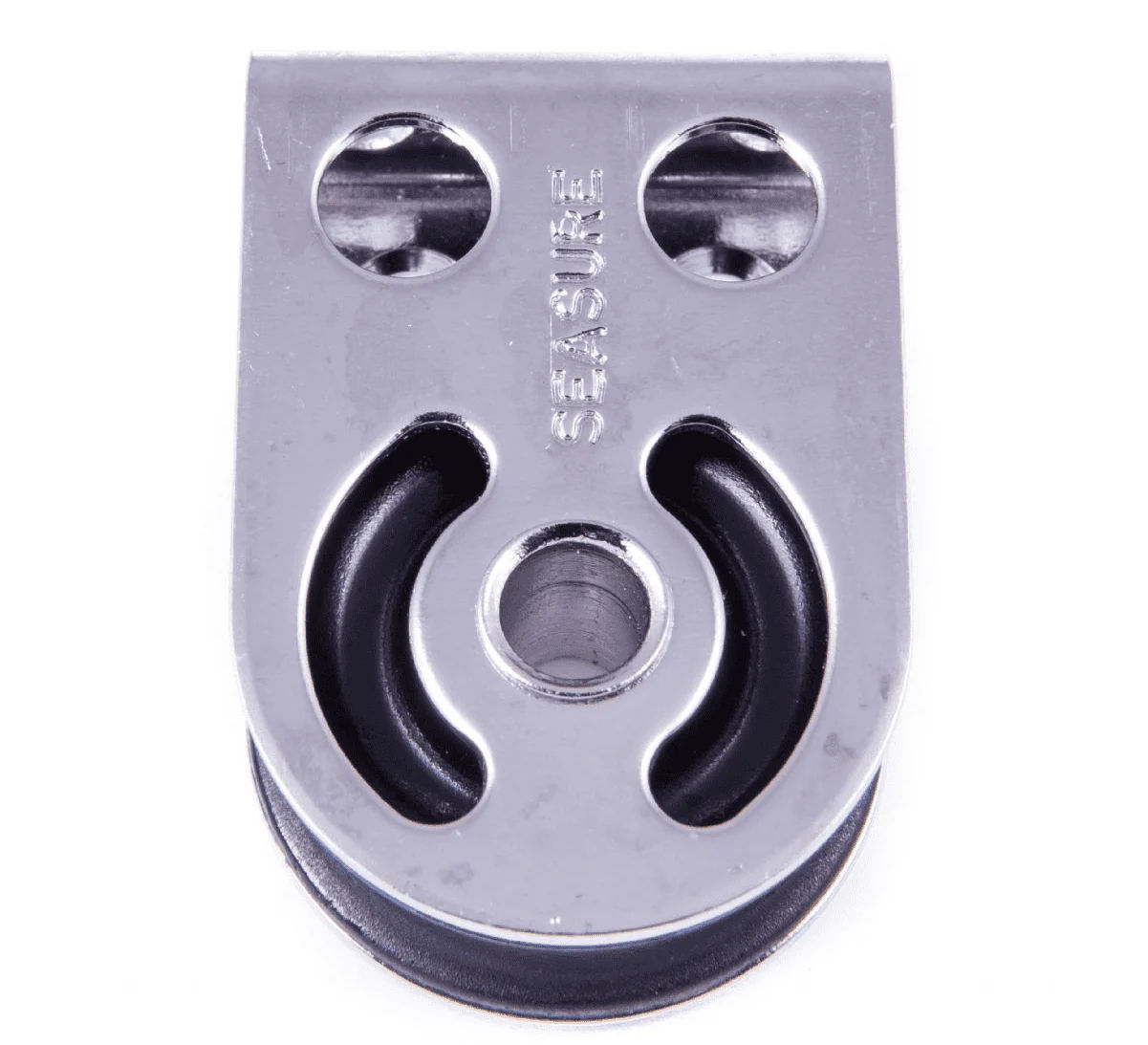

SeaSure 00.01 25 mm Plain Bearing Bolt Down Mini Block
SeaSure 00.01 is a 25 mm bolt-down mini block from the SeaSure Mini series. It uses marine-grade stainless steel side plates and rivets together with a hard-wearing plastic sheave, providing a compact construction for applications requiring a fixed pulley block.
The block is equipped with a simple plain bearing and is suitable for ropes up to 8 mm in diameter. Two 5 mm diameter fixing holes allow the block to be bolted down to the mounting surface.
The SeaSure 00.01 has a maximum breaking strength (MBS) of 500 kg and a safe working load (SWL) of 250 kg. SeaSure identifies this 25 mm block range for use in pulley systems including lifting applications, garage door mechanisms and storage solutions.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.01
- Product type: Bolt down mini block
- Series: Mini
- Sheave size: 25 mm
- Sheave material: Plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Simple / plain bearing
- Maximum rope diameter: 8 mm
- Fixing hole diameter: 5 mm
- Number of sheaves: 1
- MBS / breaking load: 500 kg
- SWL: 250 kg
- Swivel: No
- Ratchet: No
- Clamp: No
- Colour: Stainless steel
Typical Applications
- Pulley systems for lifting
- Garage door mechanisms
- Storage solutions
Technical Specifications
Parameter Specification Manufacturer Article 00.01 Series Mini Sheave Size 25 mm Maximum Rope Diameter 8 mm Fixing Hole Diameter 5 mm Number of Sheaves 1 Bearing Simple / plain bearing MBS / Breaking Load 500 kg SWL 250 kg Swivel No Ratchet No Clamp No Colour Stainless steel -
