ID
1393781
$ 277.35
1-2 weeks delivery time
-
+

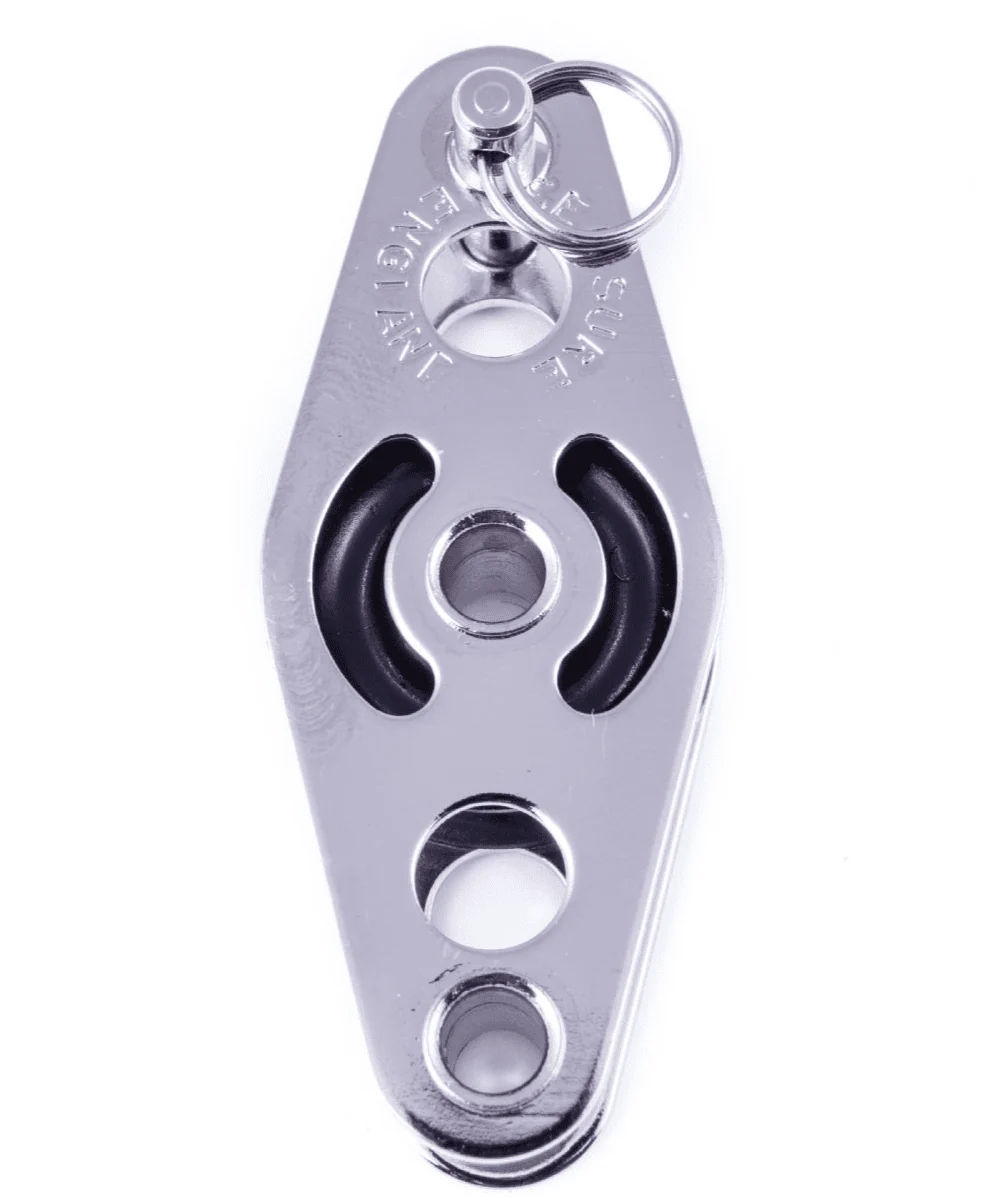

SeaSure 00.11 is a 25 mm single Mini block with a becket at one end and a clevis pin attachment at the other. It is built with marine-grade stainless steel side plates and rivets and a hard-wearing plastic sheave. The block accepts ropes up to 8 mm and has an MBS / breaking load of 500 kg with an SWL of 250 kg. The becket allows the block to form part of a purchase system, while the clevis pin provides a removable attachment to a fixing point.
- Description
- Ask a Question
-
SeaSure 00.11 25 mm Plain Bearing Single Mini Block with Becket and Clevis Pin
SeaSure 00.11 is a 25 mm single block from the SeaSure Mini plain bearing range. It is manufactured with marine-grade stainless steel side plates and rivets and uses a hard-wearing plastic sheave.
The block is suitable for ropes up to 8 mm in diameter and uses a simple plain bearing. It has a maximum breaking strength (MBS) of 500 kg and a safe working load (SWL) of 250 kg.
The SeaSure 00.11 features a becket at one end and a clevis pin attachment at the other. The becket can be used to create a purchase system, while the clevis pin allows the block to be easily attached to and removed from a fixing point.
The SeaSure 25 mm plain bearing block range can be used in marine and industrial pulley systems, including lifting systems, garage door mechanisms and storage solutions.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.11
- Product type: Single Mini block with becket and clevis pin
- Series: Mini
- Block type: Pin
- Sheave size: 25 mm
- Sheave material: Plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Simple / plain bearing
- Maximum rope diameter: 8 mm
- Number of sheaves: 1
- Becket: Yes
- Attachment type: Clevis pin
- MBS / breaking load: 500 kg
- SWL: 250 kg
- Swivel: No
- Ratchet: No
- Clamp: No
- Colour: Stainless steel
Typical Applications
- Purchase systems
- Marine pulley systems
- Industrial pulley systems
- Lifting systems
- Garage door mechanisms
- Storage solutions
Technical Specifications
Parameter Specification Manufacturer Article 00.11 Series Mini Block Type Pin Size 25 mm Maximum Rope Diameter 8 mm Number of Sheaves 1 Bearing Simple / plain bearing Becket Yes Attachment Clevis pin MBS / Breaking Load 500 kg SWL 250 kg Swivel No Ratchet No Clamp No Colour Stainless steel -
