ID
1393779
$ 260.38
1-2 weeks delivery time
-
+

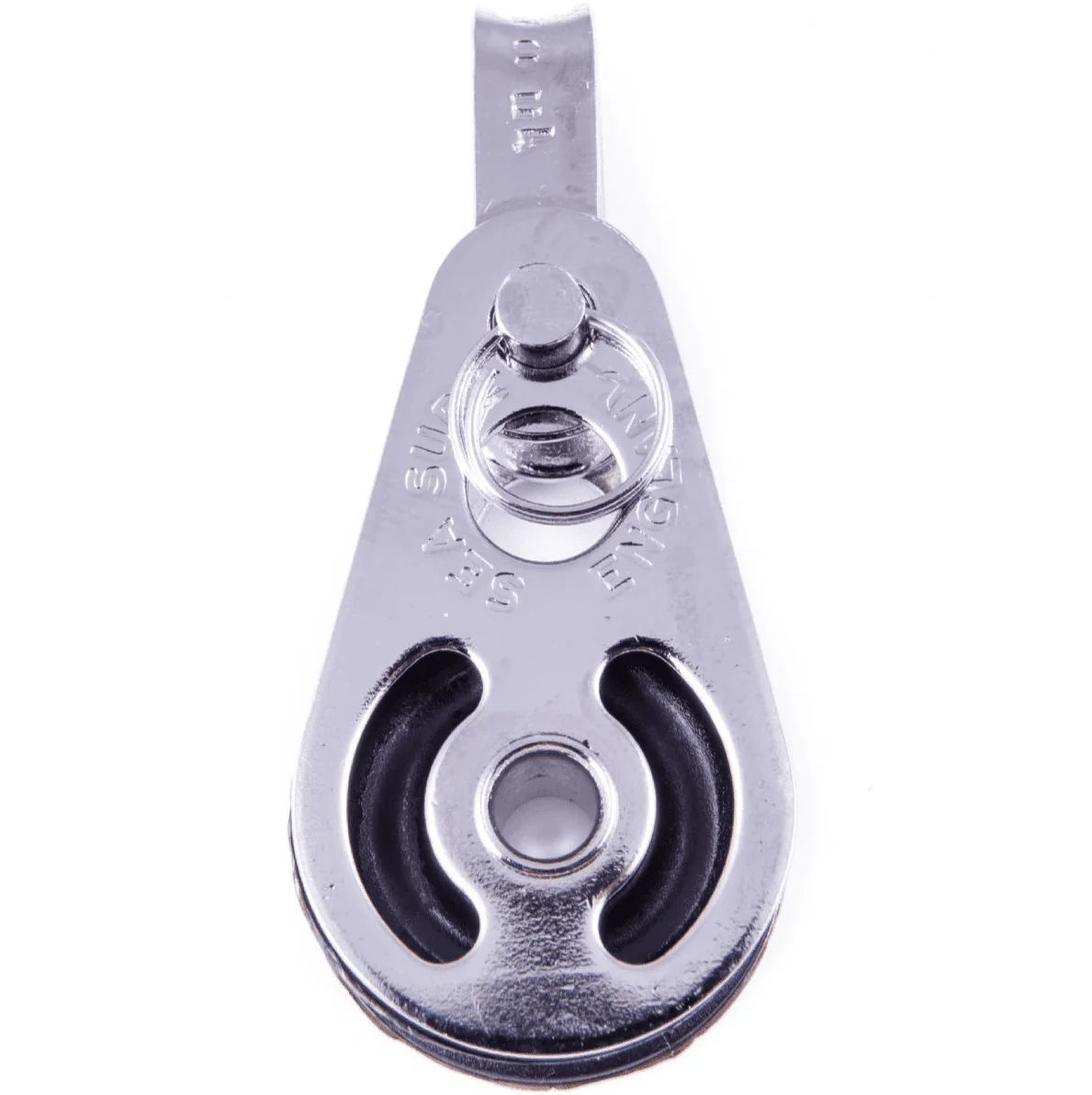

SeaSure 00.08 is a 25 mm single Mini block with shackle attachment, manufactured with marine-grade stainless steel side plates and rivets and a hard-wearing black plastic sheave. It uses a simple plain bearing, accepts ropes up to 8 mm and has an MBS / breaking load of 500 kg with an SWL of 250 kg. The shackle attachment allows the block to be connected quickly and easily to a suitable attachment point, while the compact design suits both marine and industrial pulley applications.
- Description
- Ask a Question
-
SeaSure 00.08 25 mm Plain Bearing Single Mini Block with Shackle
SeaSure 00.08 is a 25 mm single block from the SeaSure Mini plain bearing range. It is manufactured with marine-grade stainless steel side plates and rivets and uses a hard-wearing black plastic sheave.
The block is suitable for ropes up to 8 mm in diameter and is equipped with a simple plain bearing. It has a maximum breaking strength (MBS) of 500 kg and a safe working load (SWL) of 250 kg.
The SeaSure 00.08 features a shackle attachment on the top so the block can be connected to a suitable attachment point quickly and easily. The 25 mm block range can be used in marine and industrial pulley systems, including lifting systems, garage door mechanisms and storage solutions.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.08
- Product type: Single Mini block with shackle
- Series: Mini
- Block type: D-lock
- Sheave size: 25 mm
- Sheave material: Black plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Pin: Hollow
- Bearing type: Simple / plain bearing
- Attachment type: Shackle
- Maximum rope diameter: 8 mm
- Number of sheaves: 1
- MBS / breaking load: 500 kg
- SWL: 250 kg
- Swivel: No
- Ratchet: No
- Clamp: No
- Colour: Stainless steel
Typical Applications
- Marine pulley systems
- Industrial pulley systems
- Lifting systems
- Garage door mechanisms
- Storage solutions
Technical Specifications
Parameter Specification Manufacturer Article 00.08 Series Mini Block Type D-lock Size 25 mm Maximum Rope Diameter 8 mm Number of Sheaves 1 Bearing Simple / plain bearing Attachment Shackle MBS / Breaking Load 500 kg SWL 250 kg Swivel No Ratchet No Clamp No Colour Stainless steel -
