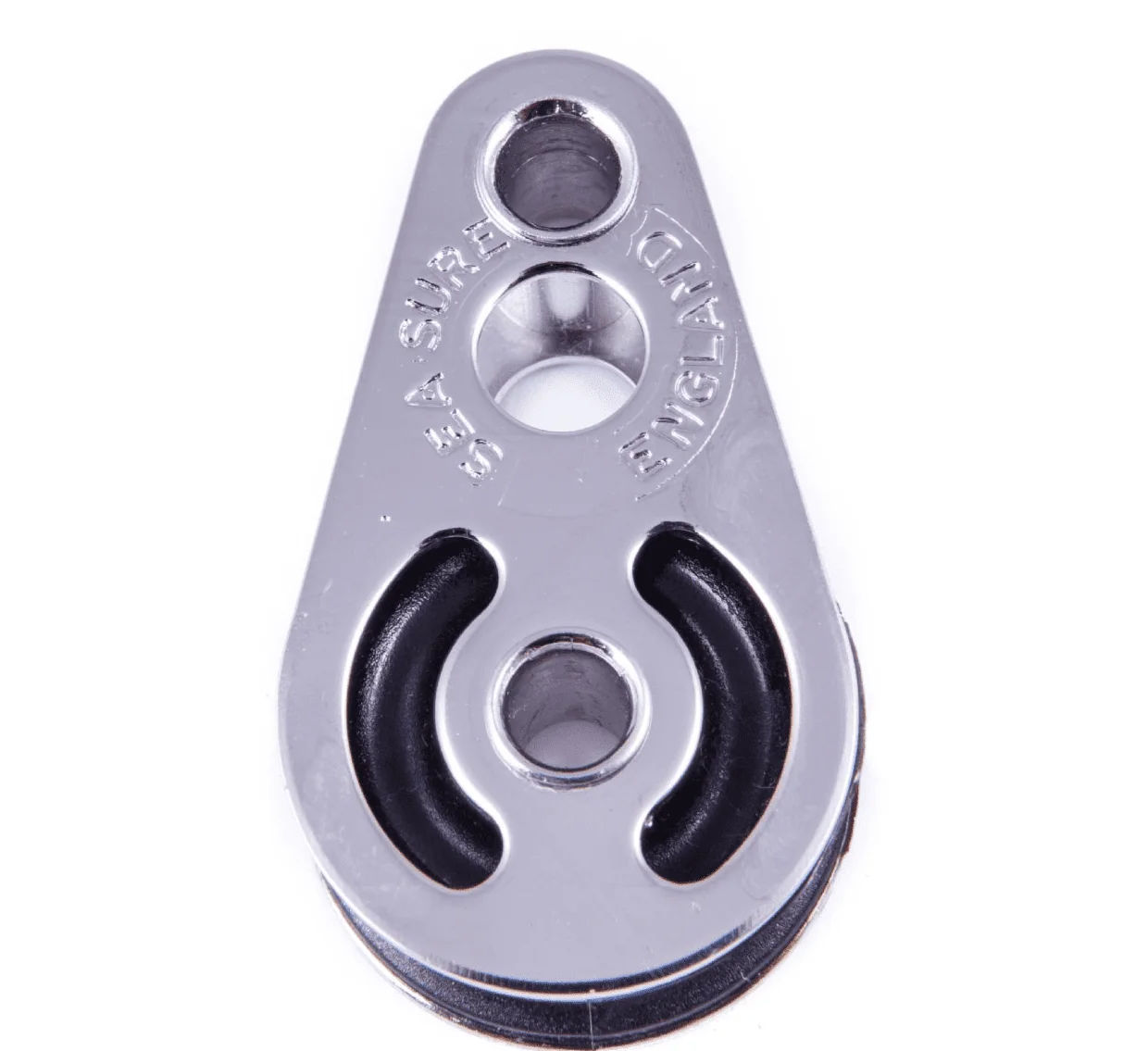

SeaSure 00.09 is a 25 mm single Mini block with a hollow rivet attachment, manufactured with marine-grade stainless steel side plates and rivets and a hard-wearing Arnite plastic sheave. It uses a simple plain bearing, accepts ropes up to 8 mm and has an MBS / breaking load of 500 kg with an SWL of 250 kg. The hollow rivet at the top allows rope to be easily spliced or tied around the smooth rivet, creating a purchase system or providing a soft attachment to a fixture.
- Description
- Ask a Question
-
SeaSure 00.09 25 mm Plain Bearing Single Mini Block with Hollow Rivet
SeaSure 00.09 is a 25 mm single block from the SeaSure Mini plain bearing range. It is manufactured with marine-grade stainless steel side plates and rivets and uses a hard-wearing Arnite plastic sheave.
The block is suitable for ropes up to 8 mm in diameter and uses a simple plain bearing. It has a maximum breaking strength (MBS) of 500 kg and a safe working load (SWL) of 250 kg.
The SeaSure 00.09 features a hollow rivet at the top. Rope can be easily spliced or tied around the smooth rivet to create purchase systems or to provide a soft attachment to a fixture.
The SeaSure 25 mm block range is suitable for marine and industrial pulley applications, including lifting systems, garage door mechanisms and storage solutions.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.09
- Product type: Single Mini block with hollow rivet
- Series: Mini
- Block type: Pin
- Sheave size: 25 mm
- Sheave material: Arnite plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Top attachment: Hollow rivet
- Bearing type: Simple / plain bearing
- Maximum rope diameter: 8 mm
- Number of sheaves: 1
- MBS / breaking load: 500 kg
- SWL: 250 kg
- Swivel: No
- Ratchet: No
- Clamp: No
- Colour: Stainless steel
Typical Applications
- Purchase systems
- Soft attachment to fixtures
- Marine pulley systems
- Industrial pulley systems
- Lifting systems
- Garage door mechanisms
- Storage solutions
Technical Specifications
Parameter Specification Manufacturer Article 00.09 Series Mini Block Type Pin Size 25 mm Maximum Rope Diameter 8 mm Number of Sheaves 1 Bearing Simple / plain bearing Top Attachment Hollow rivet MBS / Breaking Load 500 kg SWL 250 kg Swivel No Ratchet No Clamp No Colour Stainless steel -
