ID
1393773
$ 17.13
1-2 weeks delivery time
Item:
- 1 pcs
- 10 pcs

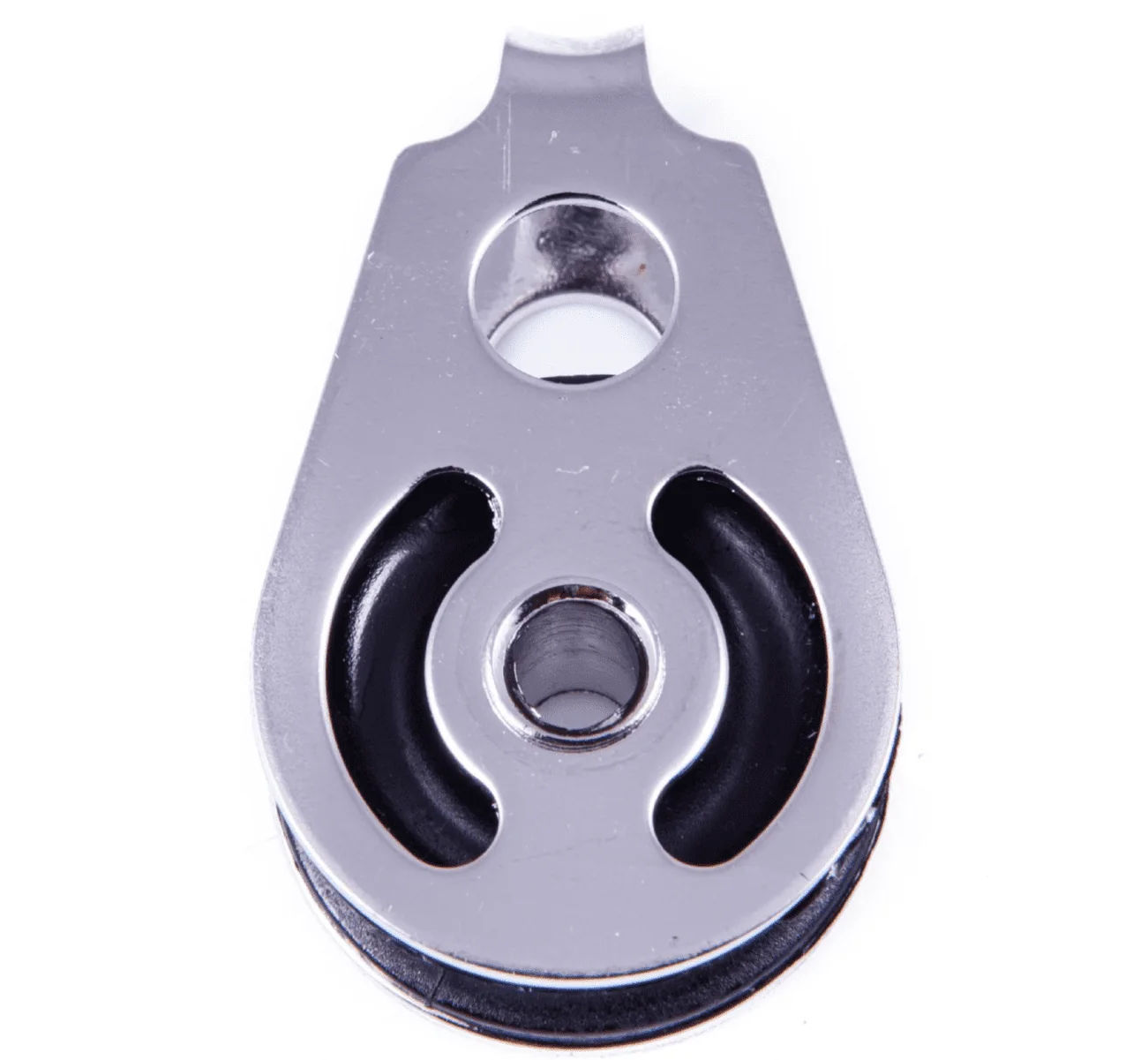

SeaSure 00.05 is a 25 mm single Mini block manufactured with marine-grade stainless steel side plates and rivets and a hard-wearing Arnite plastic sheave. It is suitable for ropes up to 8 mm and has a breaking load of 500 kg. When fitted with the SeaSure 25.17 lacing eye, the block can stand upright and resist falling from side to side, making it suitable for lifting, garage door and storage pulley systems.
- Description
- Ask a Question
-
SeaSure 00.05 25 mm Plain Bearing Single Mini Block with Lacing Eye
SeaSure 00.05 is a 25 mm single block from the SeaSure Mini plain bearing range. The block is manufactured with marine-grade stainless steel side plates and rivets and uses a hard-wearing Arnite plastic sheave.
The block is suitable for ropes up to 8 mm in diameter and has a breaking load of 500 kg. Its compact single-sheave construction is designed for general pulley applications.
When fitted with the optional SeaSure 25.17 lacing eye, the block can stand upright and is prevented from falling from side to side. This configuration can be useful where a more stable upright block position is required.
The SeaSure 25 mm plain bearing block range can be used in pulley systems for lifting, garage door mechanisms and storage solutions.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.05
- Product type: Single Mini block with eye
- Series: Mini
- Sheave size: 25 mm
- Sheave material: Arnite plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Plain bearing
- Maximum rope diameter: 8 mm
- Breaking load: 500 kg
- Optional lacing eye: SeaSure 25.17
- Lacing eye function: Keeps the block upright and reduces side-to-side movement
Typical Applications
- Lifting pulley systems
- Garage door mechanisms
- Storage solutions
Technical Specifications
Parameter Specification Manufacturer Article 00.05 Series Mini Size 25 mm Maximum Rope Diameter 8 mm Sheave Material Arnite plastic Side Plate Material Marine-grade stainless steel Bearing Type Plain bearing Breaking Load 500 kg Optional Lacing Eye SeaSure 25.17 -
