ID
1393783
$ 132.21
1-2 weeks delivery time
-
+

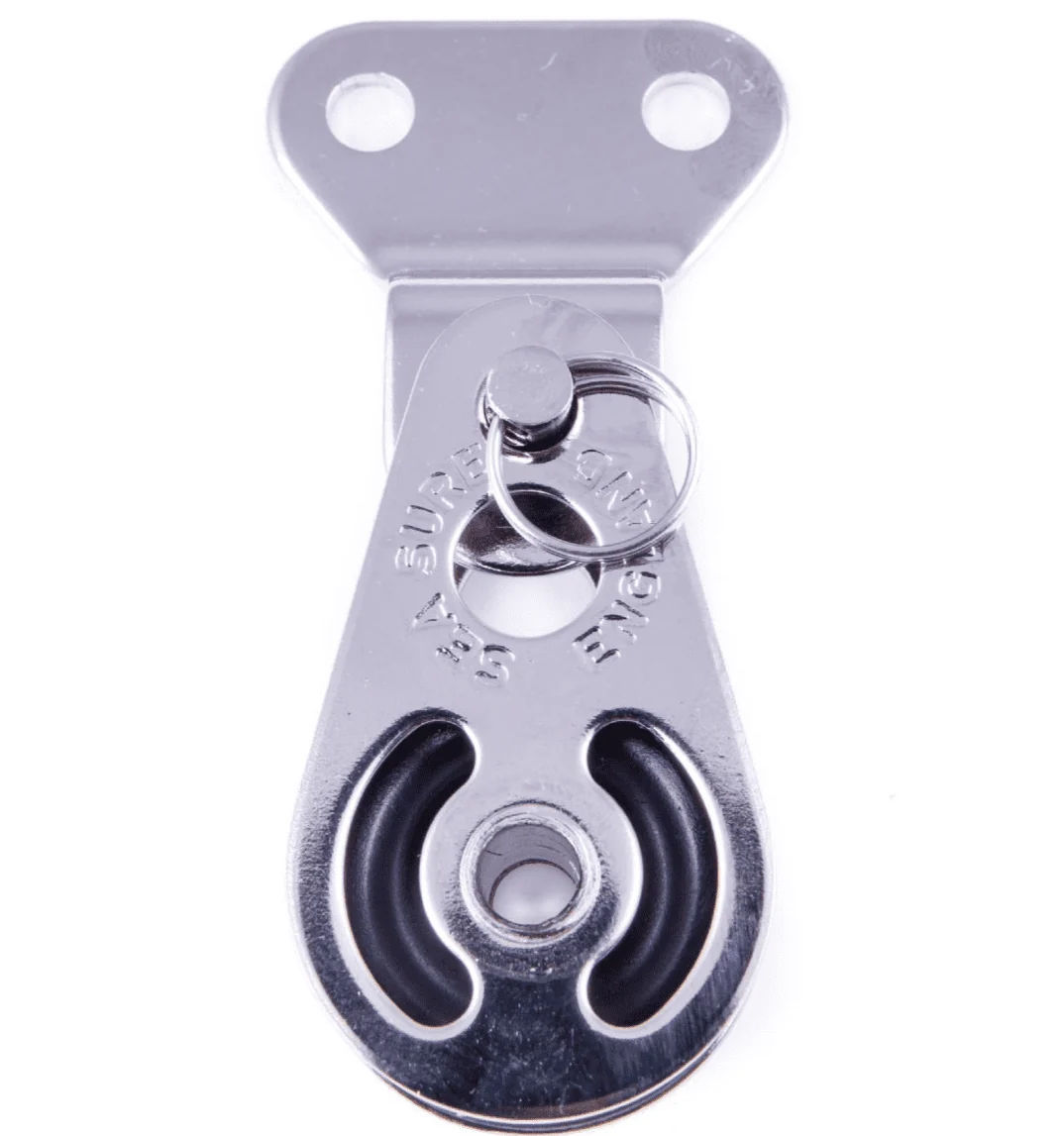

SeaSure 00.15 is a 25 mm quarter lead Mini block manufactured with marine-grade stainless steel side plates and rivets and a hard-wearing black plastic sheave. It uses a simple plain bearing, accepts ropes up to 8 mm and has an MBS / breaking load of 500 kg with an SWL of 250 kg. The integrated fixing plate has 5 mm fixing holes, allowing the block to be secured directly to a surface with screws or bolts.
- Description
- Ask a Question
-
SeaSure 00.15 25 mm Plain Bearing Quarter Lead Mini Block
SeaSure 00.15 is a 25 mm quarter lead block from the SeaSure Mini plain bearing range. It is manufactured with marine-grade stainless steel side plates and rivets and uses a hard-wearing black plastic sheave.
The block is suitable for ropes up to 8 mm in diameter and uses a simple plain bearing. It has a maximum breaking strength (MBS) of 500 kg and a safe working load (SWL) of 250 kg.
The SeaSure 00.15 incorporates a fixing plate with 5 mm diameter fixing holes. This allows the block to be mounted directly to a surface using suitable screws or bolts.
Product Features
- Brand: SeaSure
- Manufacturer article number: 00.15
- Product type: Quarter lead Mini block
- Series: Mini
- Block type: Turtle
- Sheave size: 25 mm
- Sheave material: Black plastic
- Side plate material: Marine-grade stainless steel
- Rivet material: Marine-grade stainless steel
- Bearing type: Simple / plain bearing
- Maximum rope diameter: 8 mm
- Fixing hole diameter: 5 mm
- Number of sheaves: 1
- MBS / breaking load: 500 kg
- SWL: 250 kg
- Clamp: Yes
- Swivel: No
- Ratchet: No
- Becket: No
- Colour: Stainless steel
Technical Specifications
Parameter Specification Manufacturer Article 00.15 Series Mini Block Type Turtle Size 25 mm Maximum Rope Diameter 8 mm Fixing Hole Diameter 5 mm Number of Sheaves 1 Bearing Simple / plain bearing Clamp Yes MBS / Breaking Load 500 kg SWL 250 kg Swivel No Ratchet No Becket No Colour Stainless steel -
