ID
1393765
$ 88.48
1-2 weeks delivery time
-
+
SeaSure 02.09 is a compact 19 mm single cage block with a carbon fibre sheave and marine-grade 316 stainless steel outer cage. It uses a plain bearing configuration for higher-load applications and is suitable for ropes up to 4 mm. The fixing hole diameter is 4 mm, with 13 mm hole centres parallel to the sheave and 17 mm hole centres across the sheave. The block has an MBS of 400 kg and an SWL of 200 kg.
- Description
- Ask a Question
-

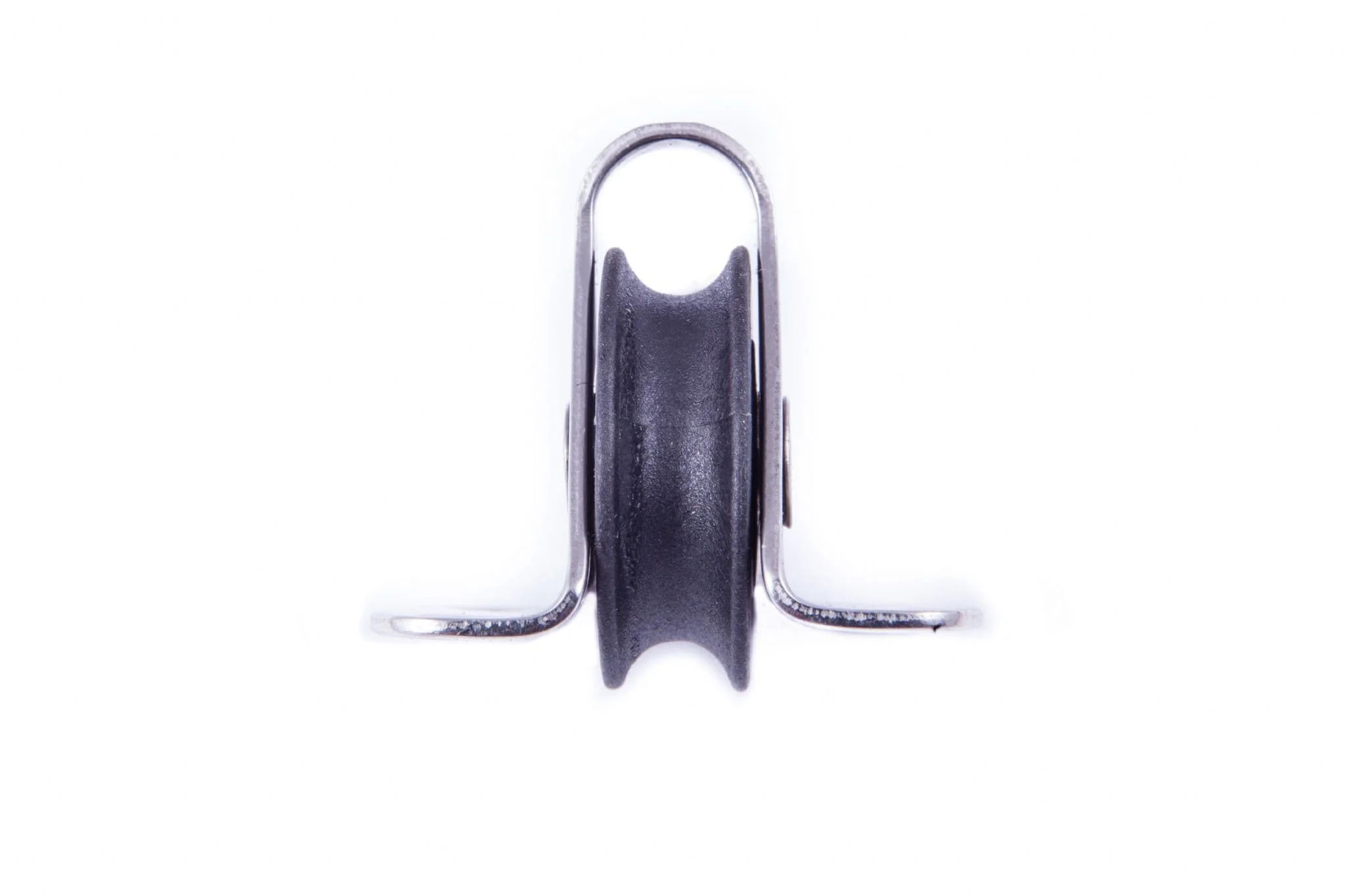

SeaSure 02.09 19 mm Plain Bearing Single Cage Block
SeaSure 02.09 is a compact 19 mm single cage block designed for use with abrasive ropes in higher-load applications. The block features a carbon fibre sheave and an outer cage manufactured from marine-grade 316 stainless steel.
The block uses a plain bearing configuration and is suitable for ropes up to 4 mm in diameter. The fixing hole diameter is 4 mm. Hole centres measure 13 mm parallel to the sheave and 17 mm across the sheave.
The single-sheave block has a maximum breaking strength (MBS) of 400 kg and a safe working load (SWL) of 200 kg.
Product Features
- Brand: SeaSure
- Manufacturer article number: 02.09
- Product type: Single cage block
- Series: Micro
- Block type: In deck
- Sheave size: 19 mm
- Sheave material: Carbon fibre
- Outer cage material: Marine-grade 316 stainless steel
- Bearing type: Simple / plain bearing
- Maximum rope diameter: 4 mm
- Fixing hole diameter: 4 mm
- Hole centres parallel to sheave: 13 mm
- Hole centres across sheave: 17 mm
- Number of discs: 1
- MBS: 400 kg
- SWL: 200 kg
- Swivel: No
- Ratchet: No
- Clamp: No
- Colour: Stainless steel
Technical Specifications
Parameter Specification Manufacturer Article 02.09 Series Micro Block Type In deck Size 19 mm Maximum Rope Diameter 4 mm Fixing Hole Diameter 4 mm Hole Centres Parallel to Sheave 13 mm Hole Centres Across Sheave 17 mm Number of Discs 1 Bearing Simple / plain bearing MBS 400 kg SWL 200 kg Swivel No Ratchet No Clamp No Colour Stainless steel -
