ID
1304414
$ 57.15
1-2 weeks delivery time
-
+
The Wichard 1425 D-Clasp Twisted Captive Pin, built from 316L stainless steel, features a captive pin that remains fixed and a secure locking system to prevent vibration loss. Designed for single-handed operation, it is ideal for 90° twist applications such as attaching blocks but is not intended for lifting.
- Description
- Ask a Question
-

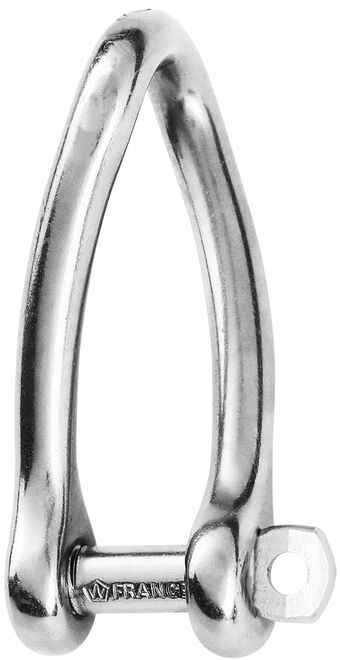

Wichard 1425 - D-Clasp Twisted Captive Pin SS 10 mm
Constructed from 316L stainless steel, this twisted D-shackle is equipped with a captive pin that stays attached even when opened. The secure locking system prevents loss due to vibration while enabling single-handed operation. Not suitable for lifting, it performs well in setups requiring a 90° angle twist, such as attaching blocks or similar unarticulated fittings.
- Material: 316 stainless steel grade
- Working load (kg): 1520
- Breaking load (kg): 5200
- Weight (g): 170

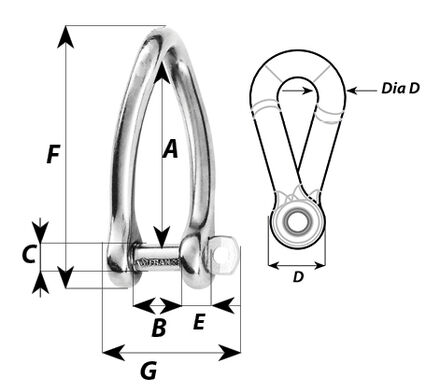

- A (mm): 74
- B (mm): 20
- C (mm): 11
- D (mm): 21
- D diameter (mm): 10
- E (mm): 9
- F (mm): 99
- G (mm): 53
- Item number: WR1425
-
