ID
1304401
$ 13.27
1-2 weeks delivery time
-
+
The Wichard 1402 is a 5 mm captive pin D-shackle in 316L stainless steel, with a permanently attached locking pin to prevent accidental release, ensuring safety and reliability for block, head, or industrial lifting applications.
- Description
- Ask a Question
-

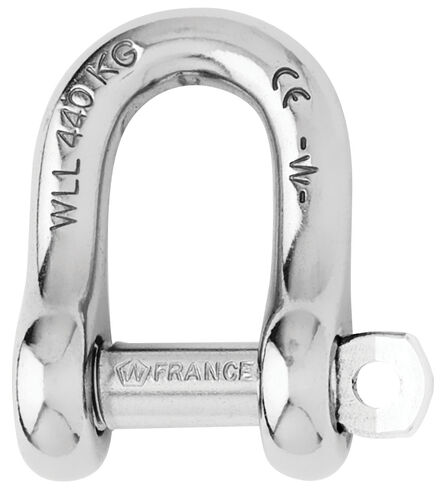

Wichard 1402 - Captive Pin D-Shackle 5 mm
Built from 316L stainless steel, this 5 mm captive pin D-shackle offers dependable strength with a pin that remains attached to the body. Its locking system prevents accidental release and ensures safety during use. Ideal for block or head attachments and industrial applications requiring CE-marked components.
- Material: 316 stainless steel grade
- Working load (kg): 480
- WLL (kg): 300
- Breaking load (kg): 1500
- Weight (g): 16

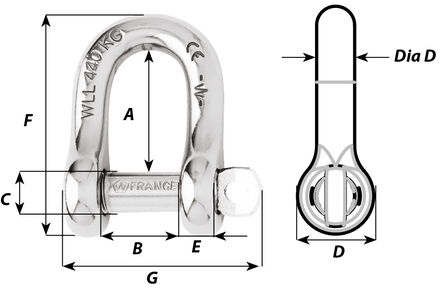

- A (mm): 16
- B (mm): 10
- C (mm): 6
- D (mm): 11
- D diameter (mm): 5
- E (mm): 5
- F (mm): 30
- G (mm): 30
- H (mm): 27
- Item number: WR1402
-
