The STA-LOK 203 Insulator Swage Parts range includes stainless steel swage studs designed to screw directly into insulator bodies, providing a secure and reliable connection for rigging systems. Manufactured from high specification 316 stainless steel, these components require professional swaging to ensure correct installation and performance. The range covers wire sizes from 6 mm to 12 mm with corresponding BSF thread sizes.
- Description
- Ask a Question
-

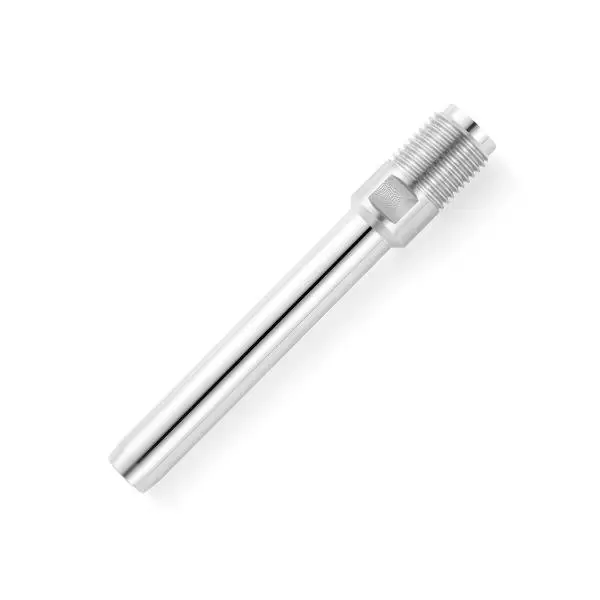

STA-LOK 203 Insulator Swage Parts – 316 Stainless Steel Swage Studs for Insulator Bodies
The STA-LOK 203 Insulator Swage Parts are designed for use with insulator bodies, providing a secure threaded connection within rigging systems. These swage studs screw directly into the insulator and form a permanent connection when correctly installed.
Manufactured from high specification 316 stainless steel, they offer corrosion resistance and durability for marine and industrial applications. Proper installation requires professional swaging to ensure a secure and reliable connection.
Key Features
- Swage part for insulator assemblies
- Screws directly into insulator body
- Manufactured from high specification 316 stainless steel
- Designed for permanent installation
- Requires professional swaging
Applications
Suitable for use in rigging systems where insulators are installed and a swaged threaded connection is required.
Technical Specifications
SKU Wire Size (Metric) Wire Size (Imperial) A (MM) A (INCH) Thread (BSF) Weight (KG) Weight (LB) 203-06 6 MM - 12.4 0.489 5/8" 0.105 0.231 203-07 7 MM 9/32" 14.2 0.558 3/4" 0.159 0.351 203-08 8 MM 5/16" 16.1 0.630 3/4" 0.197 0.434 203-10 10 MM - 17.7 0.698 7/8" 0.270 0.595 203-12 12 MM - 21.3 0.839 1 1/8" 0.501 1.105
Construction and Installation
- Threaded design for direct installation into insulator bodies
- Swage connection to wire rope
- Professional swaging required for correct installation
- Designed for long-term, permanent use
-
