Diameter, mm:
- 6
- 8
- 10
- 12
The STA-LOK 206 Insulator Bodies range includes high strength insulator bodies designed for wire rope rigging systems, providing both mechanical load capacity and electrical insulation. Engineered to be stronger than the wire rope itself, these insulators are compatible with a range of Sta-Lok end fittings. They offer stable electrical performance with 16 pF capacitance, 400K resistance at 15 MHz, and D.C. leakage resistance greater than 10 GΩ at 30 kV, withstanding a 30 kV voltage proof test for 2 hours without breakdown.
- Description
- Ask a Question
-
STA-LOK 206 Insulator Bodies – High Strength Rigging Insulators for Wire Rope Assemblies

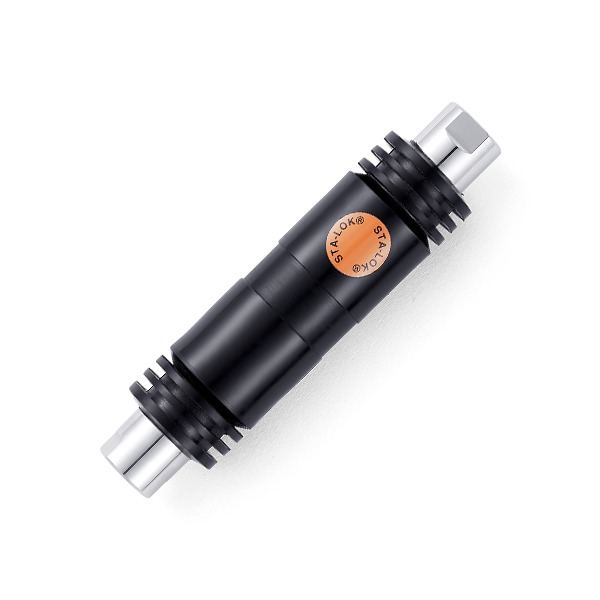

The STA-LOK 206 Insulator Bodies form the main structural component of Sta-Lok insulator systems, combining mechanical strength with electrical insulation for use in rigging assemblies.
These insulators are engineered to be stronger than the wire rope they support and are compatible with a variety of Sta-Lok end fittings, allowing flexible integration into different rigging configurations.
In addition to mechanical performance, the insulator bodies provide stable electrical characteristics, maintaining consistent impedance and high resistance under high voltage conditions.
Key Features
- Main body component of Sta-Lok insulator systems
- Designed to be stronger than the wire rope
- Compatible with a wide range of Sta-Lok end fittings
- Suitable for rigging systems requiring electrical isolation
- Reliable performance under mechanical load and electrical stress
Electrical Properties
- Capacitance: 16 pF at 15 MHz
- Resistance: 400K at 15 MHz
- D.C. Leakage Resistance: greater than 10 GΩ at 30 kV
- Voltage Proof Test: withstands 30 kV for 2 hours without breakdown
- No change in impedance after voltage testing
Applications
Suitable for marine and industrial rigging systems where electrical isolation is required within wire rope assemblies.
Technical Specifications
SKU Wire Size (Metric) Wire Size (Imperial) A (MM) A (INCH) B (MM) B (INCH) Weight (KG) Weight (LB) Additional Information 206-06 6 MM 7/32" & 1/4" 152.0 6.000 35.0 1.375 0.370 0.816 - 206-08 7 MM & 8 MM 9/32" & 5/16" 164.0 6.500 38.0 1.500 0.474 1.045 - 206-10 10 MM 3/8" 175.0 6.875 41.0 1.625 0.605 1.334 - 206-12 12 MM 7/16" & 1/2" 215.0 8.500 52.0 2.000 1.700 3.748 Achieves 93% of rated breaking load on 12 mm compacted strand wire rope
Construction and Installation
- Designed as the central element of insulator assemblies
- Compatible with various Sta-Lok end fittings
- Provides both structural load capacity and electrical isolation
-
