ID
1355554
$ 29.71
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
- 7
- 8
- 10
- 12
- 14
- 16
- 19
- 22
The STA-LOK 035 Swage Fork range consists of precision stainless steel fork terminals designed for wire rope swaging applications. Manufactured from high specification 316 stainless steel, these fittings are suitable for rotary and fixed die swaging machines and compatible with 1×19, 7 strand, and compacted strand wire rope (IWRC). Designed to fit most chain plates and attachment points, they support both metric and imperial wire ropes.
- Description
- Ask a Question
-

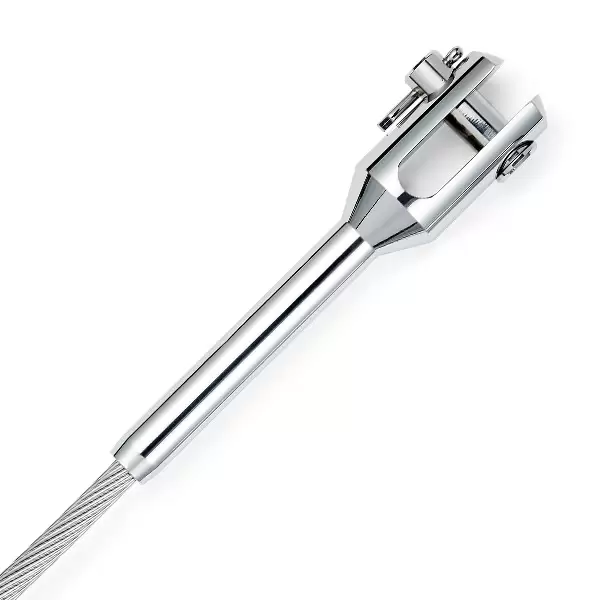

STA-LOK 035 Swage Forks – 316 Stainless Steel Wire Rope Fork Terminals
The STA-LOK 035 Swage Fork range provides reliable fork terminals for wire rope assemblies in marine, architectural, and industrial applications. Manufactured from high specification 316 stainless steel, these fittings deliver excellent corrosion resistance and durability in demanding environments.
Designed for use with rotary and fixed die swaging machines, these swage forks ensure strong, precise wire rope terminations. They are compatible with 1×19, 7 strand, and compacted strand wire rope (IWRC) and support both metric and imperial wire rope sizes.
The forks are engineered to fit most chain plates and fixing points and require a minimum hole depth of 10× the wire diameter for proper installation.
Key Features
- Manufactured from high specification 316 stainless steel
- Suitable for rotary and fixed die swaging machines
- Compatible with 1×19, 7 strand, and compacted strand wire rope (IWRC)
- Supports metric and imperial wire rope sizes
- Designed to fit most chain plates and fixing points
- Minimum hole depth requirement: 10× wire diameter
Available Sizes
Item Number Wire Size (Metric) Wire Size (Imperial) A (mm) B (mm) D (mm) P (mm) Weight (kg) ST035-03 3 mm 1/8" 6.2 10.0 6.4 6.2 0.020 ST035-04 4 mm 5/32" 7.4 14.7 7.9 7.7 0.060 ST035-05 5 mm 3/16" 9.0 17.5 9.5 9.3 0.100 ST035-06 6 mm - 12.4 19.0 11.1 10.9 0.160 ST035-07 7 mm 9/32" 14.2 25.1 11.1 10.9 0.200 ST035-08 8 mm 5/16" 16.1 25.1 12.7 12.6 0.340 ST035-10 10 mm - 17.7 29.4 15.9 15.6 0.560 ST035-12 12 mm - 21.3 33.3 19.1 18.5 0.900 ST035-14 14 mm 9/16" 24.9 38.1 22.2 21.5 1.600 ST035-16 16 mm 5/8" 28.0 40.0 25.4 25.0 1.700 ST035-19 19 mm 3/4" 34.4 50.0 28.6 28.2 2.500 ST035-22 22 mm 7/8" 40.3 60.3 31.8 31.5 3.620
Technical Information
- Material: 316 stainless steel
- Product type: Swage fork terminal
- Installation method: Rotary or fixed die swaging machine
- Wire compatibility: 1×19, 7 strand, compacted strand (IWRC)
- Minimum hole depth: 10× wire diameter
- Typical applications: Marine rigging, structural wire rope systems, industrial assemblies
-
