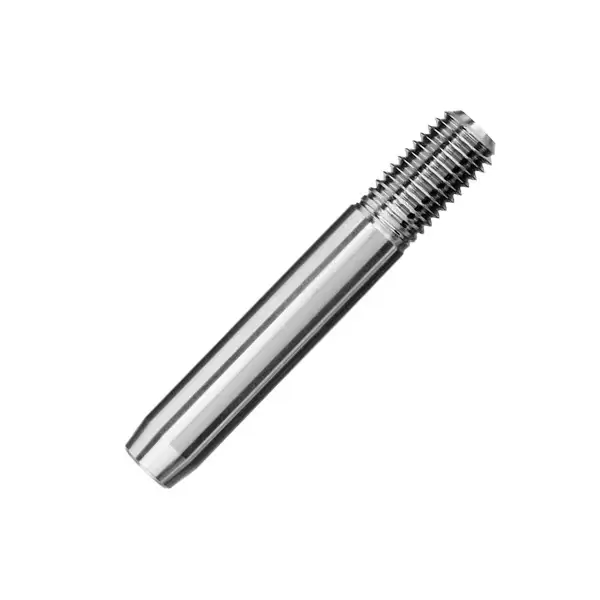

STA-LOK 051-SH Short Swage Studs 316 Stainless Steel

ID 1355526

$ 11.14

1-2 weeks delivery time

Diameter, mm:

Item:

M8
5/16

The STA-LOK 051-SH Short Swage Studs are compact stainless steel swage studs designed for guard rail and lifeline systems. Manufactured from marine grade stainless steel, these fittings are intended for use with Guard Rail Eye fittings and are available with right-hand UNF or metric threads. The range is suitable for 4 mm, 5 mm, and 6 mm wire sizes.

Description
Ask a Question

STA-LOK 051-SH Short Swage Studs – Marine Grade Stainless Steel Short Studs for Guard Rails & Lifelines

The STA-LOK 051-SH Short Swage Studs are compact swage studs designed for use in guard rail and lifeline systems. Manufactured from marine grade stainless steel, they provide corrosion resistance and long service life in marine environments.

These short studs are intended for use with Guard Rail Eye fittings and are available with right-hand UNF or metric threads to suit different installation requirements.

Key Features

Marine grade stainless steel construction
Short swage stud design for guard rails and lifelines
Designed for use with Guard Rail Eye fittings
Available with right-hand UNF or metric threads
Suitable for marine rigging applications

Available Variants

Item Number	Wire Size (Metric)	Wire Size (Imperial)	Thread (UNF)	Thread (Metric)	A (mm)	B (mm)	Weight (kg)
ST051-04-M8-SH	4 mm	5/32"	-	M8	7.4	11.1	0.020
ST051-04-SH	4 mm	5/32"	5/16"	-	7.4	11.1	0.020
ST051-05-M8-SH	5 mm	3/16"	-	M8	9.0	11.1	0.030
ST051-05-SH	5 mm	3/16"	5/16"	-	9.0	11.1	0.030
ST051-06-M8-SH	6 mm	-	-	M8	12.4	11.1	0.050
ST051-06-SH	6 mm	-	5/16"	-	12.4	11.1	0.050

Technical Information

Material: Marine grade stainless steel
Product type: Short swage stud
Application: Guard rails and lifelines
Compatibility: Guard Rail Eye fittings
Thread type: Right-hand UNF or metric
