ID
1382007
$ 13.98
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
- 14
- 16
- 19
- 22
Item:
- 1 pcs
- 10 pcs
The Osculati AISI 316 Stainless Steel Bow Shackles are premium marine bow shackles manufactured from mirror-polished AISI 316 stainless steel with a precision threaded pin. Their wide bow profile provides greater freedom of movement and makes them ideal for multi-directional loading in rigging, anchoring, mooring, lifting, and deck hardware applications. Available in 4 mm to 22 mm sizes with working loads from 138 kg to 4,750 kg and breaking loads up to 19,000 kg. Retail versions are available for selected sizes.
- Description
- Ask a Question
-

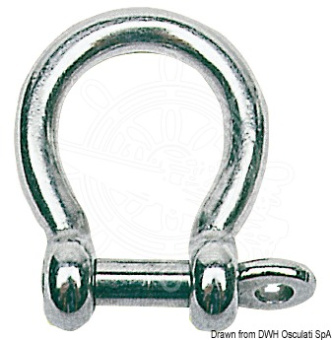

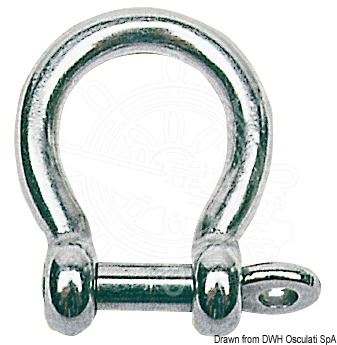

Osculati AISI 316 Stainless Steel Bow Shackles – 4-22 mm, 138-4750 kg Working Load
The Osculati AISI 316 Stainless Steel Bow Shackles are high-quality marine fastening components designed for demanding onboard applications. Manufactured from mirror-polished AISI 316 stainless steel, they provide outstanding corrosion resistance and long-lasting performance in harsh saltwater environments.
The rounded bow design offers increased articulation compared to standard D shackles, allowing the shackle to accommodate multiple connection points or loads applied from different angles. Combined with a precision-machined threaded pin, these shackles deliver secure fastening and reliable operation for a wide range of marine applications.
Key Features
- Original Osculati marine bow shackles
- Mirror-polished AISI 316 stainless steel construction
- Excellent corrosion resistance for marine environments
- Wide bow design for improved articulation and multi-directional loading
- Precision threaded pin for secure fastening
- Suitable for rigging, anchoring, mooring, lifting and deck hardware
- Available in bulk and selected retail versions
Available Variants
Bulk Code Retail Code Diameter Working Load Breaking Load L1 08.421.04 — 4 mm 138 kg 550 kg 19 mm 08.421.05 08.431.05 5 mm 250 kg 1000 kg 20 mm 08.421.06 08.431.06 6 mm 425 kg 1700 kg 24 mm 08.421.08 08.431.08 8 mm 700 kg 2800 kg 32 mm 08.421.10 08.431.10 10 mm 1375 kg 5500 kg 40 mm 08.421.12 08.431.12 12 mm 1500 kg 6000 kg 48 mm 08.421.14 08.431.14 14 mm 1750 kg 7000 kg 56 mm 08.421.16 — 16 mm 2500 kg 10000 kg 64 mm 08.421.19 — 19 mm 3750 kg 15000 kg 87 mm 08.421.22 — 22 mm 4750 kg 19000 kg 99 mm
Applications
Ideal for sailing and motor yachts, these AISI 316 bow shackles are widely used for anchor connections, mooring systems, rigging, lifting points, blocks, chain assemblies, and general-purpose marine hardware where high strength, corrosion resistance, and increased articulation are required.
-
