ID
1381996
$ 14.42
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
- 14
- 16
- 19
- 22
Item:
- 1 pcs
- 10 pcs

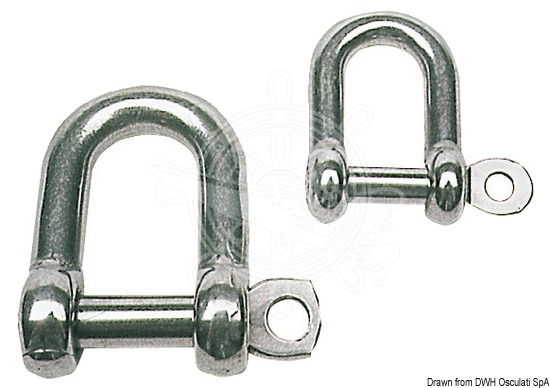

The Osculati AISI 316 Stainless Steel D Shackles are mirror-polished marine-grade shackles designed for rigging, anchoring, lifting, and general deck hardware applications. Manufactured from AISI 316 stainless steel with a precision threaded pin, they provide excellent corrosion resistance and dependable performance in harsh marine environments. Available in sizes from 4 mm to 22 mm, with working loads from 148 kg to 4,712 kg and breaking loads up to 18,470 kg. Retail versions are available for selected sizes.
- Description
- Ask a Question
-
Osculati AISI 316 Stainless Steel D Shackles – 4-22 mm, 148-4712 kg Working Load
The Osculati AISI 316 Stainless Steel D Shackles are premium marine fastening components manufactured from mirror-polished AISI 316 stainless steel. Designed for demanding marine environments, they combine outstanding corrosion resistance with high mechanical strength for reliable performance onboard.
The classic D-shaped design is ideal for inline loading applications, while the precision-machined threaded pin ensures secure fastening and easy installation. These shackles are suitable for rigging systems, anchoring, mooring equipment, lifting points, blocks, and numerous general-purpose marine applications.
Key Features
- Original Osculati marine hardware
- Mirror-polished AISI 316 stainless steel construction
- Excellent corrosion resistance for saltwater use
- Precision-machined threaded pin
- High strength-to-size ratio
- Suitable for rigging, mooring, anchoring and lifting applications
- Available in bulk and selected retail versions
Available Variants
Bulk Code Retail Code Diameter Working Load Breaking Load L1 08.321.04 08.331.04 4 mm 148 kg 580 kg 16 mm 08.321.05 08.331.05 5 mm 232 kg 910 kg 20 mm 08.321.06 08.331.06 6 mm 337 kg 1320 kg 24 mm 08.321.08 08.331.08 8 mm 605 kg 2370 kg 32 mm 08.321.10 08.331.10 10 mm 952 kg 3730 kg 40 mm 08.321.12 08.331.12 12 mm 1400 kg 5490 kg 48 mm 08.321.14 08.331.14 14 mm 1908 kg 7480 kg 56 mm 08.321.16 — 16 mm 2492 kg 9770 kg 64 mm 08.321.19 — 19 mm 3472 kg 13610 kg 76 mm 08.321.22 — 22 mm 4712 kg 18470 kg 104 mm
Applications
These stainless steel D shackles are ideal for sailboat and powerboat rigging, anchor systems, mooring lines, lifting equipment, deck fittings, blocks, pulleys, and other marine hardware where corrosion resistance and high mechanical strength are essential.
-
