The Osculati AISI 316 Stainless Steel Bow Shackles with Captive Pin are premium marine bow shackles manufactured from mirror-polished AISI 316 stainless steel. Featuring a permanently attached captive threaded pin, they prevent accidental pin loss while providing excellent corrosion resistance and secure fastening. The rounded bow design accommodates multi-directional loading, making these shackles ideal for rigging, anchoring, mooring, lifting, and general marine hardware. Available in 4 mm to 12 mm sizes with working loads from 145 kg to 1,372 kg and breaking loads up to 5,490 kg.
- Description
- Ask a Question
-

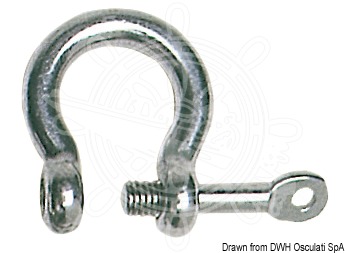

Osculati AISI 316 Stainless Steel Bow Shackles with Captive Pin – 4-12 mm, 145-1372 kg Working Load
The Osculati AISI 316 Stainless Steel Bow Shackles with Captive Pin are high-quality marine fastening components manufactured from mirror-polished AISI 316 stainless steel. Designed for demanding onboard environments, they combine excellent corrosion resistance with a practical captive pin that remains attached to the shackle, helping prevent accidental loss during installation and maintenance.
The rounded bow profile provides greater articulation than a standard D shackle, allowing multiple connection points or loads applied from different directions. This makes the shackles ideal for rigging systems, mooring equipment, anchors, lifting applications, blocks, and other marine hardware.
Key Features
- Original Osculati marine hardware
- Mirror-polished AISI 316 stainless steel construction
- Captive threaded pin prevents accidental pin loss
- Wide bow design for improved articulation
- Excellent corrosion resistance in marine environments
- Suitable for rigging, anchoring, mooring and lifting applications
- Available in multiple sizes for different load requirements
Available Variants
Osculati Code Diameter L1 Working Load Breaking Load 08.221.04 4 mm 16 mm 145 kg 580 kg 08.221.05 5 mm 20 mm 227 kg 910 kg 08.221.06 6 mm 24 mm 330 kg 1320 kg 08.221.08 8 mm 32 mm 592 kg 2370 kg 08.221.10 10 mm 40 mm 932 kg 3730 kg 08.221.12 12 mm 48 mm 1372 kg 5490 kg
Applications
Ideal for sailing yachts, motorboats, anchor systems, mooring lines, lifting points, rigging assemblies, blocks, chain connections, and general marine hardware where a corrosion-resistant bow shackle with a secure captive pin is preferred.
-
