ID
1382025
$ 17.02
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
- 14
Item:
- 1 pcs
- 10 pcs

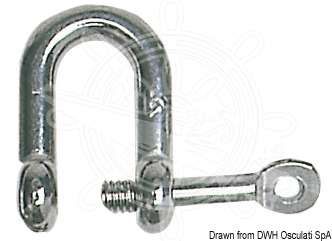

The Osculati D Shackles with Captive Pin are marine-grade U-shaped shackles designed with a permanently attached captive screw pin to prevent accidental pin loss during installation or maintenance. Suitable for rigging, anchoring, mooring, lifting, and general marine fastening applications, they are available in 4 mm to 14 mm sizes with working loads up to 1,260 kg and breaking loads up to 4,940 kg.
- Description
- Ask a Question
-
Osculati D Shackles with Captive Pin – 4-14 mm, 133-1260 kg Working Load
The Osculati D Shackles with Captive Pin are durable marine fastening components featuring a practical U-shaped body and an integrated captive screw pin. The captive pin remains attached to the shackle during use, helping prevent accidental loss when installing or removing the fitting onboard.
Designed for marine environments, these shackles are suitable for connecting chains, ropes, blocks, rigging hardware, mooring equipment, lifting points, and numerous general-purpose deck applications. Their compact D-shaped profile makes them particularly suitable for inline loading.
Key Features
- Original Osculati marine hardware
- U-shaped D shackle design
- Captive screw pin helps prevent accidental pin loss
- Compact design for inline load applications
- Suitable for rigging, mooring, anchoring and lifting equipment
- Available in multiple sizes for different load requirements
Available Variants
Osculati Code Diameter L1 Working Load Breaking Load 08.220.04 4 mm 16 mm 133 kg 520 kg 08.220.05 5 mm 20 mm 209 kg 820 kg 08.220.06 6 mm 24 mm 304 kg 1190 kg 08.220.08 8 mm 32 mm 543 kg 2130 kg 08.220.10 10 mm 40 mm 857 kg 3360 kg 08.220.12 12 mm 48 mm 1260 kg 4940 kg 08.220.14 14 mm 46 mm — —
Applications
Ideal for marine rigging, anchor systems, mooring equipment, lifting points, deck fittings, chain connections, and other onboard fastening applications where a captive pin design helps prevent component loss during maintenance or operation.
-
