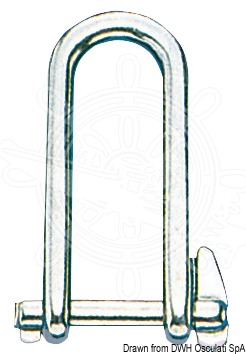

Osculati AISI 316 Long D Shackles with Captive Locking Pin

ID 1382256

$ 4.82

1-2 weeks delivery time

Diameter, mm:

Item:

1 pcs

The Osculati AISI 316 Long D Shackles – Standard Pin are precision investment-cast marine shackles manufactured from AISI 316 stainless steel. Their elongated D-shaped profile provides additional clearance for rigging and fastening applications while maintaining a compact pin design. Available in 5 mm, 6 mm, and 8 mm sizes with working loads from 163 kg to 401 kg and breaking loads up to 1,570 kg.

Description
Ask a Question

Osculati AISI 316 Long D Shackles – Standard Pin, 5-8 mm, 163-401 kg Working Load

The Osculati Long D Shackles – Standard Pin are premium marine shackles manufactured from investment-cast AISI 316 stainless steel, providing excellent strength, corrosion resistance, and a high-quality polished finish for long-term use in demanding marine environments.

The elongated D-shaped body offers increased internal clearance compared to standard D shackles, making these fittings suitable for applications where additional length is required. The standard removable pin allows quick assembly and secure fastening for rigging, deck hardware, lifting points, and mooring systems.

Key Features
- Original Osculati marine hardware
- Investment-cast AISI 316 stainless steel construction
- Mirror-polished finish for maximum corrosion resistance
- Long D-shackle design for increased clearance
- Standard removable threaded pin
- Designed for marine rigging and deck applications
- Suitable for freshwater and saltwater environments
Available Variants

Osculati Code Pin Diameter Length (L) Working Load Breaking Load

08.763.05 5 mm 40 mm 163 kg 640 kg

08.763.06 6 mm 46 mm 258 kg 1010 kg

08.763.08 8 mm 64 mm 401 kg 1570 kg

Applications

Ideal for sailboat and motorboat rigging, standing rigging connections, lifeline fittings, deck hardware, mooring systems, lifting points, and general marine fastening applications where an extended D-shackle profile is required.
