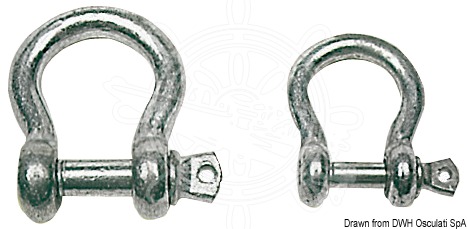

The Osculati Galvanized Lyre Shackles are heavy-duty bow shackles designed for marine rigging, mooring, and lifting applications. Their wide lyre (anchor) shape makes them especially suitable for use with thimbles and multiple attachment points. Manufactured from galvanized steel with a corrosion-resistant finish, they are available with 6 mm to 25 mm pin diameters, offering working loads from 100 kg to 2,100 kg and breaking loads up to 8,400 kg.
- Description
- Ask a Question
-
Osculati Galvanized Lyre Shackles – 6-25 mm Pin, 100-2100 kg Working Load
The Osculati Galvanized Lyre Shackles are robust marine bow shackles manufactured from galvanized steel for long-lasting corrosion resistance. Their rounded lyre profile provides greater internal clearance than standard D shackles, making them particularly suitable for use with rope thimbles, multiple slings, and mooring assemblies.
Designed for demanding marine environments, these shackles feature precision-machined threaded pins and are suitable for a wide range of rigging, anchoring, towing, lifting, and general fastening applications.
Key Features
- Original Osculati galvanized lyre shackles
- Heavy-duty galvanized steel construction
- Wide bow design ideal for use with thimbles
- Precision threaded removable pin
- Excellent corrosion resistance for marine environments
- Suitable for mooring, anchoring, towing and rigging
- Available in multiple sizes and load ratings
Available Variants
Osculati Code Pin Ø Body Ø A L Working Load Breaking Load 08.329.06 6 mm 6 mm 13 mm 25 mm 100 kg 400 kg 08.329.08 8 mm 8 mm 16 mm 32 mm 200 kg 800 kg 08.329.10 10 mm 10 mm 19 mm 38 mm 320 kg 1280 kg 08.329.12 12 mm 12 mm 25 mm 51 mm 520 kg 2080 kg 08.329.14 14 mm 14 mm 28 mm 58 mm 800 kg 3200 kg 08.329.16 16 mm 16 mm 32 mm 64 mm 1100 kg 4400 kg 08.329.20 20 mm 20 mm 38 mm 76 mm 1500 kg 6000 kg 08.329.25 25 mm 25 mm 51 mm 100 mm 2100 kg 8400 kg
Applications
Ideal for marine rigging, anchor systems, mooring lines, lifting equipment, towing operations, and rope assemblies using thimbles. The wide bow design provides additional flexibility where multiple attachment points or larger-radius connections are required.
-
