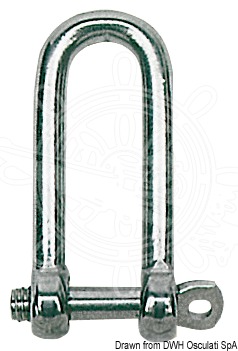

The Osculati AISI 316 Long D Shackles are mirror-polished marine-grade long-pattern shackles manufactured from AISI 316 stainless steel. Their elongated D-shaped design provides additional clearance where a standard D shackle is not suitable, while the precision threaded pin ensures secure fastening. Available in 4 mm to 12 mm sizes with working loads from 148 kg to 1,401 kg and breaking loads up to 5,490 kg.
- Description
- Ask a Question
-
Osculati AISI 316 Long D Shackles – 4-12 mm, 148-1401 kg Working Load
The Osculati AISI 316 Long D Shackles are premium marine fastening components manufactured from mirror-polished AISI 316 stainless steel. Designed specifically for applications requiring additional internal height, these long-pattern shackles offer excellent corrosion resistance together with dependable mechanical strength for use in demanding marine environments.
The elongated D-shackle profile provides greater clearance than a standard D shackle, making it ideal for connecting fittings, chains, wire rope assemblies, and rigging hardware where extra reach or spacing is required. A precision-machined threaded pin ensures secure installation and reliable operation.
Key Features
- Original Osculati marine hardware
- Mirror-polished AISI 316 stainless steel construction
- Long D-shackle design for increased internal clearance
- Excellent corrosion resistance in saltwater environments
- Precision-machined threaded pin
- Suitable for rigging, anchoring, lifting and general deck hardware
- Available in multiple sizes for various marine applications
Available Variants
Osculati Code Diameter L2 Working Load Breaking Load 08.323.04 4 mm 32 mm 148 kg 580 kg 08.323.05 5 mm 40 mm 232 kg 910 kg 08.323.06 6 mm 48 mm 337 kg 1320 kg 08.323.08 8 mm 64 mm 605 kg 2370 kg 08.323.10 10 mm 80 mm 952 kg 3730 kg 08.323.12 12 mm 96 mm 1401 kg 5490 kg
Applications
These long D shackles are ideal for sailboat and motorboat rigging, anchor systems, mooring equipment, lifting points, chain connections, wire rope assemblies, and other marine installations where additional shackle length is required without compromising strength or corrosion resistance.
-
