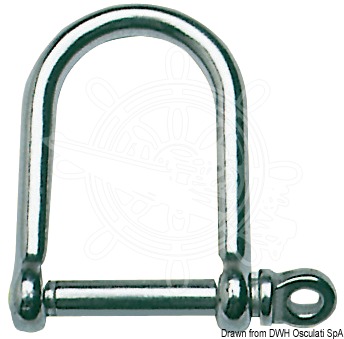

Osculati Wide Jaw D Shackles – Forged AISI 316 Stainless Steel, 5-12 mm, 232-1400 kg Working Load
The Osculati Wide Jaw D Shackles are premium marine fastening components manufactured from forged AISI 316 stainless steel. The forging process provides superior mechanical strength, while the mirror-polished finish delivers excellent resistance to corrosion in both freshwater and saltwater environments.
Featuring a wide jaw D-shaped profile, these shackles provide additional internal clearance compared to standard D shackles, making them suitable for connecting larger fittings, webbing, straps, chain attachments, and heavy-duty rigging hardware. Their threaded removable pin allows quick installation while maintaining a secure connection.
Key Features
- Original Osculati marine hardware
- Forged AISI 316 stainless steel construction
- Mirror-polished corrosion-resistant finish
- Wide jaw design for increased internal clearance
- Removable threaded pin for secure fastening
- Suitable for demanding marine and industrial applications
- Excellent strength and long service life
Available Variants
Osculati Code Pin Ø Length (L) Working Load Breaking Load 08.325.05 5 mm 22.5 mm 232 kg 910 kg 08.325.06 6 mm 36 mm 337 kg 1320 kg 08.325.08 8 mm 35 mm 605 kg 2370 kg 08.325.10 10 mm 60 mm 952 kg 3730 kg 08.325.12 12 mm 72 mm 1400 kg 5490 kg
Applications
Ideal for sailboat rigging, standing rigging, deck hardware, lifting points, mooring systems, chain and strap connections, marine hardware installations, and other applications requiring additional jaw clearance together with the strength of forged AISI 316 stainless steel.
-
