ID
1406136
$ 105.72
1-2 weeks delivery time
-
+
The Tecnoseal WKCKK3 is a zinc sacrificial anode designed for corrosion protection of compatible Walter marine keel cooling systems. Its contoured body measures 133 mm (5.24 in) in length, 88 mm (3.46 in) in width and 42 mm (1.65 in) in height, with a 9 mm (0.35 in) central mounting hole. The anode features a shaped profile with rounded surfaces, a side cutout and a recessed mounting area to suit the corresponding cooler assembly. Weighing 1.45 kg (3.20 lbs), it provides a replaceable zinc element that helps protect metallic keel cooler components against galvanic corrosion.
- Description
- Ask a Question
-

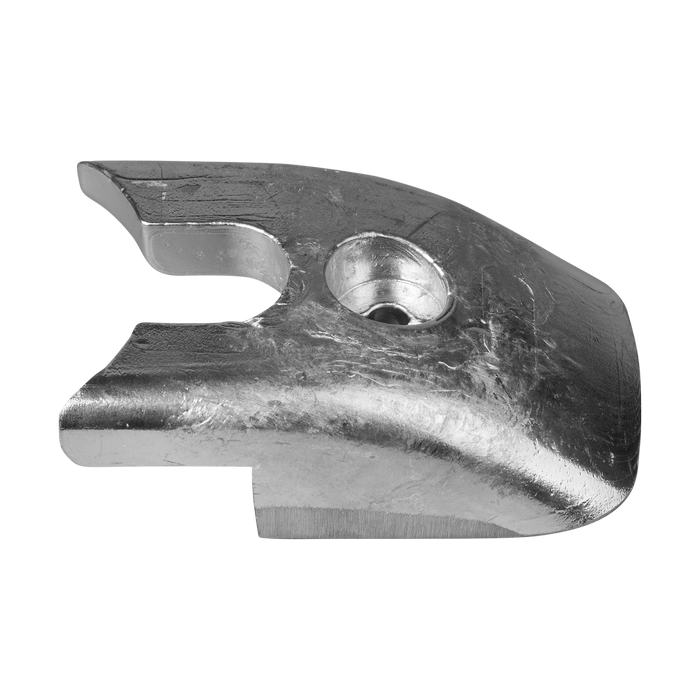

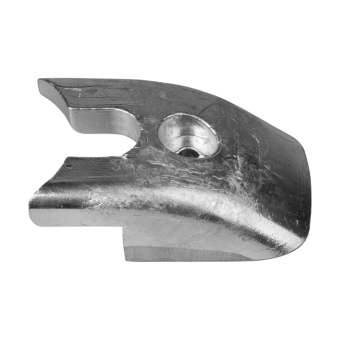

Tecnoseal WKCKK3 Walter Keel Cooler Zinc Anode 133x88x42 mm
The Tecnoseal WKCKK3 is a zinc sacrificial anode designed for compatible Walter marine keel cooling systems. It helps protect metallic components of the keel cooler against galvanic corrosion by providing a replaceable zinc element.
The anode features a substantial contoured body with curved surfaces, rounded edges and a shaped side cutout. Its overall dimensions are 133 mm (5.24 in) in length, 88 mm (3.46 in) in width and 42 mm (1.65 in) in height.
A recessed central mounting hole measuring 9 mm (0.35 in) in diameter provides the fixing point for installation on the corresponding Walter keel cooler assembly. The contoured profile and mounting arrangement should be matched to the existing component when selecting a replacement.
Weighing 1.45 kg (3.20 lbs), the Tecnoseal WKCKK3 is a sacrificial corrosion protection component rather than a complete keel cooler or heat exchanger.
Key Features
- Manufacturer: Tecnoseal
- Product Code: WKCKK3
- Product Type: Sacrificial keel cooler anode
- Material: Zinc
- Application: Walter marine keel coolers
- Shape: Contoured body with curved surfaces and shaped side cutout
- Length (a): 133 mm
- Width (b): 88 mm
- Height (h): 42 mm
- Mounting Hole Diameter (Ø): 9 mm
- Weight: 1.45 kg / 1450 g
- EAN: 8059617818234
Technical Specifications
Parameter Metric Imperial Length (a) 133 mm 5.24 in Width (b) 88 mm 3.46 in Height (h) 42 mm 1.65 in Mounting Hole Diameter (Ø) 9 mm 0.35 in Weight 1.45 kg 3.20 lbs Material Zinc –
Walter Keel Cooler Application
The Tecnoseal WKCKK3 is intended for Walter marine keel cooling systems requiring a shaped zinc anode with overall dimensions of 133 × 88 × 42 mm and a 9 mm central mounting hole.
Its sacrificial zinc construction helps reduce galvanic corrosion of compatible metallic components exposed to water. The zinc gradually corrodes during operation, helping protect the associated keel cooler components.
Mounting Profile and Dimensions
The WKCKK3 incorporates a distinctive contoured profile with a curved upper surface, recessed central mounting area and side cutout. These features distinguish it from conventional rectangular bar anodes.
The manufacturer specifies a 9 mm mounting hole diameter. When replacing the anode, compare its complete body shape, dimensions and mounting position against the original Walter keel cooler component.
Inspection and Replacement
As a sacrificial anode, the WKCKK3 gradually loses zinc material while providing corrosion protection. Periodic inspection helps assess anode consumption and determine when replacement is necessary.
Before installing a replacement, verify the mounting hole alignment, body profile and overall dimensions to ensure compatibility with the existing keel cooler assembly.
Supply: One Tecnoseal WKCKK3 zinc sacrificial keel cooler anode.
-
