Tecnoseal TKA01 / TKA02 De-Icer Aerator Anodes

Name: Tecnoseal TKA01 / TKA02 De-Icer Aerator Anodes
SKU: Tecnoseal TKA01

ID 1406139

$ 27.79

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Size:

12.7
16

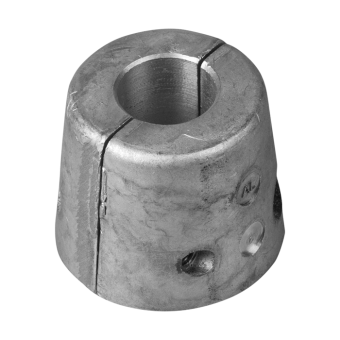

Tecnoseal TKA01 and TKA02 sacrificial anodes are designed for corrosion protection of compatible marine de-icer and aerator equipment. Featuring a split, tapered body with mounting holes, both models measure 38 mm (1.50 in) in outside diameter and 32 mm (1.26 in) in height. The TKA01 series has a 16 mm (5/8 in) central opening, while the TKA02 series has a 12.7 mm (1/2 in) opening. Each version is available in zinc, aluminium or magnesium, with individual weights ranging from 0.04 to 0.17 kg depending on material and model. These replaceable anodes help protect associated metal components against galvanic corrosion.

Description
Ask a Question

Tecnoseal TKA01 / TKA02 De-Icer Aerator Anodes – Zinc, Aluminium & Magnesium

The Tecnoseal TKA01 and TKA02 De-Icer Aerator Anodes are sacrificial corrosion protection components designed for compatible marine de-icer and aerator equipment. Available in zinc, aluminium and magnesium, these anodes help protect associated metallic parts against galvanic corrosion in aquatic environments.

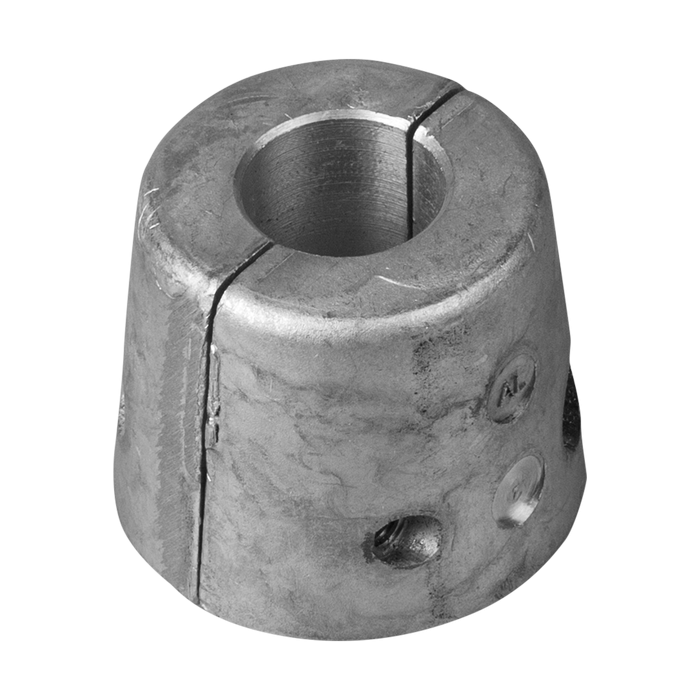

Both series feature a split, tapered cylindrical body with mounting holes. The outside diameter is 38 mm (1.50 in), and the overall height is 32 mm (1.26 in). The primary difference between the two series is the central opening diameter: 16 mm (5/8 in) for TKA01 and 12.7 mm (1/2 in) for TKA02.

Six individual variants are available, allowing selection of the appropriate mounting size and sacrificial anode material. Individual weights range from 0.04 kg for magnesium versions to 0.17 kg for the TKA02 zinc version.

Key Features

Manufacturer: Tecnoseal
Product Type: Sacrificial de-icer and aerator anode
Application: Compatible marine de-icer and aerator equipment
Available Series: TKA01 and TKA02
Available Materials: Zinc, aluminium and magnesium
Body Configuration: Split, tapered cylindrical anode with mounting holes
Height (h): 32 mm (1.26 in)
Outside Diameter (Ø): 38 mm (1.50 in)
TKA01 Opening (Ø1): 16 mm (5/8 in)
TKA02 Opening (Ø1): 12.7 mm (1/2 in)
Individual Weight: 0.04–0.17 kg depending on model and material

Technical Specifications

Model	Material	Height	Outside Ø	Opening Ø1	Weight
TKA01	Zinc	32 mm	38 mm	16 mm	0.15 kg
TKA01AL	Aluminium	32 mm	38 mm	16 mm	0.06 kg
TKA01MG	Magnesium	32 mm	38 mm	16 mm	0.04 kg
TKA02	Zinc	32 mm	38 mm	12.7 mm	0.17 kg
TKA02AL	Aluminium	32 mm	38 mm	12.7 mm	0.06 kg
TKA02MG	Magnesium	32 mm	38 mm	12.7 mm	0.04 kg

TKA01 Series – 16 mm Opening

The Tecnoseal TKA01 series features a 16 mm (5/8 in) central opening and is available in three sacrificial anode materials. All three versions measure 38 mm in outside diameter and 32 mm in height.

TKA01 – Zinc: 0.15 kg (0.33 lbs), EAN 8052744984056
TKA01AL – Aluminium: 0.06 kg (0.13 lbs), EAN 8052744984063
TKA01MG – Magnesium: 0.04 kg (0.09 lbs), EAN 8052744984070

TKA02 Series – 12.7 mm Opening

The Tecnoseal TKA02 series uses the same outside diameter and height as TKA01 but features a smaller 12.7 mm (1/2 in) central opening. Zinc, aluminium and magnesium versions are available.

TKA02 – Zinc: 0.17 kg (0.37 lbs), EAN 8052744984087
TKA02AL – Aluminium: 0.06 kg (0.13 lbs), EAN 8052744984094
TKA02MG – Magnesium: 0.04 kg (0.09 lbs), EAN 8052744984100

Choosing the Correct Anode

When selecting a replacement, first verify the required central opening diameter. Choose the TKA01 series for 16 mm mounting applications or TKA02 for 12.7 mm mounting applications.

Next, select the appropriate sacrificial anode material according to the equipment manufacturer's requirements and operating water conditions. Zinc, aluminium and magnesium have different electrochemical properties and should not be substituted without confirming suitability.

Installation and Maintenance

The split-body configuration allows the anode to be positioned around a compatible mounting component. The mounting arrangement must provide secure attachment and appropriate electrical contact with the metal requiring protection.

During service, the sacrificial material gradually wears away. Periodic inspection is recommended to assess consumption and determine when replacement is required.

Supply: One Tecnoseal de-icer aerator sacrificial anode in the selected size and material.
