Tecnoseal GRIN-2 Grindex Submersible Pump Zinc Anode 93x42x15 mm

Name: Tecnoseal GRIN-2 Grindex Submersible Pump Zinc Anode 93x42x15 mm
SKU: Tecnoseal GRIN-2
Price: 112.46000024903 USD
Availability: InStock

ID 1406148

$ 112.46

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal GRIN-2 is a zinc sacrificial anode designed for corrosion protection of compatible Grindex submersible water pumps. Its curved, segment-shaped body measures 93 mm (3.66 in) in length, 42 mm (1.65 in) in width and 15 mm (0.59 in) in height. The anode features two recessed mounting holes with a 50 mm (1.97 in) centre-to-centre spacing and specified diameters of 15 mm (0.59 in) and 7 mm (0.28 in). Weighing 0.29 kg (290 g), it provides a replaceable zinc element to help protect associated metallic pump components against galvanic corrosion.

Description
Ask a Question

Tecnoseal GRIN-2 Grindex Submersible Pump Zinc Anode 93x42x15 mm

The Tecnoseal GRIN-2 is a zinc sacrificial anode designed for compatible Grindex submersible water pumps. It helps reduce galvanic corrosion of associated metallic pump components exposed to water by providing a replaceable sacrificial zinc element.

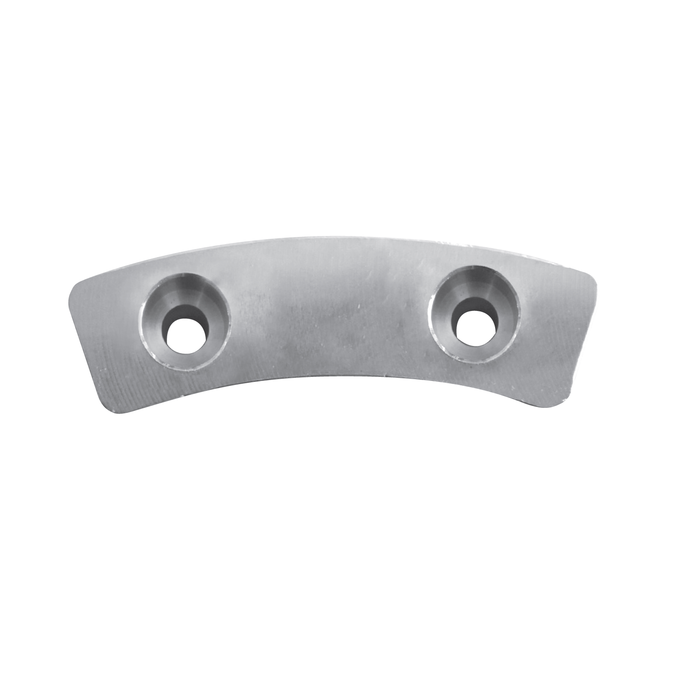

The anode features a curved, segment-shaped body with two recessed mounting holes. Its overall dimensions are 93 mm (3.66 in) in length, 42 mm (1.65 in) in width and 15 mm (0.59 in) in height.

The mounting arrangement features a 50 mm (1.97 in) centre-to-centre distance between the two holes, with specified diameters of 15 mm (0.59 in) and 7 mm (0.28 in). These dimensions are important when matching the anode to the existing Grindex pump installation.

Weighing 0.29 kg (0.64 lbs), the Tecnoseal GRIN-2 provides sacrificial corrosion protection and is intended as a replacement anode rather than a complete pump component.

Key Features

Manufacturer: Tecnoseal
Product Code: GRIN-2
Product Type: Sacrificial submersible pump anode
Material: Zinc
Application: Grindex submersible water pumps
Shape: Curved segment with two recessed mounting holes
Overall Length (l): 93 mm
Width (a): 42 mm
Height (h): 15 mm
Mounting Hole Spacing (i): 50 mm
Recess Diameter (Ø): 15 mm
Mounting Hole Diameter (Ø1): 7 mm
Weight: 0.29 kg / 290 g
EAN: 8052744987286

Technical Specifications

Parameter	Metric	Imperial
Overall Length (l)	93 mm	3.66 in
Width (a)	42 mm	1.65 in
Height (h)	15 mm	0.59 in
Mounting Hole Spacing (i)	50 mm	1.97 in
Recess Diameter (Ø)	15 mm	0.59 in
Mounting Hole Diameter (Ø1)	7 mm	0.28 in
Weight	0.29 kg	0.64 lbs
Material	Zinc	–

Grindex Submersible Pump Application

The Tecnoseal GRIN-2 is intended for Grindex submersible water pumps requiring a curved zinc sacrificial anode with overall dimensions of 93 × 42 × 15 mm and two mounting holes spaced 50 mm apart.

Its zinc material acts as a sacrificial element, helping protect associated metallic components against galvanic corrosion when installed with the required electrical contact.

Mounting Configuration

The GRIN-2 incorporates two recessed mounting holes positioned along its curved body. The mounting arrangement has a centre-to-centre spacing of 50 mm, with a 15 mm recess diameter and a 7 mm fastening hole diameter.

Before ordering, verify the dimensions, hole spacing and body curvature against the existing anode. Compatibility with individual Grindex pump models should be confirmed using the pump manufacturer's documentation.

Inspection and Replacement

The zinc material gradually wears away as it provides sacrificial corrosion protection. Periodic inspection helps determine when the anode requires replacement.

When installing a replacement, follow the applicable Grindex pump maintenance instructions and ensure that the mounting arrangement matches the original component.

Supply: One Tecnoseal GRIN-2 zinc sacrificial anode for compatible Grindex submersible pumps.
