The Tecnoseal 00170 is a zinc sacrificial plate anode designed for standing buoy applications, featuring an integrated stainless steel strap insert with a 22 mm (0.87 in) mounting hole. The assembly measures 86 mm (3.39 in) in overall length, with a 40 × 40 mm zinc body, 15 mm height and a 20 mm dimension (b) identified in the mounting layout. Weighing 0.17 kg (170 g), the anode combines a replaceable zinc corrosion protection element with a stainless steel insert for attachment to compatible stationary buoy equipment.
- Description
- Ask a Question
-

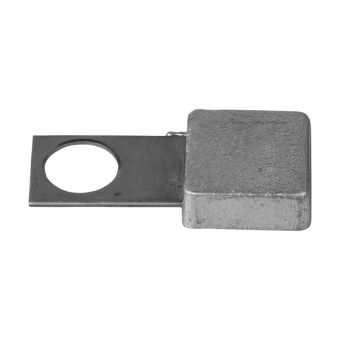

Tecnoseal 00170 Standing Buoy Zinc Plate Anode with Stainless Steel Insert
The Tecnoseal 00170 is a zinc sacrificial plate anode designed for standing buoy applications. It features a zinc body with an integrated stainless steel strap insert, providing a mounting arrangement for compatible buoy equipment while helping protect associated metallic components against galvanic corrosion.
The anode has an overall length of 86 mm (3.39 in). The zinc plate body measures 40 × 40 mm (1.57 × 1.57 in) with a height of 15 mm (0.59 in). The stainless steel insert extends from the zinc body and incorporates a 22 mm (0.87 in) mounting hole.
The mounting layout also includes a dimension b of 20 mm (0.79 in). The complete zinc and stainless steel assembly weighs 0.17 kg (0.37 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00170
- Product Type: Sacrificial plate anode for standing buoys
- Anode Material: Zinc
- Insert Material: Stainless steel
- Application: Standing buoy equipment
- Configuration: Zinc plate with integrated stainless steel strap
- Overall Length (l): 86 mm
- Zinc Body Width (a): 40 mm
- Zinc Body Length (c): 40 mm
- Additional Dimension (b): 20 mm
- Height (h): 15 mm
- Mounting Hole Diameter (Ø): 22 mm
- Weight: 0.17 kg / 170 g
- EAN: 8033837060239
Technical Specifications
Parameter Metric Imperial Overall Length (l) 86 mm 3.39 in Body Width (a) 40 mm 1.57 in Mounting Dimension (b) 20 mm 0.79 in Body Length (c) 40 mm 1.57 in Height (h) 15 mm 0.59 in Mounting Hole Diameter (Ø) 22 mm 0.87 in Weight 0.17 kg 0.37 lbs Anode Material Zinc – Insert Material Stainless Steel –
Standing Buoy Application
The Tecnoseal 00170 is intended for standing buoy installations requiring a zinc plate anode with an integrated stainless steel mounting strap.
The zinc body acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when the anode is correctly installed and electrically connected to the equipment requiring protection.
Stainless Steel Insert and Mounting

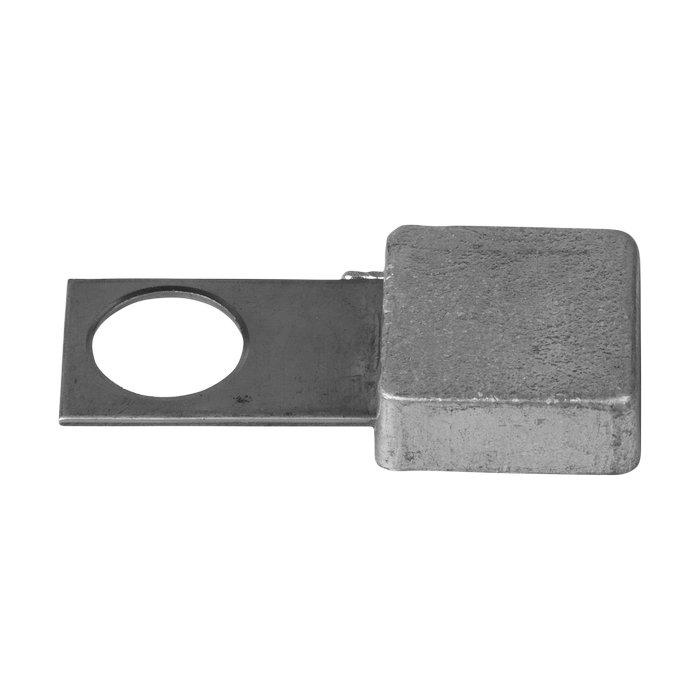

The anode incorporates a stainless steel strap extending from the zinc plate body. The exposed strap features a 22 mm diameter hole for attachment to the corresponding buoy fitting.
The overall assembly length is 86 mm, while the zinc body measures 40 × 40 mm with a 15 mm height. The additional mounting dimension b is 20 mm, as indicated in the manufacturer drawing.
Before installation, confirm that the strap arrangement, mounting hole diameter and overall dimensions match the existing buoy hardware.
Inspection and Replacement
The zinc material is gradually consumed as it provides sacrificial corrosion protection. Periodic inspection allows the remaining anode material and condition of the stainless steel insert to be assessed.
Replace the anode when it has become sufficiently consumed or when its condition no longer meets the installation requirements.
Supply: One Tecnoseal 00170 zinc sacrificial plate anode with integrated stainless steel insert.
-
