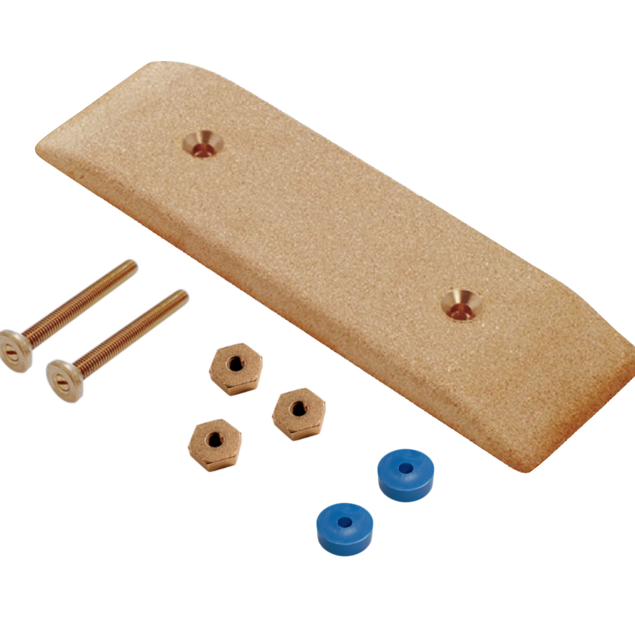

Tecnoseal PMSEAGROUND Marine Grounding Plates – Porous Bronze, 2-Hole

Name: Tecnoseal PMSEAGROUND Marine Grounding Plates – Porous Bronze, 2-Hole
SKU: Tecnoseal PMSEAGROUND0

ID 1406149

$ 350.39

1-2 weeks delivery time

Size:

155x50x13
200x65x13
300x80x12

Item:

1.00 m²
1.80 m²
3.00 m²

Tecnoseal PMSEAGROUND marine grounding plates are manufactured from porous bronze alloy for grounding onboard electrical devices. Available in three sizes—155 × 50 × 13 mm, 200 × 65 × 13 mm and 300 × 80 × 12 mm—each plate features two mounting holes with centre-to-centre distances of 68, 103 or 216 mm respectively. The manufacturer's listed grounding surface ratings are 1.00, 1.80 and 3.00 m², with plate weights ranging from 0.56 to 1.74 kg. These bronze grounding plates are intended for installation as part of compatible vessel electrical grounding systems.

Description
Ask a Question

Tecnoseal PMSEAGROUND Marine Grounding Plates – Porous Bronze, 2-Hole

The Tecnoseal PMSEAGROUND series consists of porous bronze grounding plates designed for onboard marine electrical devices. These plates provide a conductive grounding surface for compatible vessel electrical grounding installations.

Manufactured from porous bronze alloy, the plates feature an elongated rectangular profile with two mounting holes. Three sizes are available, with lengths ranging from 155 to 300 mm and manufacturer-listed grounding surface ratings of 1.00, 1.80 and 3.00 m².

The PMSEAGROUND series includes models PMSEAGROUND0, PMSEAGROUND1 and PMSEAGROUND2. Each version differs in overall dimensions, mounting hole spacing, weight and effective grounding surface rating.

Key Features

Manufacturer: Tecnoseal
Product Series: PMSEAGROUND
Product Type: Marine electrical grounding plate
Material: Porous bronze alloy
Application: Grounding of onboard electrical devices
Configuration: Rectangular plate with two mounting holes
Available Lengths: 155, 200 and 300 mm
Available Widths: 50, 65 and 80 mm
Thickness: 12 or 13 mm
Grounding Surface Ratings: 1.00, 1.80 and 3.00 m² (manufacturer-listed)
Weight Range: 0.56–1.74 kg

Technical Specifications

Specification	PMSEAGROUND0	PMSEAGROUND1	PMSEAGROUND2
Length (l)	155 mm	200 mm	300 mm
Width (a)	50 mm	65 mm	80 mm
Height (h)	13 mm	13 mm	12 mm
Hole Spacing (i)	68 mm	103 mm	216 mm
Mounting Holes	2	2	2
Grounding Surface Rating	1.00 m²	1.80 m²	3.00 m²
Weight	0.56 kg	0.88 kg	1.74 kg
Material	Porous Bronze	Porous Bronze	Porous Bronze

Available Models

Tecnoseal PMSEAGROUND0 – Compact grounding plate measuring 155 × 50 × 13 mm. Features two mounting holes spaced 68 mm apart, a manufacturer-listed grounding surface rating of 1.00 m² and a weight of 0.56 kg (1.23 lbs). EAN: 8033837068105.

Tecnoseal PMSEAGROUND1 – Medium-sized grounding plate measuring 200 × 65 × 13 mm. Features two mounting holes spaced 103 mm apart, a manufacturer-listed grounding surface rating of 1.80 m² and a weight of 0.88 kg (1.94 lbs). EAN: 8033837068112.

Tecnoseal PMSEAGROUND2 – Large grounding plate measuring 300 × 80 × 12 mm. Features two mounting holes spaced 216 mm apart, a manufacturer-listed grounding surface rating of 3.00 m² and a weight of 1.74 kg (3.84 lbs). EAN: 8033837068129.

Porous Bronze Construction

The grounding plates are made from a porous bronze alloy, as specified by the manufacturer. This material provides the conductive structure used in the plate's marine grounding application.

The listed surface ratings are manufacturer specifications and should not be confused with the geometric area calculated from the external length and width of each plate.

Marine Electrical Grounding Applications

Tecnoseal PMSEAGROUND plates are intended for grounding onboard electrical devices as part of a suitable marine electrical installation.

The appropriate model should be selected according to the required grounding system design, manufacturer-listed surface rating, available installation space and mounting dimensions.

Installation and Selection

Each plate includes two mounting holes. The manufacturer specifies centre-to-centre distances of 68 mm for PMSEAGROUND0, 103 mm for PMSEAGROUND1 and 216 mm for PMSEAGROUND2.

Before installation, verify the mounting arrangement and required grounding connections. Electrical connections and installation procedures should follow the vessel equipment manufacturer's specifications and applicable marine electrical standards.

Supply: One Tecnoseal porous bronze marine grounding plate in the selected size.
