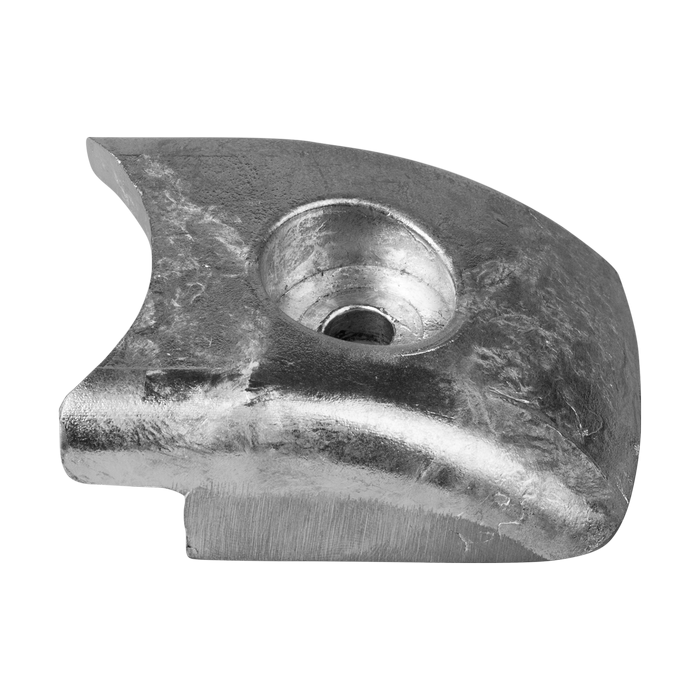

The Tecnoseal WKCKK1 is a zinc sacrificial anode designed for corrosion protection of compatible Walter marine keel coolers. Its shaped body measures 81 mm (3.19 in) in length, 65 mm (2.56 in) in width and 27 mm (1.06 in) in height, with a 10 mm (0.39 in) central mounting hole. The anode features a contoured profile with a recessed mounting area for installation on the corresponding keel cooler assembly. Weighing 0.47 kg (470 g), it provides a replaceable zinc element that helps protect metallic cooler components against galvanic corrosion.
- Description
- Ask a Question
-

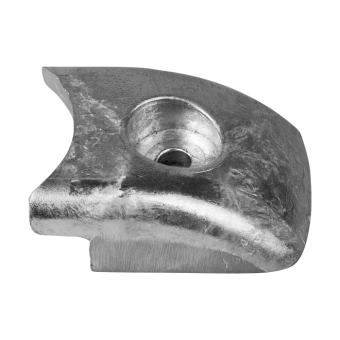

Tecnoseal WKCKK1 Walter Keel Cooler Zinc Anode 81x65x27 mm
The Tecnoseal WKCKK1 is a zinc sacrificial anode designed for compatible Walter marine keel cooling systems. It helps protect metallic components of the keel cooler against galvanic corrosion by providing a replaceable sacrificial zinc element.
The anode features a contoured body with a rounded profile, shaped side sections and a recessed central mounting area. Its overall dimensions are 81 mm (3.19 in) in length, 65 mm (2.56 in) in width and 27 mm (1.06 in) in height.
A 10 mm (0.39 in) central mounting hole allows the anode to be secured to the corresponding keel cooler assembly. The shaped mounting profile distinguishes the WKCKK1 from conventional rectangular or flat bar anodes.
Weighing 0.47 kg (1.04 lbs), the Tecnoseal WKCKK1 provides sacrificial corrosion protection for compatible Walter keel cooler installations.
Key Features
- Manufacturer: Tecnoseal
- Product Code: WKCKK1
- Product Type: Sacrificial keel cooler anode
- Material: Zinc
- Application: Walter marine keel coolers
- Shape: Contoured body with recessed central mounting area
- Length (a): 81 mm
- Width (b): 65 mm
- Height (h): 27 mm
- Mounting Hole Diameter (Ø): 10 mm
- Weight: 0.47 kg / 470 g
- EAN: 8059617818210
Technical Specifications
Parameter Metric Imperial Length (a) 81 mm 3.19 in Width (b) 65 mm 2.56 in Height (h) 27 mm 1.06 in Mounting Hole Diameter (Ø) 10 mm 0.39 in Weight 0.47 kg 1.04 lbs Material Zinc –
Walter Keel Cooler Application
The Tecnoseal WKCKK1 is intended for Walter keel cooling systems requiring a shaped zinc anode measuring 81 × 65 × 27 mm with a 10 mm central mounting hole.
Its sacrificial zinc construction helps reduce galvanic corrosion of compatible metallic components exposed to water during normal operation. The anode serves as a replaceable corrosion protection element rather than a complete cooling component.
Mounting Profile and Dimensions
The WKCKK1 has a contoured profile with curved ends, shaped side sections and a recessed central mounting opening. This configuration is designed to match the corresponding Walter keel cooler mounting arrangement.
The central mounting hole measures 10 mm in diameter. When selecting a replacement, compare the complete anode profile, overall dimensions and mounting arrangement with the existing component.
Inspection and Replacement
The zinc material gradually loses mass while providing sacrificial corrosion protection. Periodic inspection helps determine when the anode should be replaced.
Before installing a replacement WKCKK1, verify that the mounting surfaces and hole alignment correspond to the original Walter keel cooler installation.
Supply: One Tecnoseal WKCKK1 zinc sacrificial keel cooler anode.
-
