Tecnoseal GRIN-1 Grindex Submersible Pump Zinc Anode 78x22x30 mm

Name: Tecnoseal GRIN-1 Grindex Submersible Pump Zinc Anode 78x22x30 mm
SKU: Tecnoseal GRIN-1
Price: 97.0826640768 USD
Availability: InStock

ID 1406147

$ 97.08

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal GRIN-1 is a zinc sacrificial anode designed for corrosion protection of compatible Grindex submersible water pumps. Its curved, segmented body measures 78 mm (3.07 in) in overall length, with a secondary length of 72 mm (2.83 in), a profile dimension (a) of 22 mm (0.87 in), and a height of 30 mm (1.18 in). The central mounting arrangement features diameters of 17 mm (0.67 in) and 10.5 mm (0.41 in). Weighing 0.35 kg (350 g), this anode provides a replaceable zinc element to help protect associated metallic pump components against galvanic corrosion.

Description
Ask a Question

Tecnoseal GRIN-1 Grindex Submersible Pump Zinc Anode 78x22x30 mm

The Tecnoseal GRIN-1 is a zinc sacrificial anode designed for compatible Grindex submersible water pumps. It provides a replaceable corrosion protection element to help reduce galvanic corrosion of associated metallic pump components exposed to water.

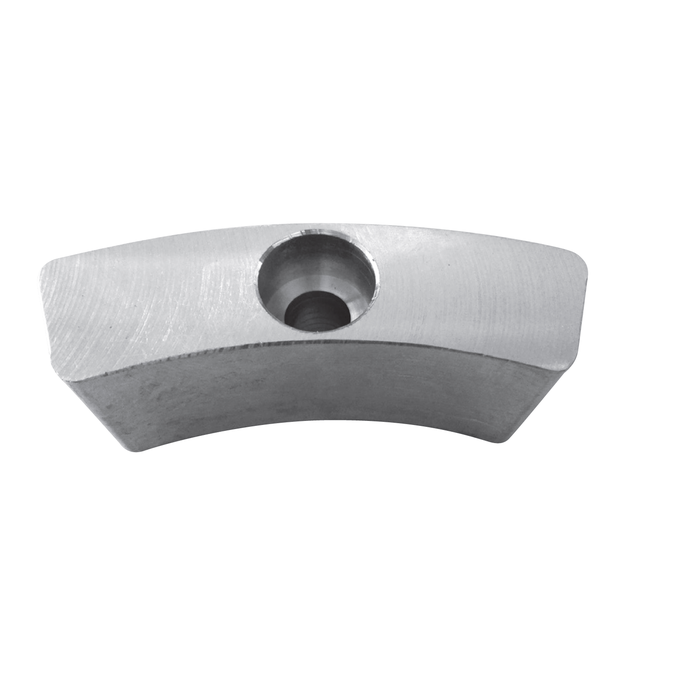

The anode features a curved, segmented body with a central recessed mounting opening. Its overall length is 78 mm (3.07 in), with an additional length dimension of 72 mm (2.83 in), a profile dimension of 22 mm (0.87 in), and a height of 30 mm (1.18 in).

The mounting arrangement incorporates two specified diameters: 17 mm (0.67 in) and 10.5 mm (0.41 in). These dimensions should be checked against the existing pump anode before replacement.

Weighing 0.35 kg (0.77 lbs), the Tecnoseal GRIN-1 is intended as a sacrificial corrosion protection component rather than a complete pump assembly.

Key Features

Manufacturer: Tecnoseal
Product Code: GRIN-1
Product Type: Sacrificial submersible pump anode
Material: Zinc
Application: Grindex submersible water pumps
Shape: Curved segment with recessed central mounting opening
Overall Length (l): 78 mm
Secondary Length (l1): 72 mm
Profile Dimension (a): 22 mm
Height (h): 30 mm
Mounting Diameter (Ø): 17 mm
Mounting Diameter (Ø1): 10.5 mm
Weight: 0.35 kg / 350 g
EAN: 8052744987293

Technical Specifications

Parameter	Metric	Imperial
Overall Length (l)	78 mm	3.07 in
Secondary Length (l1)	72 mm	2.83 in
Profile Dimension (a)	22 mm	0.87 in
Height (h)	30 mm	1.18 in
Mounting Diameter (Ø)	17 mm	0.67 in
Mounting Diameter (Ø1)	10.5 mm	0.41 in
Weight	0.35 kg	0.77 lbs
Material	Zinc	–

Grindex Submersible Pump Application

The Tecnoseal GRIN-1 is intended for compatible Grindex submersible water pumps requiring a curved zinc sacrificial anode with the specified dimensions and mounting configuration.

The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic pump components when correctly installed with the required electrical contact.

Mounting Profile and Dimensions

The GRIN-1 features a curved profile with a recessed central mounting opening. The manufacturer drawing identifies two mounting diameters, Ø17 mm and Ø1 10.5 mm, together with the overall and secondary length dimensions.

Before ordering, compare the dimensions, body curvature and mounting configuration with the existing anode. Specific Grindex pump model compatibility is not identified in the available specifications.

Inspection and Replacement

As a sacrificial anode, the GRIN-1 gradually loses zinc material during service. Periodic inspection helps determine when replacement is necessary.

For installation or replacement, follow the applicable Grindex pump maintenance instructions and ensure that the mounting arrangement matches the original component.

Supply: One Tecnoseal GRIN-1 zinc sacrificial anode for compatible Grindex submersible pumps.
