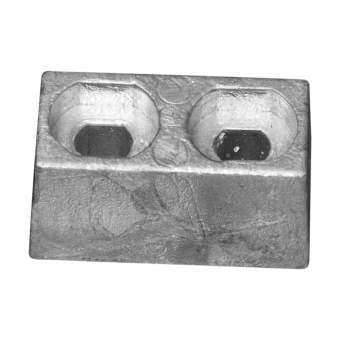

Tecnoseal 6E5-45251-00 Yamaha 115–200 HP Engine Bracket Anode Block

Name: Tecnoseal 6E5-45251-00 Yamaha 115–200 HP Engine Bracket Anode Block
SKU: Tecnoseal 01105

ID 1405421

$ 27.04

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

150 g
60 g
40 g

The Tecnoseal 01105 series consists of sacrificial engine bracket anode blocks designed for Yamaha 115–200 HP outboard motors manufactured up to 1987, replacing OEM part number 6E5-45251-00. Each rectangular block features two recessed mounting holes and helps protect metallic engine bracket components against galvanic corrosion. It measures 48 mm in length and 24 mm in height, with additional dimensions of 23 mm (i), 6.5 mm (a), 10 mm (b) and 16 mm (c). The anode is available in zinc (01105, 150 g), aluminium (01105AL, 60 g) and magnesium (01105MG, 40 g). All three versions share the same dimensions and mounting configuration. The design also corresponds to Tecnoseal reference 01203.

Description
Ask a Question

Tecnoseal 6E5-45251-00 Yamaha 115–200 HP Engine Bracket Anode Block

The Tecnoseal 01105 series consists of sacrificial anode blocks designed for the engine brackets of Yamaha 115–200 HP outboard motors manufactured up to 1987. Compatible with Yamaha OEM part number 6E5-45251-00, these replacement anodes help protect metallic engine bracket components against galvanic corrosion.

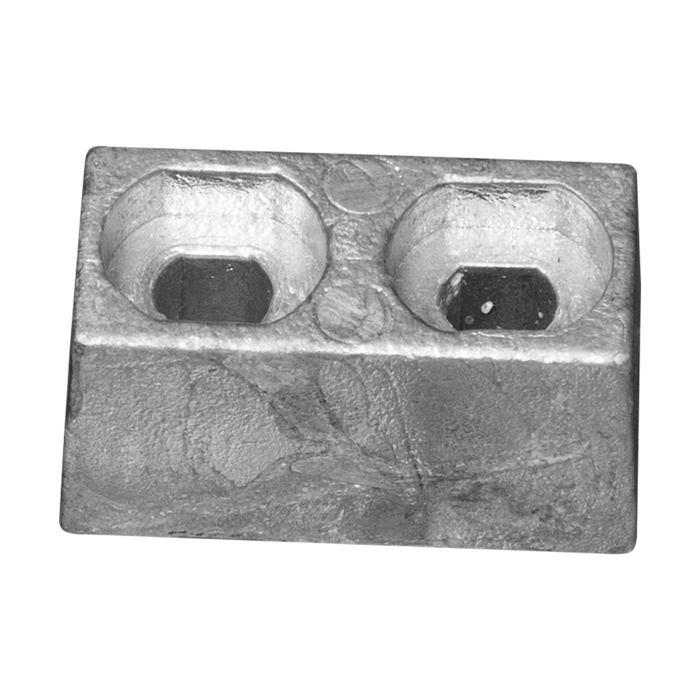

Each anode features a rectangular block design with two recessed mounting holes for installation on compatible Yamaha outboard brackets. The block measures 48 mm (1.89 in) in length and 24 mm (0.94 in) in height, with a 23 mm (0.91 in) mounting dimension (i). Additional dimensions are 6.5 mm (a), 10 mm (b) and 16 mm (c). Available in zinc, aluminium and magnesium, the three versions share identical dimensions and mounting geometry, with different weights depending on the material. The component also corresponds to Tecnoseal reference 01203.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Engine Bracket Anode Block
Compatible Manufacturer	Yamaha
Compatible Outboards	115–200 HP
Model Years	Up to 1987
Yamaha OEM Reference	6E5-45251-00
Alternative Tecnoseal Reference	01203
Available Materials	Zinc, Aluminium, Magnesium
Mounting Configuration	Two recessed mounting holes

Available Versions

Tecnoseal Code	Material	Weight	EAN
01105	Zinc	0.15 kg (0.33 lbs)	8033837065104
01105AL	Aluminium	0.06 kg (0.13 lbs)	8059617815592
01105MG	Magnesium	0.04 kg (0.09 lbs)	8059617818258

Dimensions and Mounting Specifications

Length (l)	48 mm (1.89 in)
Height (h)	24 mm (0.94 in)
Mounting Dimension (i)	23 mm (0.91 in)
Dimension (a)	6.50 mm (0.26 in)
Dimension (b)	10 mm (0.39 in)
Dimension (c)	16 mm (0.63 in)

Compatibility and Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 115–200 HP
Production Period: Up to 1987
Yamaha OEM Part Number: 6E5-45251-00
Zinc Version: Tecnoseal 01105
Aluminium Version: Tecnoseal 01105AL
Magnesium Version: Tecnoseal 01105MG
Alternative Tecnoseal Part Number: 01203

Key Features

Engine bracket sacrificial anode for Yamaha 115–200 HP outboards manufactured up to 1987.
Compatible with Yamaha OEM part number 6E5-45251-00.
Rectangular block design with two recessed mounting holes.
Helps protect metallic outboard engine bracket components against galvanic corrosion.
Available in zinc, aluminium and magnesium versions.
Overall block length: 48 mm.
Overall block height: 24 mm.
Mounting dimension (i): 23 mm.
Additional dimensions: a = 6.5 mm, b = 10 mm and c = 16 mm.
Also identified by Tecnoseal reference 01203.

Compatibility Note: Before ordering, verify the Yamaha outboard model, production year, OEM part number and existing anode dimensions. Select the appropriate anode material for the vessel's operating water conditions.
