Tecnoseal USA Universal Zinc Pencil Anodes Complete with Brass Plugs – NPT Thread

Tecnoseal USA Universal Zinc Pencil Anodes Complete with Brass Plugs – NPT Thread

Tecnoseal USA Universal zinc pencil anodes are sacrificial corrosion protection components supplied complete with brass mounting plugs. Designed for compatible marine engine cooling systems, heat exchangers and other water-cooled marine equipment, these assemblies help protect metallic components exposed to cooling water against galvanic corrosion.

The range includes 17 Tecnoseal models with cylindrical zinc rods measuring 6.35, 9.5, 12.7, 16 or 19 mm in diameter. Available zinc rod lengths range from 19 mm to 92 mm, providing different configurations for installations with varying space requirements.

Each assembly combines a replaceable zinc element with a brass mounting plug featuring a tapered NPT external thread. Depending on the model, mounting connections are available in 1/8", 1/4", 3/8", 1/2" and 3/4" NPT sizes. The brass plug head dimensions range from 11 to 27 mm.

All models use the Tecnoseal 2T pencil configuration and are supplied individually as complete zinc anode and brass plug assemblies. Individual weights range from 0.03 kg to 0.59 kg.

Key Features

• Manufacturer: Tecnoseal
• Product Type: USA Universal sacrificial pencil anode
• Anode Material: Zinc
• Plug Material: Brass
• Configuration: Complete with Brass Plug
• Available Models: 17
• Zinc Rod Diameters: 6.35, 9.5, 12.7, 16 and 19 mm
• Zinc Rod Length Range: 19–92 mm
• External Thread Type: NPT tapered pipe thread
• Available Threads: 1/8", 1/4", 3/8", 1/2" and 3/4" NPT
• Brass Plug Head Dimensions: 11–27 mm
• Pencil Type: 2T
• Weight Range: 0.03–0.59 kg
• Supply: One zinc anode complete with brass mounting plug

Available Models and Technical Specifications

Available Diameter and Thread Configurations

Ø6.35 mm (1/4") – 1/8" NPT

The Tecnoseal TEC-E00 features a compact 6.35 mm (1/4") diameter zinc rod measuring 51 mm (2.01") in length. It is supplied with a brass mounting plug featuring a 1/8" NPT external thread and an 11 mm (7/16") head dimension.

The complete assembly weighs 0.03 kg (0.07 lbs), uses the 2T configuration and is listed as equivalent to Tecnoseal TEC-SD1.

• TEC-E00: Ø6.35 x 51 mm, 1/8" NPT, 30 g
• Equivalent Reference: TEC-SD1
• EAN: 8059617819064

Ø9.5 mm (3/8") – 1/4" and 3/8" NPT

The 9.5 mm diameter group includes four models with zinc rod lengths of 19, 44, 51 and 64 mm. The TEC-E0, TEC-E0A and TEC-E0B use 1/4" NPT brass mounting plugs with 12.7 mm head dimensions. The TEC-E1H features a larger 3/8" NPT connection and a 17.5 mm plug head.

• TEC-E0: Ø9.5 x 44 mm, 1/4" NPT, 40 g

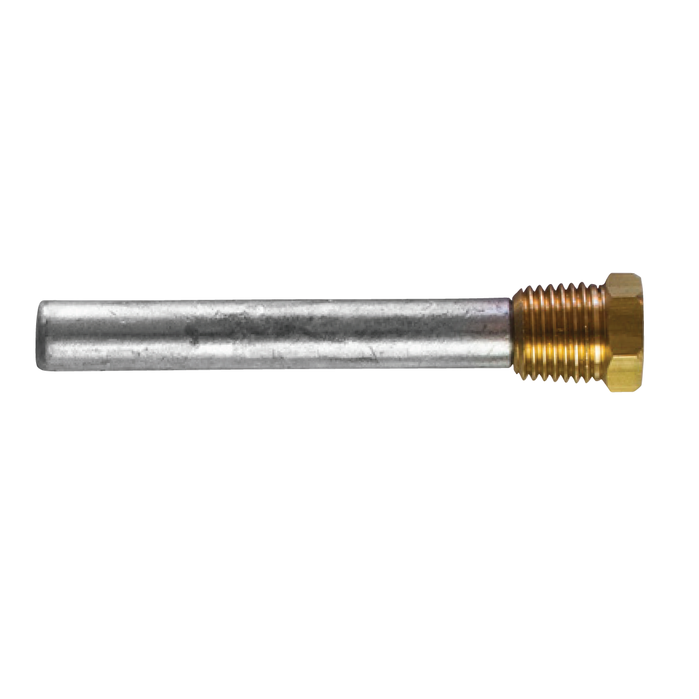

• TEC-E0A: Ø9.5 x 64 mm, 1/4" NPT, 50 g
• TEC-E0B: Ø9.5 x 19 mm, 1/4" NPT, 30 g
• TEC-E1H: Ø9.5 x 51 mm, 3/8" NPT, 50 g

The manufacturer lists TEC-E0 as equivalent to TEC-SD2, TEC-E0A as equivalent to TEC-SD6 and TEC-E0B as equivalent to TEC-SD3.

Ø12.7 mm (1/2") – 3/8" NPT

The 12.7 mm diameter range includes five models with a common 3/8" NPT mounting connection. Available zinc rod lengths are 25, 31.8, 38, 44 and 51 mm. Most versions feature a 17.5 mm brass plug head, while TEC-E1F has a 19 mm head dimension.

Each assembly weighs 0.07 kg (0.15 lbs). Different rod lengths allow selection according to the dimensions of the original component and available installation space.

• TEC-E1: Ø12.7 x 51 mm, 3/8" NPT, 70 g
• TEC-E1D: Ø12.7 x 44 mm, 3/8" NPT, 70 g
• TEC-E1E: Ø12.7 x 38 mm, 3/8" NPT, 70 g
• TEC-E1F: Ø12.7 x 31.8 mm, 3/8" NPT, 70 g
• TEC-E1G: Ø12.7 x 25 mm, 3/8" NPT, 70 g

Tecnoseal TEC-E1F is also listed as equivalent to TEC-SD8, while TEC-E1G corresponds to TEC-SD7.

Ø16 mm (5/8") – 1/2" NPT

The 16 mm diameter series includes four complete zinc anode assemblies with 1/2" NPT brass mounting plugs. All versions feature a 22 mm (7/8") head dimension.

Available zinc rod lengths range from 25 to 76 mm. The TEC-E2, TEC-E2A and TEC-E2B each weigh 0.12 kg (0.26 lbs), while the TEC-E2C weighs 0.11 kg (0.24 lbs).

• TEC-E2: Ø16 x 51 mm, 1/2" NPT, 120 g
• TEC-E2A: Ø16 x 25 mm, 1/2" NPT, 120 g
• TEC-E2B: Ø16 x 76 mm, 1/2" NPT, 120 g
• TEC-E2C: Ø16 x 38 mm, 1/2" NPT, 110 g

Tecnoseal TEC-E2A is also listed as equivalent to TEC-SD10.

Ø19 mm (3/4") – 3/4" NPT

The largest body diameter in this range is 19 mm (3/4"). These anodes feature 3/4" NPT brass mounting plugs with a 27 mm (1-1/16") head dimension.

The TEC-E3 measures 51 mm in zinc rod length and weighs 0.50 kg (1.10 lbs). The TEC-E4 features an 86 mm rod and weighs 0.27 kg (0.60 lbs), while the TEC-E5 measures 92 mm in length and weighs 0.59 kg (1.30 lbs).

• TEC-E3: Ø19 x 51 mm, 3/4" NPT, 500 g
• TEC-E4: Ø19 x 86 mm, 3/4" NPT, 270 g
• TEC-E5: Ø19 x 92 mm, 3/4" NPT, 590 g

Equivalent Tecnoseal References

Several models are listed with equivalent references that can help identify a replacement assembly:

Mounting Configuration

All Tecnoseal USA Universal pencil anodes in this range use the 2T configuration, combining a cylindrical zinc sacrificial element with a brass mounting plug.

The brass plug features a tapered external NPT thread for installation into a compatible threaded port. The zinc rod extends from the opposite side of the plug into the cooling water passage.

Available plug connections include:

• 1/8" NPT: TEC-E00
• 1/4" NPT: TEC-E0, TEC-E0A and TEC-E0B
• 3/8" NPT: TEC-E1, TEC-E1D, TEC-E1E, TEC-E1F, TEC-E1G and TEC-E1H
• 1/2" NPT: TEC-E2, TEC-E2A, TEC-E2B and TEC-E2C
• 3/4" NPT: TEC-E3, TEC-E4 and TEC-E5

Application and Compatibility

These Tecnoseal USA Universal sacrificial pencil anodes are intended for compatible marine engine cooling systems, heat exchangers and other water-cooled equipment using replaceable zinc anodes with threaded brass mounting plugs.

The USA Universal designation identifies the anode series and does not mean that every model fits every cooling system. Compatibility depends on the original component dimensions, mounting thread and available installation clearance.

Model Selection

Choose the appropriate Tecnoseal zinc pencil anode by comparing the original zinc rod diameter, body length, external plug thread and brass plug head dimensions.

Models with the same zinc rod diameter may feature different mounting threads. For example, the 9.5 mm diameter range includes both 1/4" NPT and 3/8" NPT versions.

For the 12.7 mm diameter series, all models share a 3/8" NPT connection, but differ in rod length and, in the case of TEC-E1F, brass plug head dimension.

NPT tapered pipe threads must not be confused with UNC straight threads or BSP threaded connections. Confirm the existing threaded port before ordering.

Supply: One zinc sacrificial pencil anode complete with brass mounting plug.
