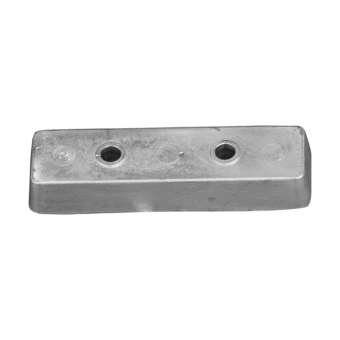

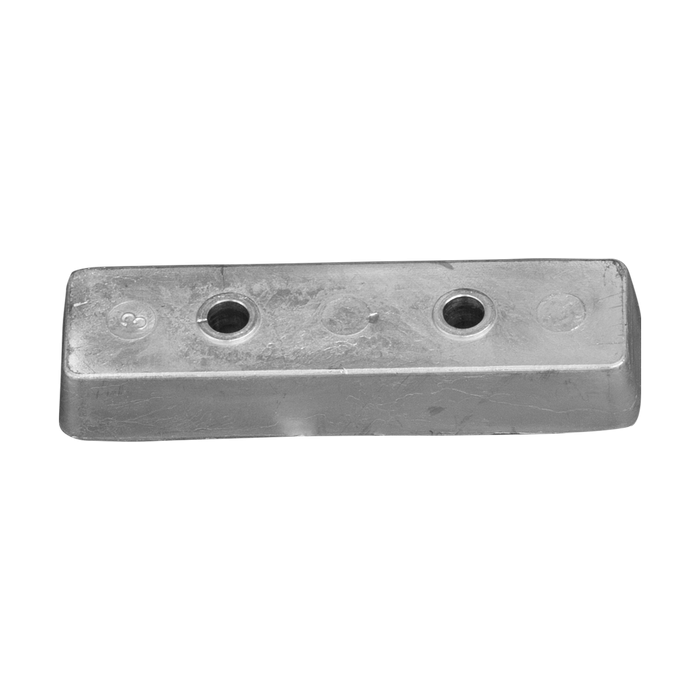

Tecnoseal TEC-BT Bennett Trim Tab Anode 95x28x14 mm

Name: Tecnoseal TEC-BT Bennett Trim Tab Anode 95x28x14 mm
SKU: Tecnoseal TEC-BT

ID 1406186

$ 34.86

1-2 weeks delivery time

Item:

Zinc
Aluminium
Magnesium

Tecnoseal TEC-BT sacrificial plate anodes are designed for Bennett marine trim tabs and are available in zinc, aluminium and magnesium. Each rectangular anode measures 95 mm (3.74 in) in length, 28 mm (1.10 in) in width and 14 mm (0.55 in) in height, with two 6.5 mm (0.26 in) mounting holes spaced 38 mm (1.50 in) centre to centre. The zinc TEC-BT weighs 0.21 kg (210 g), the aluminium TEC-BTAL weighs 0.09 kg (90 g), and the magnesium TEC-BTMG weighs 0.06 kg (60 g). Each anode is sold individually without mounting hardware and provides sacrificial corrosion protection for compatible Bennett trim tab installations.

Description
Ask a Question

Tecnoseal TEC-BT Bennett Trim Tab Anode 95x28x14 mm – Zinc, Aluminium & Magnesium

The Tecnoseal TEC-BT series consists of rectangular sacrificial plate anodes designed for Bennett marine trim tabs. Available in zinc, aluminium and magnesium, these anodes provide replaceable sacrificial corrosion protection for compatible metallic trim tab components.

All three versions share identical dimensions of 95 mm (3.74 in) in length, 28 mm (1.10 in) in width and 14 mm (0.55 in) in height. Each anode features two mounting holes with a diameter of 6.5 mm (0.26 in), spaced 38 mm (1.50 in) centre to centre.

The models differ in material and weight: TEC-BT is zinc and weighs 0.21 kg, TEC-BTAL is aluminium and weighs 0.09 kg, and TEC-BTMG is magnesium and weighs 0.06 kg.

Important: Each anode is sold individually without mounting hardware. The listed weights refer to one anode, not a pair.

Key Features

Manufacturer: Tecnoseal
Product Series: TEC-BT
Product Type: Bennett trim tab sacrificial anode
Available Materials: Zinc, Aluminium, Magnesium
Application: Bennett marine trim tabs / flaps
Shape: Rectangular plate
Length (l): 95 mm
Width (a): 28 mm
Height (h): 14 mm
Number of Mounting Holes: 2
Mounting Hole Spacing (i): 38 mm
Mounting Hole Diameter (Ø): 6.5 mm
Supply: 1 anode
Mounting Hardware: Not included

Technical Specifications

Parameter	TEC-BT	TEC-BTAL	TEC-BTMG
Material	Zinc	Aluminium	Magnesium
Length (l)	95 mm	95 mm	95 mm
Width (a)	28 mm	28 mm	28 mm
Height (h)	14 mm	14 mm	14 mm
Hole Spacing (i)	38 mm	38 mm	38 mm
Hole Diameter (Ø)	6.5 mm	6.5 mm	6.5 mm
Weight	0.21 kg	0.09 kg	0.06 kg
Weight (lbs)	0.46 lbs	0.20 lbs	0.13 lbs
EAN	8033837069546	8052744981901	8058774835696

Available Models

Tecnoseal TEC-BT – Zinc: 95 × 28 × 14 mm, weight 0.21 kg (210 g), EAN 8033837069546.
Tecnoseal TEC-BTAL – Aluminium: 95 × 28 × 14 mm, weight 0.09 kg (90 g), EAN 8052744981901.
Tecnoseal TEC-BTMG – Magnesium: 95 × 28 × 14 mm, weight 0.06 kg (60 g), EAN 8058774835696.

Bennett Trim Tab Application

The Tecnoseal TEC-BT series is designed for compatible Bennett trim tab installations requiring a rectangular sacrificial anode with the specified dimensions and mounting arrangement.

When installed with proper electrical contact, the sacrificial anode helps reduce galvanic corrosion of associated metallic trim tab components.

Mounting Configuration

The rectangular plate incorporates two mounting holes with a diameter of 6.5 mm and a centre-to-centre spacing of 38 mm. All three material versions use identical mounting dimensions.

Before ordering, compare the existing anode's overall dimensions and mounting arrangement with the Tecnoseal TEC-BT specifications.

Mounting screws, bolts and other hardware are not included.

Choosing the Correct Anode Material

The Tecnoseal TEC-BT series offers three sacrificial anode materials:

Zinc: Zinc sacrificial anode version.
Aluminium: Aluminium sacrificial anode version.
Magnesium: Magnesium sacrificial anode version.

Material selection should follow the vessel's operating water conditions, existing cathodic protection arrangement and Bennett equipment recommendations.

Inspection and Replacement

Sacrificial anodes gradually lose material while providing galvanic corrosion protection. Periodically inspect the anode and replace it when sufficiently consumed.

For replacement selection, confirm the 95 × 28 × 14 mm plate dimensions, 38 mm mounting hole spacing and 6.5 mm mounting hole diameter.

Supply: One Tecnoseal TEC-BT series Bennett trim tab anode in the selected material, without mounting hardware.
