The Tecnoseal 00229 is a rectangular zinc bolt-on sacrificial anode for marine hull applications, measuring 100 mm (3.94 in) in length, 70 mm (2.76 in) in width and 12 mm (0.47 in) in height. It features two 6.5 mm (0.26 in) mounting holes spaced 70 mm (2.76 in) centre to centre. Weighing 0.56 kg (1.23 lbs), this zinc plate anode provides a replaceable sacrificial element to help protect compatible metallic hull components against galvanic corrosion. Verify the mounting dimensions against the existing installation before replacement.
- Description
- Ask a Question
-

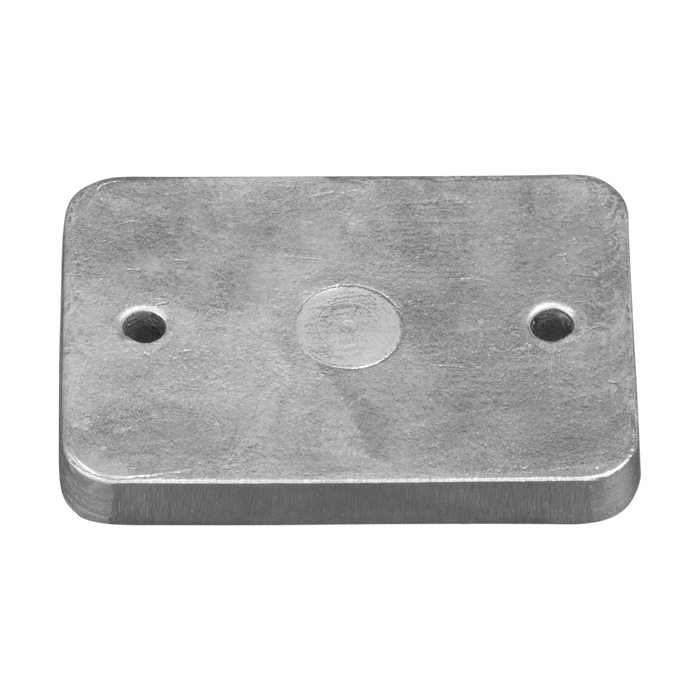

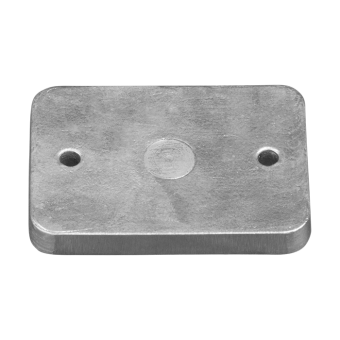

Tecnoseal 00229 Rectangular Zinc Hull Anode 100x70x12 mm – Bolt-On
The Tecnoseal 00229 is a rectangular zinc sacrificial plate anode intended for marine hull applications. Its bolt-on mounting configuration provides a replaceable zinc element designed to help protect compatible metallic components against galvanic corrosion.
The anode measures 100 mm (3.94 in) in length, 70 mm (2.76 in) in width and 12 mm (0.47 in) in height. The rectangular body features two mounting holes positioned along its longitudinal axis.
The mounting holes have a diameter of 6.5 mm (0.26 in) and are spaced 70 mm (2.76 in) centre to centre. The Tecnoseal 00229 has a catalog weight of 0.56 kg (1.23 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00229
- Product Type: Rectangular bolt-on sacrificial plate anode
- Material: Zinc
- Application: Marine hull corrosion protection
- Shape: Rectangular plate
- Length (l): 100 mm
- Width (a): 70 mm
- Height (h): 12 mm
- Mounting Holes: 2
- Hole Spacing (i): 70 mm
- Hole Diameter (Ø): 6.5 mm
- Weight: 0.56 kg / 560 g
- EAN: 8033837060505
Technical Specifications
Parameter Metric Imperial Length (l) 100 mm 3.94 in Width (a) 70 mm 2.76 in Height (h) 12 mm 0.47 in Mounting Hole Spacing (i) 70 mm 2.76 in Mounting Hole Diameter (Ø) 6.5 mm 0.26 in Weight 0.56 kg 1.23 lbs Material Zinc – EAN 8033837060505 –
Rectangular Plate Design and Mounting
The Tecnoseal 00229 features a rectangular plate profile with two mounting holes. Their centre-to-centre spacing is 70 mm, and each hole has a specified diameter of 6.5 mm.
The compact 100 × 70 × 12 mm body is intended for installations requiring this specific plate geometry and fastening arrangement.
Marine Hull Corrosion Protection
The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic hull components when installed with the required electrical contact.
Suitability depends on the vessel's operating water conditions, the existing cathodic protection arrangement and the equipment manufacturer's recommendations.
Inspection and Replacement
Sacrificial zinc anodes gradually lose material during service. Periodic inspection is recommended to assess consumption and determine when replacement is required.
Before ordering, compare the 100 × 70 × 12 mm dimensions, 70 mm mounting hole spacing and 6.5 mm hole diameter with the original anode.
Supply: One Tecnoseal 00229 zinc sacrificial rectangular plate anode.
-
