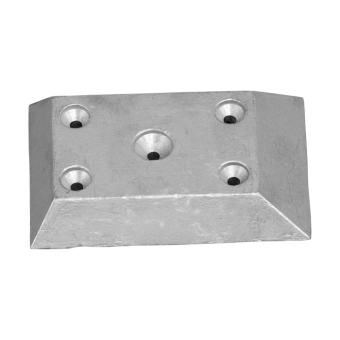

Tecnoseal Posillipo Rectangular Zinc Plate Anode 124x81x20 mm 5 Holes

Tecnoseal 00215 Posillipo Rectangular Zinc Plate Anode 124x81x20 mm – 5 Holes

The Tecnoseal 00215 is a rectangular zinc sacrificial plate anode listed for Posillipo marine applications. It provides a replaceable zinc component intended to help protect compatible metallic marine equipment against galvanic corrosion.

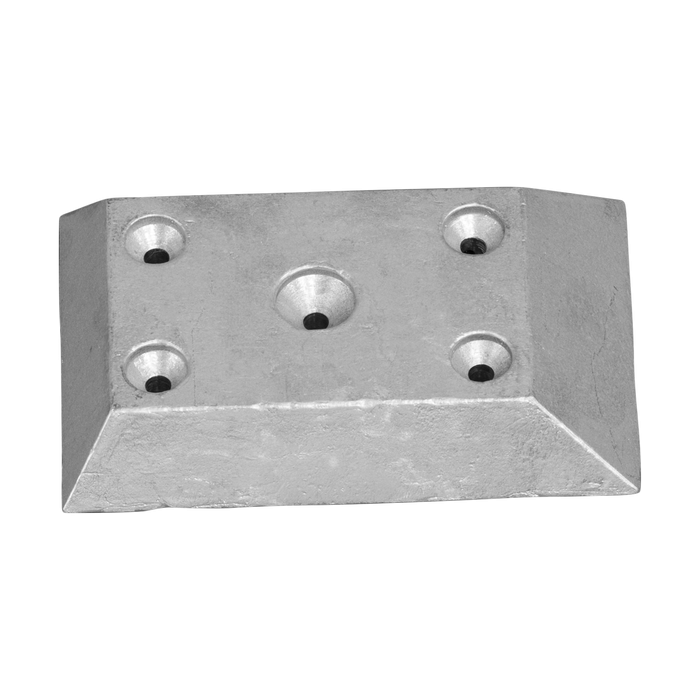

The anode measures 124 mm (4.88 in) in length, 81 mm (3.19 in) in width and 20 mm (0.79 in) in height. Its rectangular body features bevelled edges and a five-hole mounting arrangement.

The manufacturer specifies additional mounting dimensions of b = 35 mm (1.38 in) and i = 68 mm (2.68 in), together with a hole diameter of 5.5 mm (0.22 in) and a recess diameter of 14 mm (0.55 in).

The Tecnoseal 00215 weighs 1.06 kg (2.34 lbs).

Key Features

• Manufacturer: Tecnoseal
• Product Code: 00215
• Product Type: Rectangular sacrificial plate anode
• Material: Zinc
• Application: Posillipo marine equipment
• Shape: Rectangular plate with bevelled edges
• Length (l): 124 mm
• Width (a): 81 mm
• Height (h): 20 mm
• Mounting Configuration: 5 holes
• Mounting Dimension (b): 35 mm
• Mounting Dimension (i): 68 mm
• Hole Diameter (Ø): 5.5 mm
• Recess Diameter (Ø1): 14 mm
• Weight: 1.06 kg / 1060 g
• EAN: 8033837060383

Technical Specifications

Posillipo Marine Application

The Tecnoseal 00215 is listed for Posillipo marine applications requiring a rectangular zinc sacrificial anode with the specified body dimensions and mounting arrangement.

The zinc material acts as a sacrificial element to help reduce galvanic corrosion of associated metallic components when installed with the required electrical contact.

Five-Hole Mounting Configuration

The anode features a five-hole arrangement, with four holes positioned around a central hole. The catalog drawing specifies mounting dimensions of 35 mm (b) and 68 mm (i).

The manufacturer also specifies a 5.5 mm mounting hole diameter and a 14 mm recess diameter. The complete mounting arrangement should be compared with the existing anode before replacement.

Marine Corrosion Protection

The zinc sacrificial material provides galvanic corrosion protection for compatible marine metallic components. Material suitability depends on the operating water conditions and the vessel's existing cathodic protection system.

Inspection and Replacement

Sacrificial zinc anodes gradually lose material during service. Inspect the plate periodically and replace it when sufficiently consumed.

Before ordering, verify the 124 × 81 × 20 mm dimensions and five-hole mounting configuration against the existing Posillipo anode.

Supply: One Tecnoseal 00215 zinc sacrificial rectangular plate anode.
