Tecnoseal Bennett Trim Tab Anode Kit – 2 Anodes with Screws

Name: Tecnoseal Bennett Trim Tab Anode Kit – 2 Anodes with Screws
SKU: Tecnoseal kit-tec-bt

ID 1406190

$ 66.68

1-2 weeks delivery time

Item:

Zinc
Aluminium
Magnesium

Tecnoseal KIT-TEC-BT Bennett trim tab sacrificial anode kits are supplied as a pair of two anodes with mounting screws, available in zinc, aluminium and magnesium. Each anode measures 95 × 28 × 14 mm and features two 6.5 mm mounting holes spaced 38 mm centre to centre. The zinc KIT-TEC-BT weighs 0.50 kg (1.10 lbs), the aluminium KIT-TEC-BTAL weighs 0.23 kg (0.51 lbs), and the magnesium KIT-TEC-BTMG weighs 0.17 kg (0.37 lbs) per complete kit. Each package includes two matching Bennett trim tab anodes and screws for installation.

Description
Ask a Question

Tecnoseal KIT-TEC-BT Bennett Trim Tab Anode Kit – 2 Anodes with Screws, Zinc, Aluminium & Magnesium

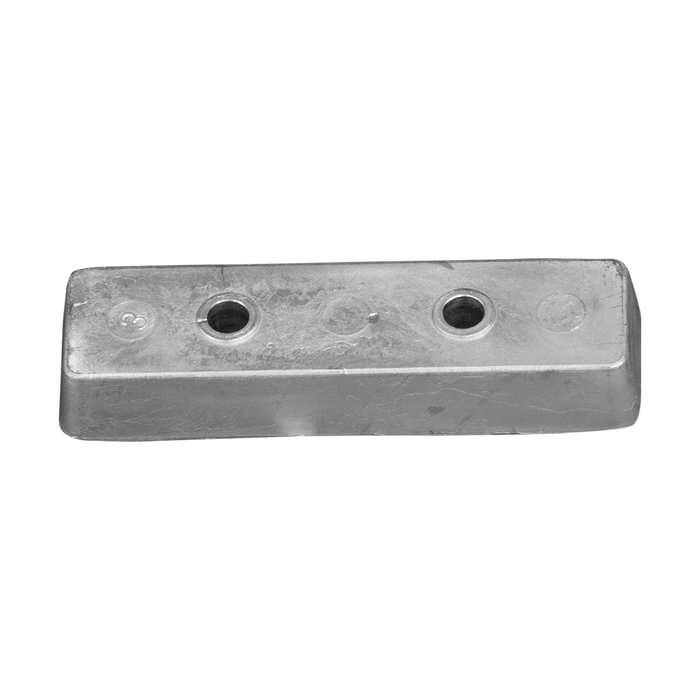

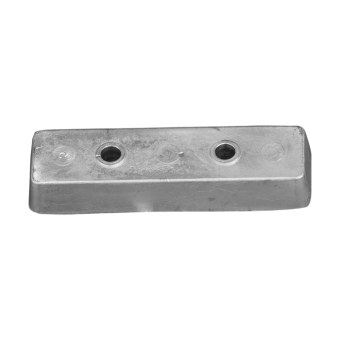

The Tecnoseal KIT-TEC-BT series consists of complete sacrificial anode kits designed for Bennett marine trim tabs. Available in zinc, aluminium and magnesium, each kit contains two matching rectangular anodes and mounting screws.

Each anode measures 95 mm (3.74 in) in length, 28 mm (1.10 in) in width and 14 mm (0.55 in) in height. The mounting arrangement features two 6.5 mm (0.26 in) holes spaced 38 mm (1.50 in) centre to centre.

The kits are supplied as pairs, allowing replacement of two corresponding trim tab anodes. All three material versions use the same anode dimensions and mounting geometry.

Key Features

Manufacturer: Tecnoseal
Product Series: KIT-TEC-BT
Product Type: Bennett trim tab sacrificial anode kit
Available Materials: Zinc, Aluminium, Magnesium
Application: Bennett marine trim tabs / flaps
Anodes per Kit: 2
Mounting Screws: Included
Individual Anode Dimensions: 95 × 28 × 14 mm
Mounting Hole Spacing: 38 mm
Mounting Hole Diameter: 6.5 mm

Available Kits and Contents

Kit Code	Material	Kit Contents	Total Weight
KIT-TEC-BT	Zinc	2 × TEC-BT + screws	0.50 kg / 1.10 lbs
KIT-TEC-BTAL	Aluminium	2 × TEC-BTAL + screws	0.23 kg / 0.51 lbs
KIT-TEC-BTMG	Magnesium	2 × TEC-BTMG + screws	0.17 kg / 0.37 lbs

Individual Anode Specifications

Parameter	Specification
Length (l)	95 mm / 3.74 in
Width (a)	28 mm / 1.10 in
Height (h)	14 mm / 0.55 in
Mounting Hole Spacing (i)	38 mm / 1.50 in
Mounting Hole Diameter (Ø)	6.5 mm / 0.26 in
Mounting Holes per Anode	2
Anodes per Kit	2

Kit Versions

Tecnoseal KIT-TEC-BT – Zinc

Material: Zinc
Contents: 2 × TEC-BT zinc anodes and screws
Complete Kit Weight: 0.50 kg (1.10 lbs)
EAN: 8052744981888

Tecnoseal KIT-TEC-BTAL – Aluminium

Material: Aluminium
Contents: 2 × TEC-BTAL aluminium anodes and screws
Complete Kit Weight: 0.23 kg (0.51 lbs)
EAN: 8052744981895

Tecnoseal KIT-TEC-BTMG – Magnesium

Material: Magnesium
Contents: 2 × TEC-BTMG magnesium anodes and screws
Complete Kit Weight: 0.17 kg (0.37 lbs)
EAN: 8058774835702

Bennett Trim Tab Application

These kits are designed for compatible Bennett trim tab systems requiring rectangular sacrificial anodes with the specified 95 × 28 × 14 mm dimensions and 38 mm mounting hole spacing.

The sacrificial anodes help protect associated metallic trim tab components against galvanic corrosion when correctly installed with the required electrical contact.

Choosing the Correct Material

Zinc: Zinc sacrificial anode kit.
Aluminium: Aluminium sacrificial anode kit.
Magnesium: Magnesium sacrificial anode kit.

Select the appropriate material according to the vessel's operating water conditions, existing cathodic protection arrangement and equipment manufacturer's recommendations.

Installation and Replacement

Each kit contains two anodes and mounting screws. Before installation, verify the anode dimensions, hole spacing and compatibility with the existing Bennett trim tab arrangement.

Sacrificial anodes gradually lose material during service and should be inspected periodically. Replace them when sufficiently consumed.

Supply: One complete Tecnoseal Bennett trim tab anode kit containing 2 anodes in the selected material and mounting screws.
