ID
1406198
$ 40.80
1-2 weeks delivery time
-
+
The Tecnoseal 00219 is a rectangular zinc sacrificial plate anode for marine applications, measuring 72 mm (2.83 in) in length, 47 mm (1.85 in) in width and 10 mm (0.39 in) in height. The plate features two mounting holes with a diameter of 6.5 mm (0.26 in), spaced 50 mm (1.97 in) centre to centre. Weighing 0.23 kg (0.51 lbs), this zinc anode provides a replaceable sacrificial element to help protect compatible metallic marine components against galvanic corrosion.
- Description
- Ask a Question
-

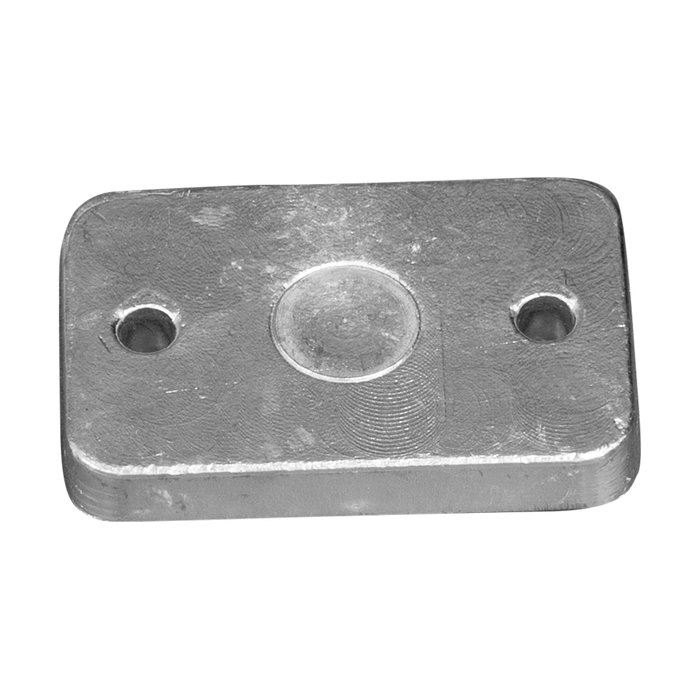

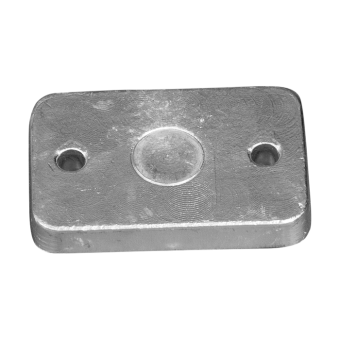

Tecnoseal 00219 Rectangular Zinc Plate Anode 72x47x10 mm
The Tecnoseal 00219 is a rectangular zinc sacrificial plate anode designed for marine applications. It provides a replaceable zinc component intended to help protect compatible metallic parts against galvanic corrosion.
The anode measures 72 mm (2.83 in) in length, 47 mm (1.85 in) in width and 10 mm (0.39 in) in height. Its rectangular body features rounded corners and two mounting holes positioned along the longitudinal axis.
The mounting holes are spaced 50 mm (1.97 in) centre to centre and have a diameter of 6.5 mm (0.26 in). The Tecnoseal 00219 weighs 0.23 kg (0.51 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00219
- Product Type: Rectangular sacrificial plate anode
- Material: Zinc
- Application: Marine plate anode replacement
- Shape: Rectangular plate with rounded corners
- Length (l): 72 mm
- Width (a): 47 mm
- Height (h): 10 mm
- Mounting Holes: 2
- Hole Spacing (i): 50 mm
- Hole Diameter (Ø): 6.5 mm
- Weight: 0.23 kg / 230 g
- EAN: 8033837060420
Technical Specifications
Parameter Metric Imperial Length (l) 72 mm 2.83 in Width (a) 47 mm 1.85 in Height (h) 10 mm 0.39 in Mounting Hole Spacing (i) 50 mm 1.97 in Mounting Hole Diameter (Ø) 6.5 mm 0.26 in Weight 0.23 kg 0.51 lbs Material Zinc – EAN 8033837060420 –
Rectangular Plate Design
The Tecnoseal 00219 features a compact rectangular profile with rounded corners and two mounting holes. The fastening holes are arranged along the central axis, with 50 mm between their centres.
The manufacturer's drawing specifies a mounting hole diameter of 6.5 mm. Before ordering, compare the body dimensions and hole spacing with the existing anode.
Marine Galvanic Corrosion Protection
The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when installed with the required electrical contact.
Selection should take into account the vessel's operating water conditions and the existing corrosion protection arrangement.
Inspection and Replacement
Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.
For replacement selection, verify the 72 × 47 × 10 mm dimensions, 50 mm mounting hole spacing and 6.5 mm hole diameter.
Supply: One Tecnoseal 00219 zinc sacrificial rectangular plate anode.
-
