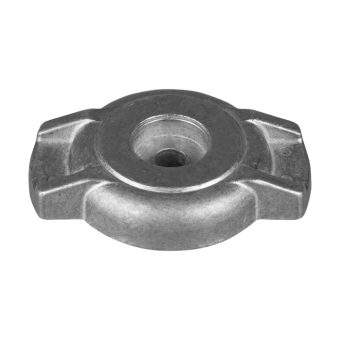

Tecnoseal Hydrotab Trim Tab Zinc Anode 80x58x16 mm Ø8 mm

Name: Tecnoseal Hydrotab Trim Tab Zinc Anode 80x58x16 mm Ø8 mm
SKU: Tecnoseal 02751
Price: 46.978695852477 USD
Availability: InStock

ID 1406195

$ 46.98

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 02751 is a zinc sacrificial anode designed for Hydrotab marine trim tab applications. Its shaped body measures 80 mm (3.15 in) in length, 58 mm (2.28 in) in width and 16 mm (0.63 in) in height, with an additional profile dimension (h1) of 2.5 mm (0.10 in). The anode features a central mounting hole with a diameter of 8 mm (0.31 in). Weighing 0.25 kg (0.55 lbs), it provides a replaceable sacrificial zinc component for galvanic corrosion protection of compatible Hydrotab installations.

Description
Ask a Question

Tecnoseal 02751 Hydrotab Trim Tab Zinc Anode 80x58x16 mm – Ø8 mm

The Tecnoseal 02751 is a zinc sacrificial anode designed for Hydrotab marine trim tabs. It provides a replaceable zinc component to help protect compatible metallic trim tab parts against galvanic corrosion.

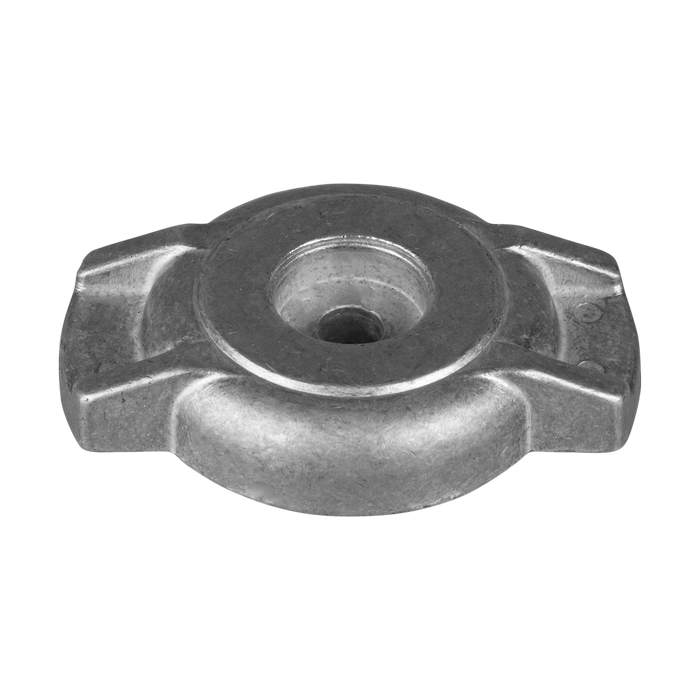

The anode features a shaped body with curved sections and a central recessed mounting arrangement. Its overall dimensions are 80 mm (3.15 in) in length, 58 mm (2.28 in) in width and 16 mm (0.63 in) in height.

The manufacturer also specifies an additional profile dimension (h1) of 2.5 mm (0.10 in) and a central mounting hole diameter of 8 mm (0.31 in). The Tecnoseal 02751 weighs 0.25 kg (0.55 lbs).

Key Features

Manufacturer: Tecnoseal
Product Code: 02751
Product Type: Hydrotab trim tab sacrificial anode
Material: Zinc
Application: Hydrotab marine trim tabs / flaps
Shape: Shaped plate with curved profile
Length (l): 80 mm
Width (a): 58 mm
Height (h): 16 mm
Additional Profile Dimension (h1): 2.5 mm
Central Mounting Hole (Ø): 8 mm
Weight: 0.25 kg / 250 g
EAN: 8058774839977

Technical Specifications

Parameter	Metric	Imperial
Length (l)	80 mm	3.15 in
Width (a)	58 mm	2.28 in
Height (h)	16 mm	0.63 in
Additional Dimension (h1)	2.5 mm	0.10 in
Mounting Hole Diameter (Ø)	8 mm	0.31 in
Weight	0.25 kg	0.55 lbs
Material	Zinc	–
EAN	8058774839977	–

Hydrotab Trim Tab Application

The Tecnoseal 02751 is intended for compatible Hydrotab trim tab installations requiring a shaped zinc sacrificial anode with the specified dimensions and central mounting configuration.

The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when installed with the required electrical contact.

Shaped Profile and Mounting

Unlike conventional rectangular trim tab anodes, the Tecnoseal 02751 features a shaped body with curved edges and a central mounting arrangement.

The manufacturer specifies an overall length of 80 mm, width of 58 mm, height of 16 mm, additional profile dimension of 2.5 mm and a central mounting hole diameter of 8 mm.

Before ordering, compare the shape, dimensions and central mounting arrangement with the original Hydrotab anode.

Marine Corrosion Protection

The zinc material provides sacrificial galvanic corrosion protection for compatible marine trim tab components. Proper electrical contact between the anode and the protected metallic component is required.

Suitability depends on the operating water conditions, existing cathodic protection arrangement and equipment manufacturer's recommendations.

Inspection and Replacement

Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.

Before replacement, verify the 80 × 58 × 16 mm dimensions, 2.5 mm additional profile dimension and Ø8 mm mounting hole against the original installation.

Supply: One Tecnoseal 02751 zinc sacrificial Hydrotab trim tab anode.
