Tecnoseal Posillipo Rectangular Zinc Plate Anode 122x81x20 mm

Tecnoseal 00216 Posillipo Rectangular Zinc Plate Anode 122x81x20 mm

The Tecnoseal 00216 is a rectangular zinc sacrificial plate anode listed for Posillipo marine applications. It provides a replaceable zinc element designed to help protect compatible metallic marine components against galvanic corrosion.

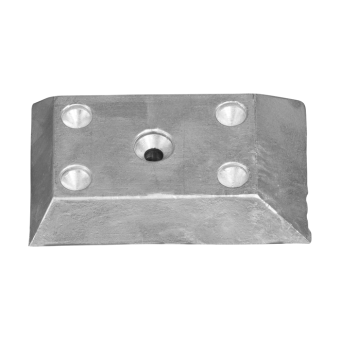

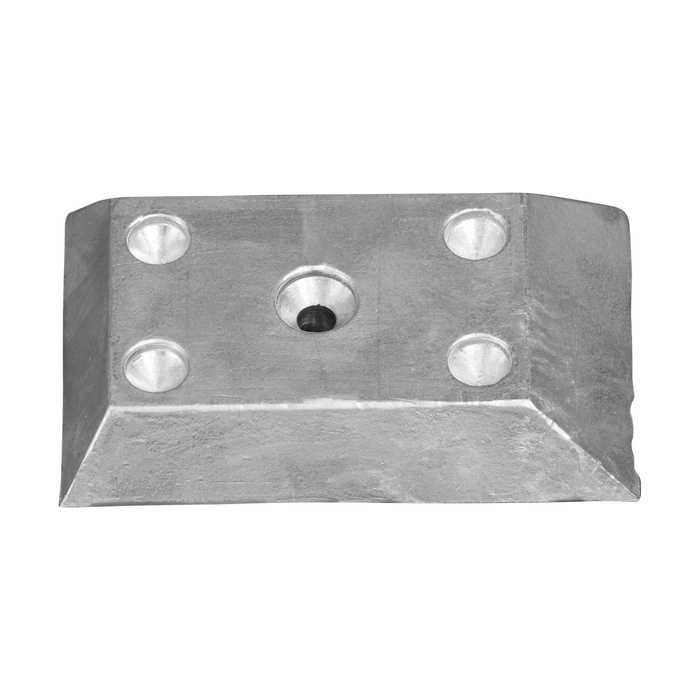

The anode measures 122 mm (4.80 in) in length, 81 mm (3.19 in) in width and 20 mm (0.79 in) in height. Its rectangular body features bevelled edges and a central mounting arrangement.

The manufacturer specifies a central hole diameter of 8.5 mm (0.33 in) and a recess diameter of 14 mm (0.55 in). The reference drawing also shows four additional holes, although their individual dimensions are not specified in the supplied catalog table.

The Tecnoseal 00216 has a catalog weight of 1.07 kg (2.36 lbs).

Key Features

• Manufacturer: Tecnoseal
• Product Code: 00216
• Product Type: Rectangular sacrificial plate anode
• Material: Zinc
• Application: Posillipo marine equipment
• Shape: Rectangular plate with bevelled edges
• Length (l): 122 mm
• Width (a): 81 mm
• Height (h): 20 mm
• Central Hole Diameter (Ø): 8.5 mm
• Recess Diameter (Ø1): 14 mm
• Weight: 1.07 kg / 1070 g
• EAN: 8033837060390

Technical Specifications

Posillipo Marine Application

The Tecnoseal 00216 is listed for Posillipo marine installations requiring a rectangular zinc sacrificial anode with the specified overall dimensions and central mounting configuration.

The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when installed with the required electrical contact.

Plate Design and Mounting

The anode features a rectangular body with bevelled edges. Its central mounting position has an 8.5 mm hole diameter and a 14 mm recess diameter.

The manufacturer's reference drawing additionally shows four holes arranged around the central mounting position. Their dimensions and intended functions are not specified in the supplied catalog table.

Before ordering, compare the plate dimensions and complete hole arrangement with the existing Posillipo anode.

Marine Corrosion Protection

The sacrificial zinc material helps protect compatible metallic components against galvanic corrosion. Correct installation requires appropriate electrical contact with the protected metal.

Suitability depends on the operating water conditions and the vessel's existing corrosion protection arrangement.

Inspection and Replacement

Sacrificial zinc anodes gradually lose material during service. Periodically inspect the anode and replace it when sufficiently consumed.

Before replacement, verify the 122 × 81 × 20 mm dimensions, central Ø8.5 mm hole and Ø14 mm recess against the original installation.

Supply: One Tecnoseal 00216 zinc sacrificial rectangular plate anode.
