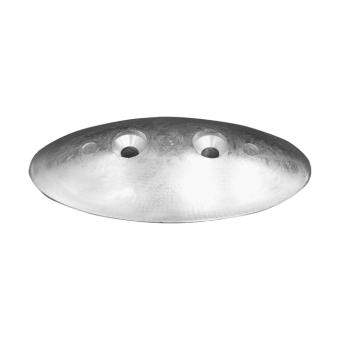

Tecnoseal TEC-24 Oval Plate Anode 112x53 mm

Name: Tecnoseal TEC-24 Oval Plate Anode 112x53 mm
SKU: Tecnoseal TEC-24

ID 1406160

$ 31.90

1-2 weeks delivery time

Item:

Zinc
Magnesium

Tecnoseal TEC-24 oval sacrificial plate anodes are available in zinc, aluminium and magnesium for marine corrosion protection applications. Each version features an oval body measuring 112 mm (4.41 in) in length, 53 mm (2.09 in) in width and 19 mm (0.75 in) in height, with two 6.5 mm (0.26 in) mounting holes spaced 32 mm (1.26 in) apart. The zinc TEC-24 weighs 0.33 kg (330 g), the aluminium TEC-24AL weighs 0.13 kg (130 g), and the magnesium TEC-24MG weighs 0.08 kg (80 g). Select the appropriate material according to the vessel's corrosion protection requirements.

Description
Ask a Question

Tecnoseal TEC-24 Oval Plate Anode 112x53 mm – Zinc, Aluminium & Magnesium

The Tecnoseal TEC-24 series consists of oval sacrificial plate anodes available in zinc, aluminium and magnesium. These anodes are designed for marine corrosion protection applications, providing a replaceable sacrificial element to help reduce galvanic corrosion of compatible metallic components.

All three versions share the same oval profile, measuring 112 mm (4.41 in) in length, 53 mm (2.09 in) in width and 19 mm (0.75 in) in height. Each anode features two mounting holes with a diameter of 6.5 mm (0.26 in) and a centre-to-centre spacing of 32 mm (1.26 in).

The available models are TEC-24 in zinc, TEC-24AL in aluminium and TEC-24MG in magnesium. While their dimensions and mounting configuration are identical, the anode weights differ according to the material.

Key Features

Manufacturer: Tecnoseal
Product Series: TEC-24
Product Type: Oval sacrificial plate anode
Available Materials: Zinc, Aluminium, Magnesium
Application: Marine galvanic corrosion protection
Shape: Oval plate
Length (l): 112 mm
Width (a): 53 mm
Height (h): 19 mm
Mounting Hole Spacing (i): 32 mm
Mounting Hole Diameter (Ø): 6.5 mm
Number of Mounting Holes: 2
Weight Range: 0.08–0.33 kg

Technical Specifications

Parameter	TEC-24	TEC-24AL	TEC-24MG
Material	Zinc	Aluminium	Magnesium
Length (l)	112 mm	112 mm	112 mm
Width (a)	53 mm	53 mm	53 mm
Height (h)	19 mm	19 mm	19 mm
Hole Spacing (i)	32 mm	32 mm	32 mm
Hole Diameter (Ø)	6.5 mm	6.5 mm	6.5 mm
Weight	0.33 kg	0.13 kg	0.08 kg

Available Models

Tecnoseal TEC-24 – Zinc: 112 × 53 × 19 mm, 0.33 kg (0.73 lbs). EAN: 8033837068693.
Tecnoseal TEC-24AL – Aluminium: 112 × 53 × 19 mm, 0.13 kg (0.29 lbs). EAN: 8059617810689.
Tecnoseal TEC-24MG – Magnesium: 112 × 53 × 19 mm, 0.08 kg (0.18 lbs). EAN: 8052744982083.

Oval Plate Design and Mounting

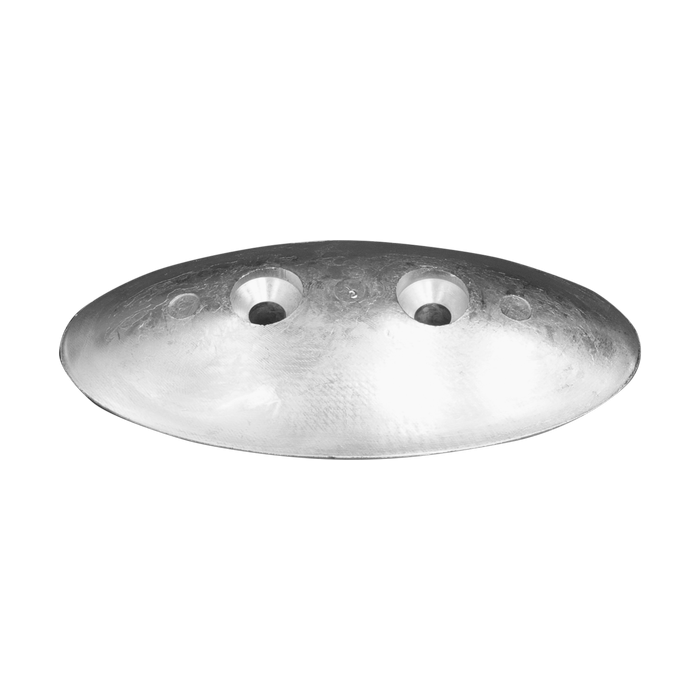

The TEC-24 anode features an oval body with two recessed mounting holes arranged along its longitudinal axis. The mounting hole spacing is 32 mm, and the hole diameter is 6.5 mm.

All three material versions use the same mounting dimensions, allowing selection of the required sacrificial anode material while retaining the specified plate geometry.

Choosing the Correct Anode Material

The TEC-24 series is offered in three sacrificial anode materials with different electrochemical properties:

Zinc: Zinc sacrificial anode version.
Aluminium: Aluminium sacrificial anode version.
Magnesium: Magnesium sacrificial anode version.

Select the appropriate material according to the vessel's operating environment, existing cathodic protection system and equipment manufacturer's recommendations.

Inspection and Replacement

Sacrificial anodes gradually lose material while providing galvanic corrosion protection. Periodic inspection is recommended to assess their condition and determine when replacement is required.

Before ordering, verify the plate dimensions, 32 mm hole spacing and 6.5 mm mounting hole diameter against the existing installation.

Supply: One Tecnoseal TEC-24 series oval sacrificial plate anode in the selected material.
