The Tecnoseal KIT102VET is a zinc sacrificial anode kit designed for H+B Technics marine tender lift platforms. The kit includes one Tecnoseal 00102VET anode and one Tecnoseal 00102VET-1 anode, supplied with a mounting bolt. Both anodes feature a 100 mm outside diameter and 20 mm height, with different mounting configurations: M8 for 00102VET and an 8 mm central hole with a 14 mm recess for 00102VET-1. The complete kit weighs 2.10 kg (4.63 lbs) and provides replacement sacrificial corrosion protection components for compatible platform lifting equipment.
- Description
- Ask a Question
-

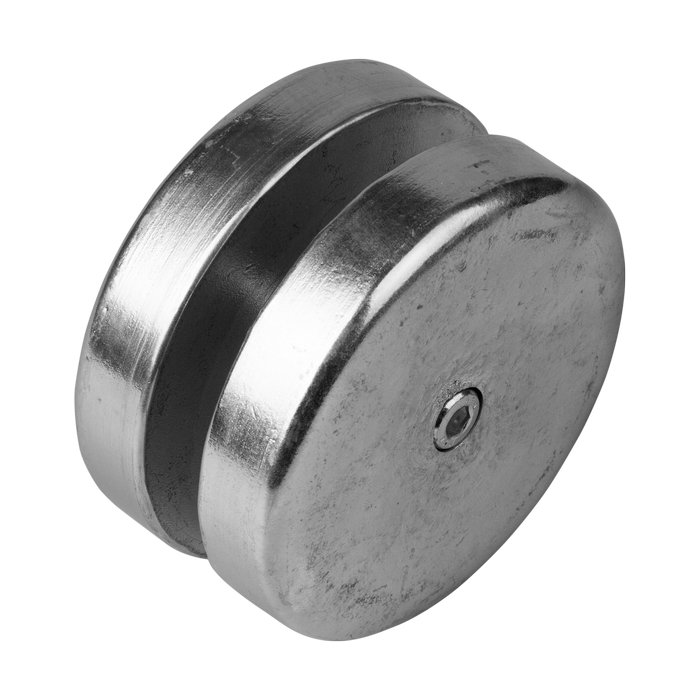

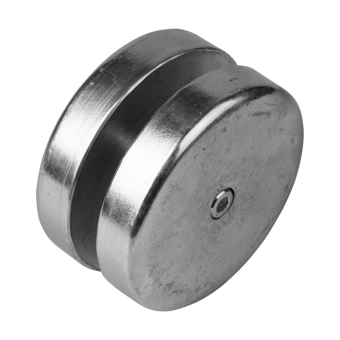

Tecnoseal KIT102VET H+B Technics Tender Lift Zinc Anode Kit with Bolt
The Tecnoseal KIT102VET is a zinc sacrificial anode kit designed for H+B Technics marine tender lift platforms. It combines two Tecnoseal anodes with different mounting configurations and is supplied with a mounting bolt.
The kit contains one Tecnoseal 00102VET anode and one Tecnoseal 00102VET-1 anode. Both feature circular zinc bodies measuring 100 mm (3.94 in) in outside diameter and 20 mm (0.79 in) in height.
The complete KIT102VET assembly has a manufacturer-listed weight of 2.10 kg (4.63 lbs). Its zinc components provide sacrificial corrosion protection for compatible metallic parts of the H+B Technics platform lifting system.
Key Features
- Manufacturer: Tecnoseal
- Product Code: KIT102VET
- Product Type: Tender lift platform sacrificial anode kit
- Anode Material: Zinc
- Application: H+B Technics tender lift platforms
- Number of Anodes: 2
- Mounting Bolt: Included
- Anode Diameter: 100 mm
- Anode Height: 20 mm
- Total Kit Weight: 2.10 kg / 2100 g
- EAN: 8052744981192
Kit Contents
Component Quantity Description Tecnoseal 00102VET 1 pc Zinc anode Ø100 × 20 mm, M8 mounting Tecnoseal 00102VET-1 1 pc Zinc anode Ø100 × 20 mm, Ø8 mm central hole and Ø14 mm recess Mounting Bolt Included Mounting hardware supplied with kit
Technical Specifications
Parameter Specification Product Code KIT102VET Application H+B Technics Tender Lift Platform Material Zinc Kit Composition 1 × 00102VET + 1 × 00102VET-1 Outside Diameter 100 mm / 3.94 in (each anode) Height 20 mm / 0.79 in (each anode) 00102VET Mounting M8 00102VET-1 Mounting Hole 8 mm / 0.31 in 00102VET-1 Recess Diameter 14 mm / 0.55 in Mounting Bolt Included Total Weight 2.10 kg / 4.63 lbs EAN 8052744981192
H+B Technics Tender Lift Application
The Tecnoseal KIT102VET is intended for compatible H+B Technics marine tender lift platforms requiring the specified combination of two zinc sacrificial anodes.
The zinc elements help reduce galvanic corrosion of associated metallic platform components when installed with the required electrical contact.
Anode Mounting Configurations
The kit combines two anodes with identical outside dimensions but different central mounting arrangements.
- 00102VET: Ø100 mm, height 20 mm, M8 central mounting.
- 00102VET-1: Ø100 mm, height 20 mm, Ø8 mm central mounting hole and Ø14 mm recess.
A mounting bolt is included with the kit, as specified by the manufacturer. Its individual dimensions are not provided in the available catalogue information.
Inspection and Replacement
The zinc anodes gradually lose material during service while providing sacrificial corrosion protection. Their condition should be inspected periodically as part of platform maintenance.
Before installation, verify that both anode references and their mounting configurations correspond to the existing H+B Technics equipment.
Supply: One Tecnoseal KIT102VET kit containing two zinc sacrificial anodes (00102VET and 00102VET-1) with mounting bolt.
-
