ID
1406158
$ 81.68
1-2 weeks delivery time
-
+
The Tecnoseal 00102VET-1 is a zinc sacrificial anode designed for H+B Technics marine tender lift platforms. Its circular body measures 100 mm (3.94 in) in outside diameter and 20 mm (0.79 in) in height, with an 8 mm (0.31 in) central mounting hole and a 14 mm (0.55 in) recess. Weighing 1.09 kg (2.41 lbs), this replacement anode helps protect compatible metallic components of the platform lifting system against galvanic corrosion. The mounting dimensions should be checked against the original anode before replacement.
- Description
- Ask a Question
-

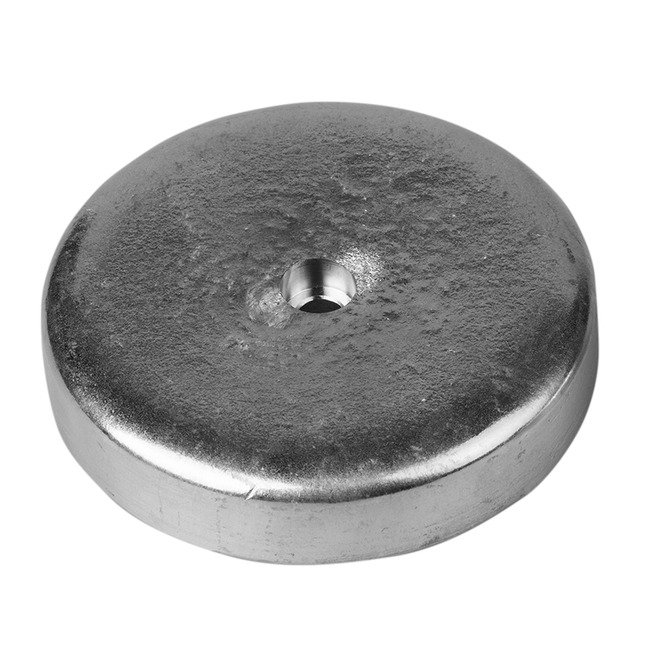

Tecnoseal 00102VET-1 H+B Technics Tender Lift Zinc Anode Ø100 mm
The Tecnoseal 00102VET-1 is a zinc sacrificial anode designed for H+B Technics marine tender lift platforms. It provides a replaceable zinc element to help protect compatible metallic components of the hydraulic platform assembly against galvanic corrosion.
The anode features a circular body measuring 100 mm (3.94 in) in outside diameter and 20 mm (0.79 in) in height. Its central mounting arrangement includes an 8 mm (0.31 in) hole and a 14 mm (0.55 in) recess.
Weighing 1.09 kg (2.41 lbs), the Tecnoseal 00102VET-1 is intended for replacement on compatible H+B Technics tender lift equipment.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00102VET-1
- Product Type: Sacrificial tender lift platform anode
- Material: Zinc
- Application: H+B Technics tender lift platforms
- Shape: Circular plate
- Outside Diameter (Ø): 100 mm
- Height (h): 20 mm
- Central Hole Diameter (Ø1): 8 mm
- Recess Diameter (Ø2): 14 mm
- Weight: 1.09 kg / 1090 g
- EAN: 8052744980553
Technical Specifications
Parameter Metric Imperial Outside Diameter (Ø) 100 mm 3.94 in Height (h) 20 mm 0.79 in Central Hole Diameter (Ø1) 8 mm 0.31 in Recess Diameter (Ø2) 14 mm 0.55 in Weight 1.09 kg 2.41 lbs Material Zinc –
H+B Technics Tender Lift Application
The Tecnoseal 00102VET-1 is intended for H+B Technics marine tender lift platforms requiring a circular zinc anode with a 100 mm outside diameter and the specified central mounting arrangement.
The sacrificial zinc material helps reduce galvanic corrosion of associated metallic platform components when correctly installed with the required electrical contact.
Mounting Configuration
The anode incorporates an 8 mm central mounting hole with a 14 mm diameter recess. These dimensions are important when selecting a replacement for the existing tender lift platform installation.
Before ordering, verify the outside diameter, thickness, central hole and recess dimensions against the original component.
Inspection and Replacement
The zinc material gradually loses mass while providing sacrificial corrosion protection. The anode should be inspected periodically and replaced when sufficiently consumed.
Installation and replacement should follow the applicable H+B Technics platform maintenance instructions.
Supply: One Tecnoseal 00102VET-1 zinc sacrificial anode for compatible H+B Technics tender lift platforms.
-
