The Tecnoseal PMSEAGROUND3 is a round marine grounding plate manufactured from porous bronze alloy for onboard electrical grounding applications. It features a 128 mm (5.04 in) outside diameter, a 13 mm (0.51 in) height and a single central mounting hole. The manufacturer specifies a grounding surface rating of 1.50 m² and a total weight of 1.00 kg (2.20 lbs). Its circular design provides a grounding component for compatible marine electrical installations, with the supplied mounting hardware shown in the product illustration.
- Description
- Ask a Question
-
Tecnoseal PMSEAGROUND3 Round Marine Grounding Plate – Porous Bronze Ø128 mm
The Tecnoseal PMSEAGROUND3 is a round marine grounding plate designed for onboard electrical devices. Manufactured from porous bronze alloy, it provides a conductive grounding surface for compatible vessel electrical grounding installations.
The plate features a circular profile with a single central mounting hole. Its outside diameter is 128 mm (5.04 in), with a height of 13 mm (0.51 in). The manufacturer specifies a grounding surface rating of 1.50 m².
Weighing 1.00 kg (2.20 lbs), the PMSEAGROUND3 is designed for marine electrical grounding applications requiring a round porous bronze plate.
Key Features
- Manufacturer: Tecnoseal
- Product Code: PMSEAGROUND3
- Product Type: Marine electrical grounding plate
- Material: Porous bronze alloy
- Application: Grounding of onboard electrical devices
- Shape: Circular
- Outside Diameter (Ø): 128 mm
- Height (h): 13 mm
- Mounting Holes: 1 central hole
- Grounding Surface Rating: 1.50 m² (manufacturer-listed)
- Weight: 1.00 kg
- EAN: 8033837068136
Technical Specifications
Parameter Specification Product Code PMSEAGROUND3 Material Porous Bronze Alloy Outside Diameter (Ø) 128 mm / 5.04 in Height (h) 13 mm / 0.51 in Mounting Holes 1 central hole Grounding Surface Rating 1.50 m² Weight 1.00 kg / 2.20 lbs EAN 8033837068136
Porous Bronze Construction
The PMSEAGROUND3 is manufactured from porous bronze alloy, as specified in the Tecnoseal catalogue. This material forms the conductive structure of the grounding plate for its intended marine application.
The manufacturer-listed surface rating of 1.50 m² refers to the specified grounding surface and should not be confused with the external geometric area of the 128 mm circular plate.
Marine Electrical Grounding Application
The Tecnoseal PMSEAGROUND3 is intended for use as part of compatible onboard marine electrical grounding systems.
The appropriate grounding plate should be selected according to the vessel's electrical system design, equipment requirements and applicable marine electrical standards.
Mounting and Installation

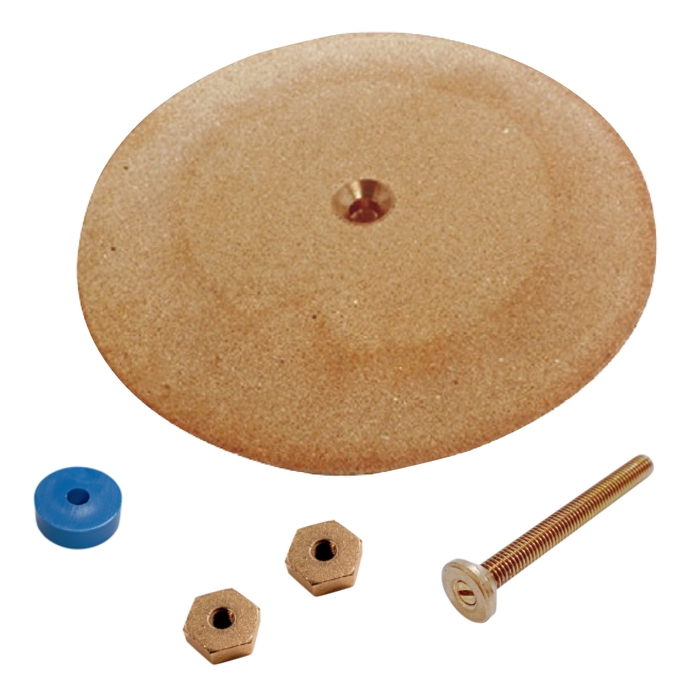

The plate has one centrally positioned mounting hole. The product illustration shows a fastening bolt and associated mounting components.
Before installation, verify the mounting surface, grounding connections and compatibility with the intended electrical system. The central mounting hole diameter is not specified in the available catalogue data.
Installation should follow the recommendations of the electrical equipment manufacturer and applicable marine electrical standards.
Supply: One Tecnoseal PMSEAGROUND3 round porous bronze marine grounding plate.
-
