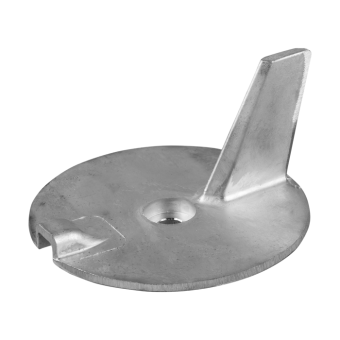

Tecnoseal Selva Manta/Barracuda Trim Tab Anode Ø95 mm

ID 1405059

$ 28.18

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

60 g
90 g
220 g

The Tecnoseal 01913 series includes sacrificial trim tab anodes designed for Selva Manta and Barracuda outboard engines. Each anode features a circular mounting base with an integrated vertical fin, measuring 95 mm in base diameter (Ø) and 55 mm in overall height (h), with a 17 mm mounting recess diameter (Ø1) and a 9 mm mounting hole diameter (Ø2). Available in zinc (01913, 0.22 kg), aluminium (01913AL, 0.09 kg) and magnesium (01913MG, 0.06 kg), these anodes help protect compatible outboard components against galvanic corrosion. The series is also listed under Tecnoseal reference 01141.

Description
Ask a Question

Tecnoseal Selva Manta/Barracuda Trim Tab Anode Ø95 mm

The Tecnoseal 01913 series includes sacrificial trim tab anodes designed for Selva Manta and Barracuda outboard engines. These anodes help protect compatible submerged metallic engine components against galvanic corrosion and are available in zinc, aluminium and magnesium.

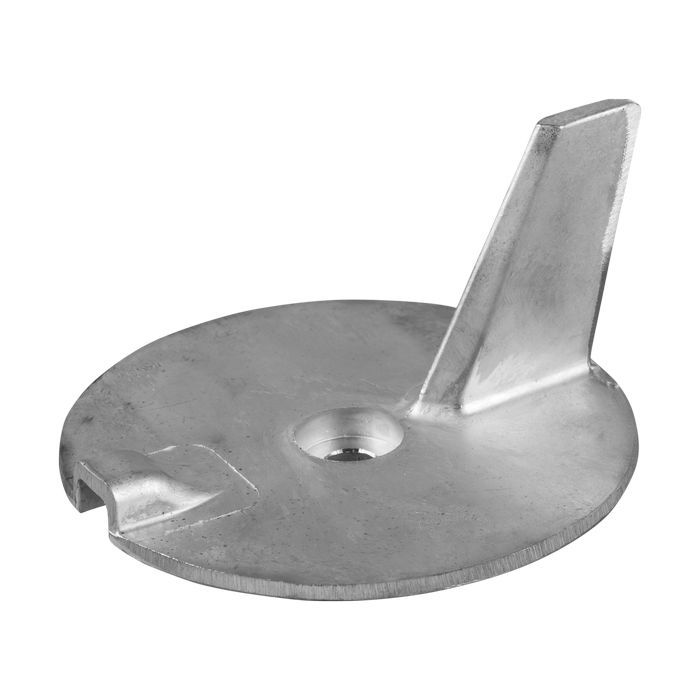

Each anode features a circular mounting base with an integrated vertical fin and a recessed central fixing hole. The base measures 95 mm in diameter, with an overall height of 55 mm. The mounting recess diameter is 17 mm and the through-hole diameter is 9 mm. All three material versions share the same dimensions but have different weights.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
Engine Brand	Selva
Compatible Models	Manta, Barracuda
Available Materials	Zinc, Aluminium, Magnesium
Overall Height (h)	55 mm (2.17 in)
Base Diameter (Ø)	95 mm (3.74 in)
Mounting Recess Diameter (Ø1)	17 mm (0.67 in)
Mounting Hole Diameter (Ø2)	9 mm (0.35 in)

Available Variants

Tecnoseal Code	Material	Weight
01913	Zinc	0.22 kg (0.49 lbs)
01913AL	Aluminium	0.09 kg (0.20 lbs)
01913MG	Magnesium	0.06 kg (0.13 lbs)

Compatibility and References

Engine Manufacturer: Selva
Compatible Models: Manta, Barracuda
Application: Outboard Engine Trim Tab
Zinc Version: Tecnoseal 01913
Aluminium Version: Tecnoseal 01913AL
Magnesium Version: Tecnoseal 01913MG
Same As: Tecnoseal 01141

Key Features

Sacrificial trim tab anode for Selva Manta and Barracuda outboard engines.
Available in zinc, aluminium and magnesium.
Helps protect compatible submerged engine components against galvanic corrosion.
Circular mounting base with integrated vertical fin.
Base diameter: 95 mm.
Overall height: 55 mm.
Mounting recess diameter: 17 mm.
Mounting hole diameter: 9 mm.
Identical dimensions across all three material versions.
Equivalent Tecnoseal reference: 01141.
