The Tecnoseal 00260-1 is a rectangular zinc sacrificial plate anode for marine trim tab (flap) applications, measuring 190 mm (7.48 in) in length, 50 mm (1.97 in) in width and 25 mm (0.98 in) in height. It features two recessed mounting holes spaced 120 mm (4.72 in) centre to centre, with 8.5 mm (0.33 in) through-hole diameters and 14 mm (0.55 in) recess diameters. Weighing 1.62 kg (3.57 lbs), this zinc anode is intended to provide sacrificial galvanic corrosion protection for compatible marine metallic components.
- Description
- Ask a Question
-

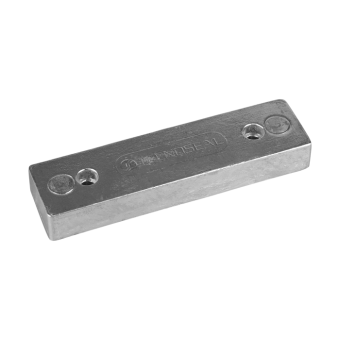

Tecnoseal 00260-1 Rectangular Zinc Trim Tab Anode 190x50x25 mm
The Tecnoseal 00260-1 is a rectangular zinc sacrificial plate anode listed for marine trim tab (flap) applications. It provides a replaceable zinc element intended to help protect compatible metallic components against galvanic corrosion.

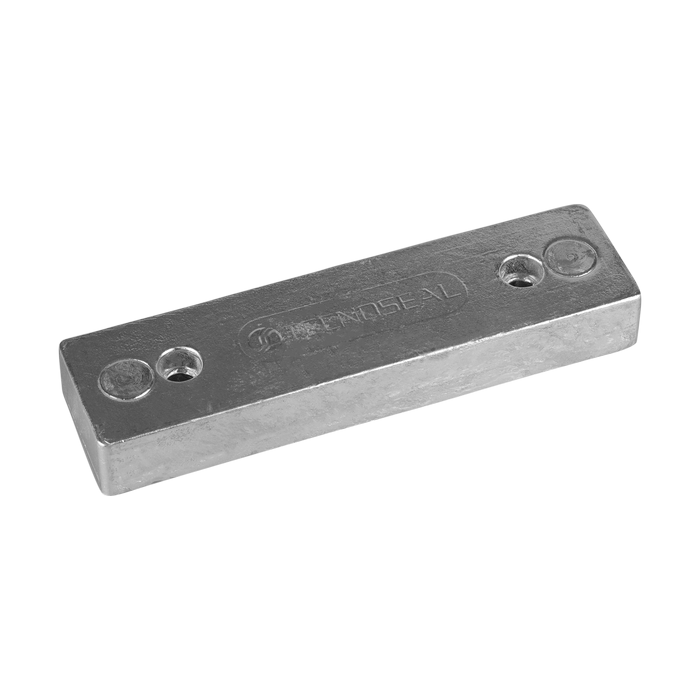

The anode measures 190 mm (7.48 in) in length, 50 mm (1.97 in) in width and 25 mm (0.98 in) in height. Its elongated rectangular body incorporates two recessed mounting holes positioned along the longitudinal axis.
The mounting holes are spaced 120 mm (4.72 in) centre to centre. The through-hole diameter is 8.5 mm (0.33 in), and the recess diameter is 14 mm (0.55 in). The Tecnoseal 00260-1 weighs 1.62 kg (3.57 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00260-1
- Product Type: Rectangular sacrificial plate anode
- Material: Zinc
- Application: Marine trim tabs / flaps
- Shape: Rectangular plate
- Length (l): 190 mm
- Width (a): 50 mm
- Height (h): 25 mm
- Mounting Holes: 2
- Hole Spacing (i): 120 mm
- Through-Hole Diameter (Ø1): 8.5 mm
- Recess Diameter (Ø): 14 mm
- Weight: 1.62 kg / 1620 g
- EAN: 8052744987132
Technical Specifications
Parameter Metric Imperial Length (l) 190 mm 7.48 in Width (a) 50 mm 1.97 in Height (h) 25 mm 0.98 in Mounting Hole Spacing (i) 120 mm 4.72 in Recess Diameter (Ø) 14 mm 0.55 in Through-Hole Diameter (Ø1) 8.5 mm 0.33 in Weight 1.62 kg 3.57 lbs Material Zinc – EAN 8052744987132 –
Rectangular Plate Design and Mounting
The Tecnoseal 00260-1 features an elongated rectangular profile with two recessed mounting holes. The mounting positions are spaced 120 mm apart, measured between their centres.
Each mounting position incorporates an 8.5 mm through-hole and a 14 mm recess diameter, as specified in the manufacturer's technical drawing.
Before ordering, compare the plate dimensions and mounting arrangement with the existing anode.
Marine Galvanic Corrosion Protection
The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when installed with the required electrical contact.
Suitability depends on the operating water conditions, existing cathodic protection arrangement and equipment manufacturer's recommendations.
Inspection and Replacement
Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.
For replacement selection, verify the 190 × 50 × 25 mm dimensions, 120 mm mounting hole spacing and Ø8.5 / Ø14 mm mounting configuration.
Supply: One Tecnoseal 00260-1 zinc sacrificial rectangular plate anode.
-
