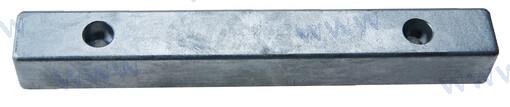

The Tecnoseal 00260-3 is a rectangular zinc sacrificial anode from the Tenderlift series for marine tender lift platforms. It measures 230 mm in length, 30 mm in width and 25 mm in height, with two mounting holes spaced 150 mm centre to centre. The through-hole diameter is 8.5 mm, and the recess diameter is 14 mm. The anode weighs 1.15 kg (2.54 lbs) and is designed to provide corrosion protection for compatible metallic platform components.
- Description
- Ask a Question
-
Tecnoseal 00260-3 Zinc Anode for Tender Lift Platform 230x30x25 mm
The Tecnoseal 00260-3 is a rectangular zinc sacrificial anode from the Tenderlift series, designed for marine tender lift platform applications. It helps protect compatible metallic components against galvanic corrosion.
The anode measures 230 × 30 × 25 mm and features two recessed mounting holes spaced 150 mm apart. Its zinc construction provides a replaceable sacrificial component for compatible marine lifting platforms.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00260-3
- Series: Tenderlift
- Product Type: Rectangular sacrificial plate anode
- Material: Zinc
- Application: Marine tender lift platforms
- Dimensions: 230 × 30 × 25 mm
- Mounting Holes: 2
- Hole Spacing: 150 mm
- Through-Hole Diameter: 8.5 mm
- Recess Diameter: 14 mm
- Weight: 1.15 kg / 1150 g
- EAN: 8058774839403
Technical Specifications
Parameter Specification Product Code 00260-3 Material Zinc Length (l) 230 mm Width (a) 30 mm Height (h) 25 mm Mounting Hole Spacing (i) 150 mm Through-Hole Diameter (Ø) 8.5 mm Recess Diameter (Ø1) 14 mm Weight 1.15 kg / 2.54 lbs EAN 8058774839403
Tender Lift Platform Application
The Tecnoseal 00260-3 is intended for tender lift platforms requiring a rectangular zinc anode with 230 × 30 × 25 mm dimensions and 150 mm mounting hole spacing.
The zinc anode provides sacrificial corrosion protection when correctly installed with electrical contact to the protected metal.
Mounting and Replacement
The anode has two mounting holes with 8.5 mm through-hole diameters and 14 mm recess diameters. The holes are positioned 150 mm apart, measured between their centres.
Before ordering, check the dimensions, mounting hole spacing and hole diameters against the existing anode.
Inspect the anode regularly and replace it when sufficiently consumed.
Supply: One Tecnoseal 00260-3 zinc rectangular plate anode.
-
