The Tecnoseal 00267-2 is a Mitsubishi-type zinc sacrificial square plate anode measuring 75 × 69 × 20 mm. It features one central mounting opening with a 35 mm recess diameter and a 17 × 25 mm oblong through-hole. The anode weighs 0.54 kg (1.19 lbs) and is intended for corrosion protection in compatible marine installations.
- Description
- Ask a Question
-

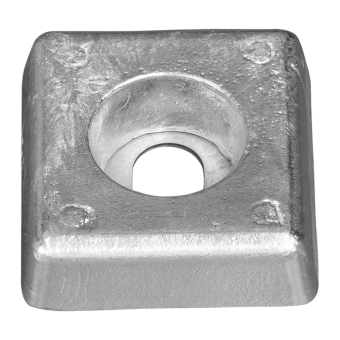

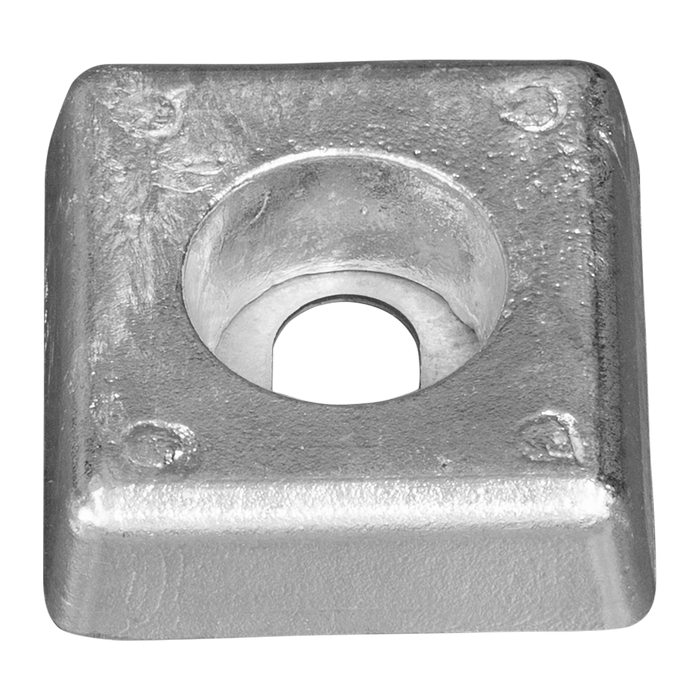

Tecnoseal 00267-2 Mitsubishi Type Zinc Square Plate Anode 75x69x20 mm
The Tecnoseal 00267-2 is a zinc sacrificial square plate anode of the Mitsubishi type. It is designed for compatible marine installations requiring a compact anode with one central recessed mounting opening.
The anode measures 75 × 69 × 20 mm and weighs 0.54 kg (1.19 lbs). Its central mounting arrangement features a 35 mm diameter recess and a 17 × 25 mm oblong through-hole.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00267-2
- Product Type: Square sacrificial plate anode
- Type: Mitsubishi
- Material: Zinc
- Dimensions: 75 × 69 × 20 mm
- Mounting Openings: 1 central opening
- Recess Diameter: 35 mm
- Through-Hole Dimensions: 17 × 25 mm
- Weight: 0.54 kg / 540 g
- EAN: 8052744982076
Technical Specifications
Parameter Specification Tecnoseal Code 00267-2 Material Zinc Length (l) 75 mm / 2.95 in Width (a) 69 mm / 2.72 in Height (h) 20 mm / 0.79 in Recess Diameter (Ø1) 35 mm / 1.38 in Through-Hole Dimensions (Ø2) 17 × 25 mm / 0.67 × 0.98 in Weight 0.54 kg / 1.19 lbs EAN 8052744982076
Mitsubishi Type Mounting
The Tecnoseal 00267-2 has one central recessed mounting opening. The recess measures 35 mm in diameter, while the oblong through-hole measures 17 × 25 mm.
The compact body measures 75 mm in length, 69 mm in width and 20 mm in height. Check the mounting dimensions against the existing anode before ordering.
Corrosion Protection and Replacement
The zinc anode provides sacrificial corrosion protection for compatible metallic marine components when installed with the required electrical contact.
Inspect the anode periodically and replace it when sufficiently consumed. Confirm the anode dimensions and mounting configuration before installation.
Supply: One Tecnoseal 00267-2 zinc square plate anode.
-
