ID
1406202
$ 118.45
1-2 weeks delivery time
-
+
The Tecnoseal 00260-2 is a rectangular zinc sacrificial anode from the Tenderlift series, listed for marine tender lift platform applications. It measures 190 mm in length, 30 mm in width and 15 mm in height, with two 10 mm mounting holes spaced 150 mm centre to centre. Weighing 0.57 kg (1.26 lbs), this anode provides a replaceable zinc element to help protect compatible metallic platform components against galvanic corrosion. The product is also identified in the supplied reference description as an anode for H+B Technics tender lift systems.
- Description
- Ask a Question
-

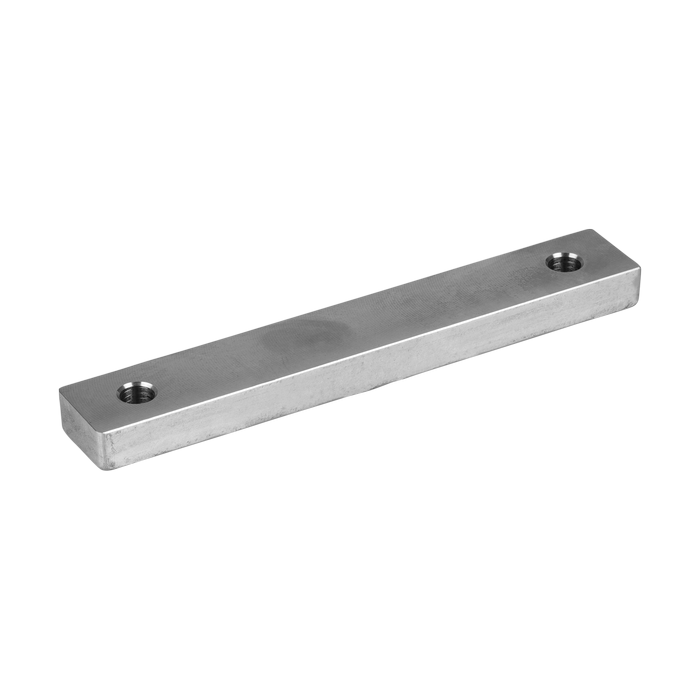

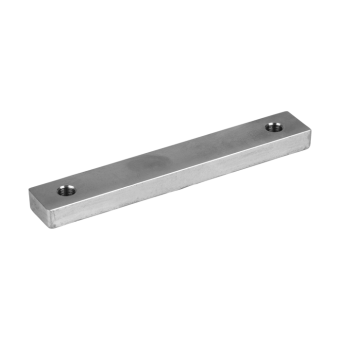

Tecnoseal 00260-2 Zinc Anode for Tender Lift Platform 190x30x15 mm
The Tecnoseal 00260-2 is a rectangular zinc sacrificial plate anode from the manufacturer's Tenderlift series. It is intended for compatible marine tender lift platform installations and is identified in the supplied product reference as an anode for H+B Technics platform tender lift applications.
The anode measures 190 mm in length, 30 mm in width and 15 mm in height. Its elongated rectangular body features two mounting holes with a diameter of 10 mm, spaced 150 mm centre to centre.
Manufactured from zinc, the anode provides a replaceable sacrificial element to help protect electrically connected metallic components against galvanic corrosion. The catalog weight is 0.57 kg (1.26 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00260-2
- Product Series: Tenderlift
- Product Type: Rectangular sacrificial plate anode
- Material: Zinc
- Application: Marine tender lift platforms
- Referenced Application: H+B Technics platform tender lift
- Length (l): 190 mm
- Width (a): 30 mm
- Height (h): 15 mm
- Mounting Holes: 2
- Hole Spacing (i): 150 mm
- Hole Diameter (Ø): 10 mm
- Weight: 0.57 kg / 570 g
- EAN: 8058774835726
Technical Specifications
Parameter Specification Tecnoseal Code 00260-2 Material Zinc Length (l) 190 mm Width (a) 30 mm Height (h) 15 mm Mounting Hole Spacing (i) 150 mm Mounting Hole Diameter (Ø) 10 mm Weight 0.57 kg / 1.26 lbs EAN 8058774835726
Tender Lift Platform Application
The Tecnoseal 00260-2 is designed for installations requiring an elongated rectangular zinc anode with the specified 190 × 30 × 15 mm body and 150 mm mounting hole spacing.
The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of compatible metallic components when installed with the required electrical contact.
Mounting Configuration
The anode incorporates two mounting holes positioned along its longitudinal axis. The centre-to-centre distance is 150 mm, with a specified hole diameter of 10 mm.
Before ordering, compare the dimensions and mounting arrangement against the existing tender lift anode.
Inspection and Replacement
Sacrificial zinc anodes gradually lose material during service. Inspect the anode periodically and replace it when sufficiently consumed.
For replacement selection, confirm the 190 × 30 × 15 mm dimensions, 150 mm hole spacing and 10 mm hole diameter.
Supply: One Tecnoseal 00260-2 zinc rectangular sacrificial plate anode.
-
