The Tecnoseal 01309 is a zinc sacrificial pencil anode specified for Yanmar 6CX-ETE Series marine engines. It measures 20 mm (0.79 in) in diameter and 37 mm (1.46 in) in body length, with a 10 mm (0.39 in) threaded section and an M8 connection. Weighing 0.09 kg (0.19 lbs), the anode provides a replaceable zinc element for corrosion protection of compatible engine cooling system components. The supplied product information also references code 01312 as an alias and indicates a quantity of 12 anodes for the Yanmar 6CX-ETE application.
- Description
- Ask a Question
-

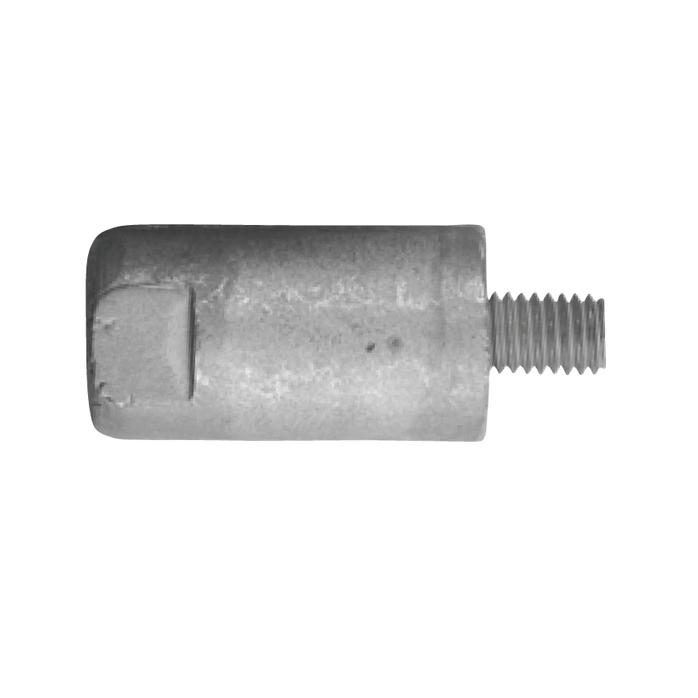

Tecnoseal 01309 Yanmar 6CX-ETE Zinc Pencil Anode Ø20x37 mm M8
The Tecnoseal 01309 is a zinc sacrificial pencil anode designed for Yanmar marine engines, including the 6CX-ETE Series. It helps protect compatible metallic components against galvanic corrosion by providing a replaceable sacrificial zinc element.
The anode features a cylindrical zinc body measuring 20 mm (0.79 in) in diameter and 37 mm (1.46 in) in length. It includes an M8 threaded connection with a specified threaded section length of 10 mm (0.39 in).
Weighing 0.09 kg (0.19 lbs), the Tecnoseal 01309 is intended for periodic replacement during marine engine maintenance.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 01309
- Additional Referenced Code: 01312 (listed as an alias in the supplied product information)
- Product Type: Sacrificial pencil anode
- Material: Zinc
- Application: Yanmar 6CX-ETE Series marine engines
- Diameter (Ø): 20 mm
- Body Length (l): 37 mm
- Threaded Section Length (l1): 10 mm
- Thread Size (b): M8
- Weight: 0.09 kg / 90 g
Technical Specifications
Parameter Specification Product Code 01309 Material Zinc Diameter (Ø) 20 mm / 0.79 in Body Length (l) 37 mm / 1.46 in Threaded Section Length (l1) 10 mm / 0.39 in Thread Size (b) M8 Weight 0.09 kg / 0.19 lbs Engine Application Yanmar 6CX-ETE Series
Yanmar 6CX-ETE Engine Application
The Tecnoseal 01309 is specified for Yanmar 6CX-ETE Series marine engines. The supplied application information indicates 12 anodes (x12) for this engine series.
Before ordering replacements, confirm the required quantity, mounting locations and compatibility with the engine manufacturer's maintenance documentation.
Dimensions and Thread Connection
The anode features a 20 mm diameter cylindrical body with a length of 37 mm. Its threaded section measures 10 mm in length and uses an M8 connection.
When selecting a replacement, compare the anode dimensions and threaded connection with the original component.
Corrosion Protection and Maintenance
The zinc material acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when installed with the required electrical contact.
The anode gradually loses material during service and should be inspected and replaced according to the applicable Yanmar maintenance requirements.
Supply: One Tecnoseal 01309 zinc pencil anode. The referenced x12 engine application quantity does not indicate that 12 pieces are supplied together.
-
