The Tecnoseal 00102VET is a zinc sacrificial anode designed for H+B Technics hydraulic platform tender lift systems. It features a circular body measuring 100 mm (3.94 in) in diameter and 20 mm (0.79 in) in height, with an M8 central threaded mounting connection. Weighing 1.10 kg (2.43 lbs), this replacement anode provides sacrificial corrosion protection for compatible metallic components of the platform lifting system.
- Description
- Ask a Question
-

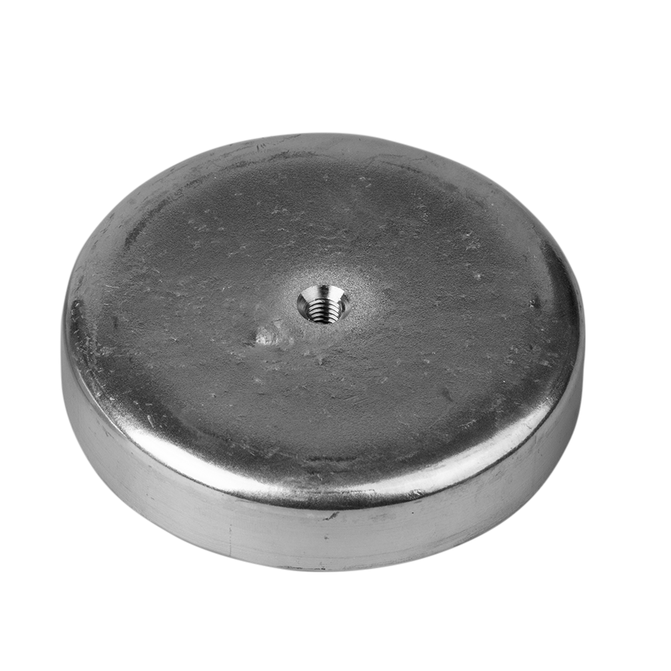

Tecnoseal 00102VET H+B Technics Platform Tender Lift Zinc Anode Ø100 mm M8
The Tecnoseal 00102VET is a zinc sacrificial anode designed for H+B Technics platform tender lift systems. It provides corrosion protection for compatible metallic components of marine hydraulic lifting platforms.
The anode features a circular zinc body with an outside diameter of 100 mm (3.94 in) and a height of 20 mm (0.79 in). Its central M8 threaded mounting connection allows attachment to the corresponding platform lift assembly.
Weighing 1.10 kg (2.43 lbs), the Tecnoseal 00102VET is intended as a replacement sacrificial anode for compatible H+B Technics equipment.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00102VET
- Product Type: Platform tender lift sacrificial anode
- Material: Zinc
- Application: H+B Technics platform tender lift
- Shape: Circular plate
- Outside Diameter (Ø): 100 mm
- Height (h): 20 mm
- Central Mounting (Ø1): M8
- Weight: 1.10 kg / 1100 g
- EAN: 8052744980546
Technical Specifications
Parameter Specification Product Code 00102VET Material Zinc Outside Diameter (Ø) 100 mm / 3.94 in Height (h) 20 mm / 0.79 in Mounting Connection (Ø1) M8 Weight 1.10 kg / 2.43 lbs Application H+B Technics Platform Tender Lift EAN 8052744980546
H+B Technics Platform Tender Lift Application
The Tecnoseal 00102VET is designed for H+B Technics marine platform lifting systems used for tender handling.
Its zinc body acts as a sacrificial element, helping reduce galvanic corrosion of associated metallic components when correctly installed with the required electrical contact.
Mounting and Dimensions
The anode has a 100 mm outside diameter and a 20 mm height. A central M8 threaded connection provides the specified mounting arrangement.
Before ordering, compare the dimensions, mounting thread and existing anode configuration with the applicable H+B Technics equipment specifications.
Inspection and Replacement
The zinc material gradually loses mass while providing sacrificial corrosion protection. Periodic inspection helps determine when the anode requires replacement.
Replacement should follow the relevant platform lift maintenance instructions and ensure secure attachment and electrical continuity to the protected component.
Supply: One Tecnoseal 00102VET zinc sacrificial anode for compatible H+B Technics platform tender lift systems.
-
