Tecnoseal Lombardini Pencil Anode Ø15 × 30 mm with Optional M18×1.5 Brass Plug

Name: Tecnoseal Lombardini Pencil Anode Ø15 × 30 mm with Optional M18×1.5 Brass Plug
SKU: Tecnoseal 02353
Rating: 5 (1 reviews)

ID 1404430

$ 49.18

1-2 weeks delivery time

Type:

Complete with Brass Plug
Brass Plug Only
Zinc Anode Only

Item:

80 g
40 g

The Tecnoseal 02353 Series consists of a zinc pencil anode and matching brass plug components for Lombardini marine engines. Three configurations are available: 02353 zinc anode only, weighing 0.04 kg (40 g); 02353T complete zinc anode with brass plug, weighing 0.08 kg (80 g); and 02353TP brass plug only, weighing 0.04 kg (40 g). The zinc anode measures 15 mm in diameter and 30 mm in length, with an 8 mm end section (l1) and a 10 mm dimension (b). The matching brass plug features an M18×1.5 metric thread and a 24 mm dimension (c). The brass plug 02353TP is also listed under reference 02010TP/99. The complete assembly provides sacrificial corrosion protection for compatible Lombardini engine components.

Description
Ask a Question

Tecnoseal Lombardini Pencil Anode Ø15 × 30 mm with Optional M18×1.5 Brass Plug – 02353 Series

The Tecnoseal 02353 Series includes a zinc pencil anode and matching brass plug components designed for Lombardini marine engines. The zinc anode provides sacrificial corrosion protection for compatible metallic engine components, while the brass plug serves as its mounting component. Three configurations are available: anode only (02353), complete anode with brass plug (02353T), and brass plug only (02353TP).

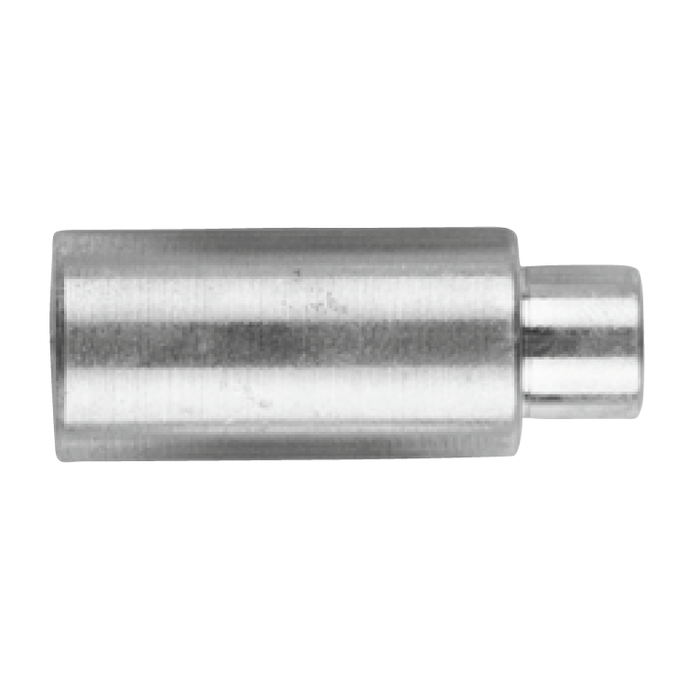

The pencil anode measures 15 mm in diameter and 30 mm in length, with an 8 mm end section (l1) and a 10 mm dimension (b). The matching brass plug features an M18×1.5 metric thread, a 10 mm dimension (b) and a 24 mm dimension (c). Each component can be selected according to whether the existing anode, brass plug or complete assembly requires replacement.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	02353
Product Type	Pencil Anode and Brass Plug Components
Application	Lombardini Marine Engines
Anode Material	Zinc
Plug Material	Brass
Plug Thread	M18×1.5
Available Configurations	Anode Only, Complete with Brass Plug, Brass Plug Only

Available Versions

Tecnoseal Part Number	Configuration	Material	Weight
02353	Anode Only	Zinc	0.04 kg (0.09 lbs)
02353T	Complete with Brass Plug	Zinc / Brass	0.08 kg (0.18 lbs)
02353TP	Brass Plug Only	Brass	0.04 kg (0.09 lbs)

Dimensions and Connections

Specification	02353	02353T	02353TP
Anode Diameter (Ø)	15 mm (0.59")	15 mm (0.59")	–
Anode Length (l)	30 mm (1.18")	30 mm (1.18")	–
End Section (l1)	8 mm (0.31")	8 mm (0.31")	–
Dimension (b)	10 mm (0.39")	10 mm (0.39")	10 mm (0.39")
Brass Plug Thread (a)	–	M18×1.5	M18×1.5
Plug Dimension (c)	–	24 mm (0.94")	24 mm (0.94")
